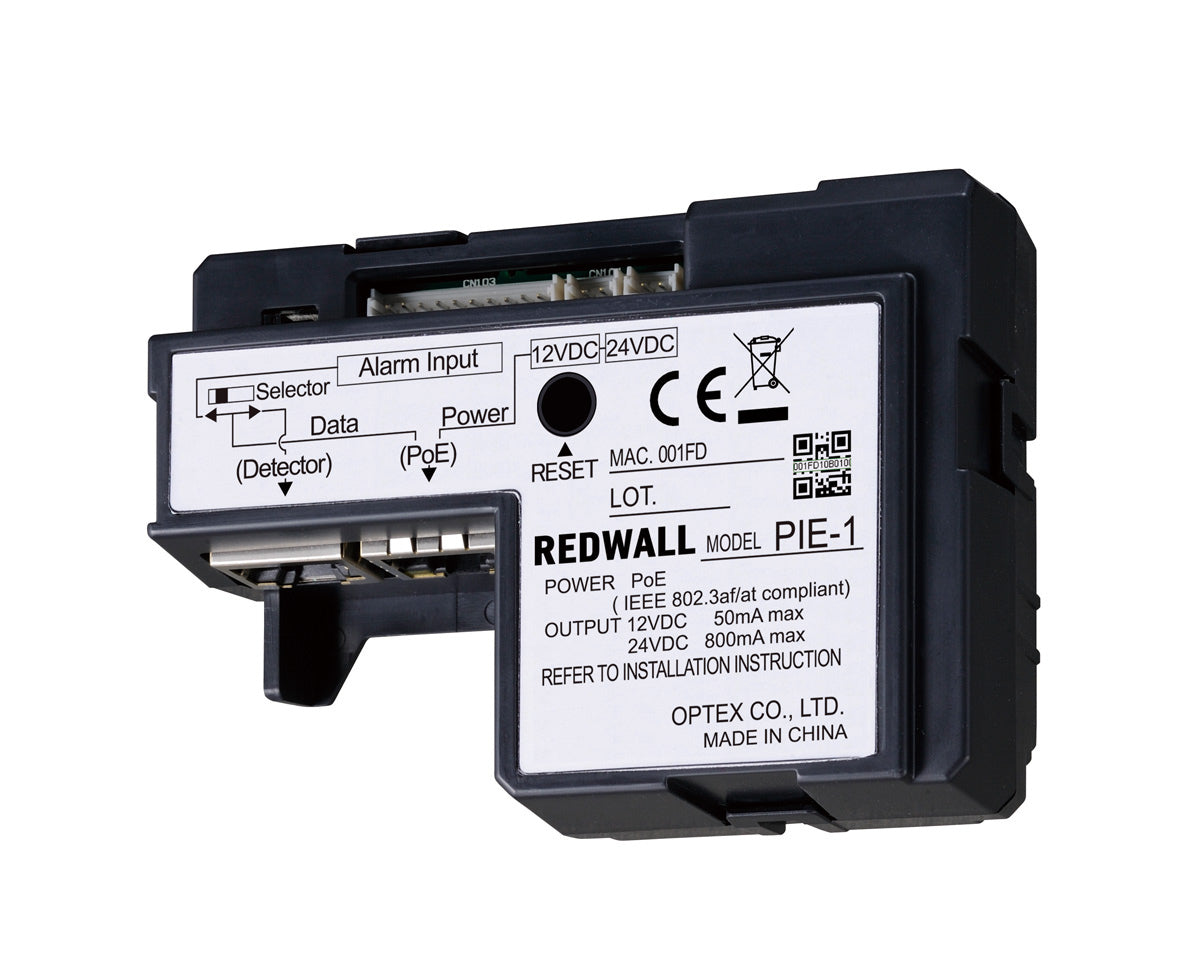

Optex PIE-1 PoE IP Encoder, 5 Dry Contact Inputs (N.C. only), Redwall Event Code Output
About this product
The Optex PIE-1 is a PoE IP encoder that converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall and Fiber SenSys detectors; with the PIE-1, detectors can be connected to Video Management Software platforms and control IP cameras. It is powered over Ethernet (IEEE802.3 af/at) from a PoE hub or switch, and only one LAN cable is needed to connect it.
Key features
- Converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall and Fiber SenSys detectors
- 5 inputs for dry contacts (N.C. only)
- Alarm output: Redwall Event Code (UDP / TCP)
- Power supply: PoE (IEEE802.3af/at compliant)
- Only one LAN cable needed to connect to a PoE hub or switch
- Power output: 24 VDC 800 mA max, 12 VDC 50 mA max
- Place of use: outdoor (inside of the waterproof case)
- Function setting using a web browser
Frequently asked questions
How is the Optex PIE-1 powered?
By PoE (IEEE802.3af/at compliant) from a PoE hub or switch. Only one LAN cable is needed to connect it.
Which detectors does the PIE-1 work with?
It converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall and Fiber SenSys detectors.
How many alarm inputs does the PIE-1 have?
5 inputs for dry contacts (N.C. only).
Can the PIE-1 be installed outdoors?
Its place of use is outdoor, inside of the waterproof case, with an operating temperature of -40 to +60˚C.
What does the video management software do with the event code?
Video Management Software receives the event code and sends a command to reposition to a pre-set and/or start recording with a camera.
How is the PIE-1 configured?
Function setting is done using a web browser.
Specifications
Specifications
| Brand | Optex |
|---|---|
| Model | PIE-1 |
| Manufacturer Part Number (MPN) | PIE-1 |
| Power supply | PoE (IEEE802.3af/at compliant) |
| Power output | 24 VDC 800 mA max, 12 VDC 50 mA max |
| Signal input | 5 input for dry contacts (N.C. only) |
| Alarm output | Redwall Event Code (UDP / TCP) |
| Place of use | Outdoor (Inside of the waterproof case) |
| Operating temperature | -40 to +60˚C |
| Operating humidity | 95%RH. max |
| Operation LED (Normal) | Green light is ON when the power is supplied by PoE |
| Operation LED (When communicating) | Yellow light blinks during communication |
| Switch | Ethernet converter / LAN through |
| Function setting | Use web browser |
| Supported protocols | IPv4, ARP, UDP, TCP, ICMP, HTTP |
| Dimension | 67.5 mm x 94.7 mm x 33 mm |
| Weight | 270 g (including all parts); Main unit: 90 g |
| Accessories | Power output cable x2, Alarm input cable x3, Installation instruction, Mounting plate for a Double Gang Box, Gasket sheet for Gang Box, Mounting Screws x6 |
