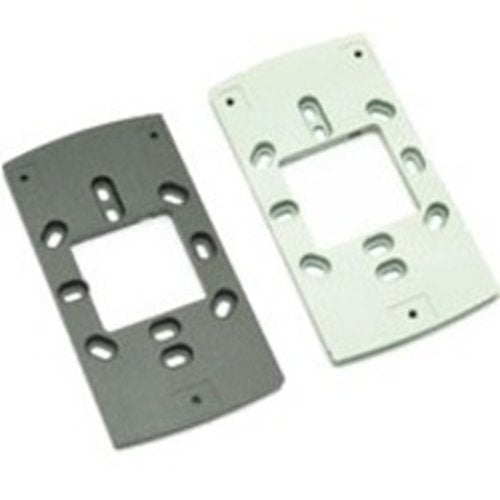

Paxton Access 310-750 backbox adaptor kit, White
About this product
Paxton Access 310-750 is a backbox adaptor kit from the 75 range.
About – The adapter allows any 75mm Paxton reader to be mounted to a standard UK electrical back box. Compatible Readers: Proximity P75 reader, Proximity KP75 keypad, Compact Touchlock K75 keypad, Compact Touchlock K75 stainless steel keypad. The adapter also fits 75mm readers from the Compact range.
Installation – The adapter is mounted to a standard back box using the fixing screws provided. The 75mm reader is then mounted onto the adapter using the fitting kit provided.
Key features
- Use with any 75mm Paxton Access reader
- Fits onto standard UK electrical backboxes
- Supplied in both black and white
- Ideal for screw connector readers/keypads
If you are matching this to an existing installation, work from the 310-750 part number rather than the description.
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 310-750 |
| Product Series | 75 |
| Product Type | Mounting Plate |
Technical information
| Device Supported | Mounting Box |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 0.80cm |
| Height | 142.00mm |
| Width | 75.00mm |
Miscellaneous
| Compatibility | Paxton Access Mounting Box for: Proximity P75 Reader Proximity KP75 Keypad TOUCHLOCK K75 Keypad TOUCHLOCK K75 Stainless Steel Keypad |
|---|
Attributes
| Compatibility | Paxton Access Mounting Box for: Proximity P75 Reader; Proximity KP75 Keypad; TOUCHLOCK K75 Keypad; TOUCHLOCK K75 Stainless Steel Keypad |
|---|---|
| Device Supported | Mounting Box |
| Package Contents | Label - Tech Support International; Label - Void if Seal is Broken, 80x30mm , Plastic - Backbox UK Adaptor 75mm, Black; Plastic - Backbox UK Adaptor 75mm, White; Fitting Kit - 75 Series Backbox Adaptor; Label - Product Serial Number Label 27x10mm |
