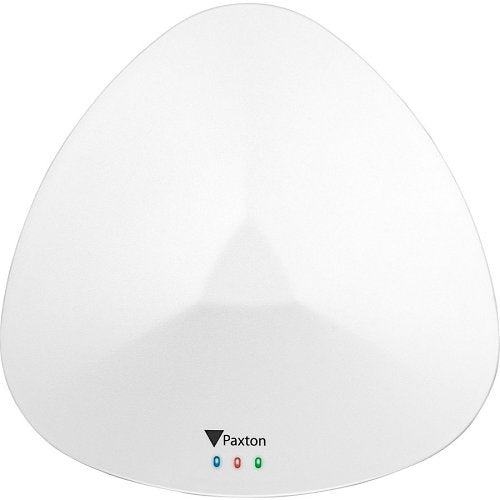

Paxton Access 477-600 bridge, Wall Mount

Visit Access Control Accessories
Free Delivery
£ 162 66
(Incl. VAT)

About this product

Paxton Access 477-600 is a bridge.

About – The Net2Air Bridge uses Paxton’s Net2Air wireless technology to communicate with the Net2 software. The Net2Air Bridge provides the wireless communication link between the PC running Net2 and wireless control units such as the Paxlock Pro or Net2 Nano. The Bridge uses a site’s LAN which means that multiple Net2Air Bridges can be placed around a site and linked back to the PC.Installation – The unit plugs into the LAN/WAN by means of a standard RJ45 network connection, or connected to a PoE injector or switch port.

Run the Net2 server configuration program to register the bridge. The Net2 software will include the bridge in its list of ports to be monitored. We recommend 10 wireless control units per bridge.Operation – Once plugged in, the Net2Air Bridge provides the communication between the Net2 nano control units and the PC.

Key features

  • Plugs into the existing LAN/WAN
  • Power over Ethernet (PoE)
  • Wireless bridge from Net2 to wireless control units
  • Multiple Net2Air Bridges can be placed around a site
  • Gives more flexibility on installing wireless control units
£ 162 66
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£162.66 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Paxton Access
Manufacturer Part Number
477-600
Product Type
Net2Air Bridge
General information
Application/Usage
Access Control
Technical information
Frequency Band
2.40GHz
Power Consumption
15.4000W
Physical characteristics
Depth
33.00mm
Form Factor
Wall Mount
Height
162.60mm
Width
162.60mm
Product information
Diameter
4.00mm
Mount Type
Wall Mount
Wireless specifications
Encryption Standard
AES (128-bit)
Miscellaneous
Compatibility
Paxton Access Control Units: Net2 nano PaxLock paxlock pro
Features
LED Indicator, PoE
Package Contents
Net2Air Bridge Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS Wireless Connector/Air Bridge - Fitting Kit MKIII Bridge - US Fitting Kit , Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE MKIII Air Bridge - Assembly EU , Wireless Connector/Air Bridge - Packaging - Box Insert MKIII Air Bridge - Packaging - Outer Box Label - Product Serial Number Label 27x10mm Label - Void If Seal Is Broken, 80x30mm
Attributes
Compatibility
Paxton Access Control Units: Net2 nano; PaxLock; paxlock pro
Package Contents
Net2Air Bridge Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS Wireless Connector/Air Bridge - Fitting Kit MKIII Bridge - US Fitting Kit , Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE MKIII Air Bridge - Assembly EU , Wireless Connector/Air Bridge - Packaging - Box Insert MKIII Air Bridge - Packaging - Outer Box Label - Product Serial Number Label 27x10mm Label - Void If Seal Is Broken, 80x30mm
Specifications
General information
Technical information
Physical characteristics
Product information
Wireless specifications
Miscellaneous
Attributes

Specifications

Brand Name Paxton Access
Manufacturer Part Number 477-600
Product Type Net2Air Bridge

General information

Application/Usage Access Control

Technical information

Frequency Band 2.40GHz
Power Consumption 15.4000W

Physical characteristics

Depth 33.00mm
Form Factor Wall Mount
Height 162.60mm
Width 162.60mm

Product information

Diameter 4.00mm
Mount Type Wall Mount

Wireless specifications

Encryption Standard AES (128-bit)

Miscellaneous

Compatibility Paxton Access Control Units: Net2 nano PaxLock paxlock pro
Features LED Indicator, PoE
Package Contents Net2Air Bridge Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS Wireless Connector/Air Bridge - Fitting Kit MKIII Bridge - US Fitting Kit , Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE MKIII Air Bridge - Assembly EU , Wireless Connector/Air Bridge - Packaging - Box Insert MKIII Air Bridge - Packaging - Outer Box Label - Product Serial Number Label 27x10mm Label - Void If Seal Is Broken, 80x30mm

Attributes

Compatibility Paxton Access Control Units: Net2 nano; PaxLock; paxlock pro
Package Contents Net2Air Bridge Fasteners - 6-32 x 1 Pan Head Cross Recess US Socket Screw, SS Wireless Connector/Air Bridge - Fitting Kit MKIII Bridge - US Fitting Kit , Sales Code Label, 40x25mm, ULc ITE, FCC IC ID, CE MKIII Air Bridge - Assembly EU , Wireless Connector/Air Bridge - Packaging - Box Insert MKIII Air Bridge - Packaging - Outer Box Label - Product Serial Number Label 27x10mm Label - Void If Seal Is Broken, 80x30mm

Paxton Access 477-600 bridge for hubs routers and switches

Paxton Access 477-600 bridge, Wall Mount

Who this is for

For the installer — this is the bridge supplied under Paxton Access part number 477-600. Specify it by that part number.

In plain English: this is a bridge made by Paxton Access. The part number 477-600 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this bridge is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact bridge I have been quoted? Check the manufacturer part number 477-600 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Paxton Access 477-600 bridge for hubs routers and switches
Paxton Access

Paxton Access 477-600 bridge, Wall Mount

£162.66

Paxton Access 477-600 is a bridge.

About – The Net2Air Bridge uses Paxton’s Net2Air wireless technology to communicate with the Net2 software. The Net2Air Bridge provides the wireless communication link between the PC running Net2 and wireless control units such as the Paxlock Pro or Net2 Nano. The Bridge uses a site’s LAN which means that multiple Net2Air Bridges can be placed around a site and linked back to the PC.Installation – The unit plugs into the LAN/WAN by means of a standard RJ45 network connection, or connected to a PoE injector or switch port.

Run the Net2 server configuration program to register the bridge. The Net2 software will include the bridge in its list of ports to be monitored. We recommend 10 wireless control units per bridge.Operation – Once plugged in, the Net2Air Bridge provides the communication between the Net2 nano control units and the PC.
