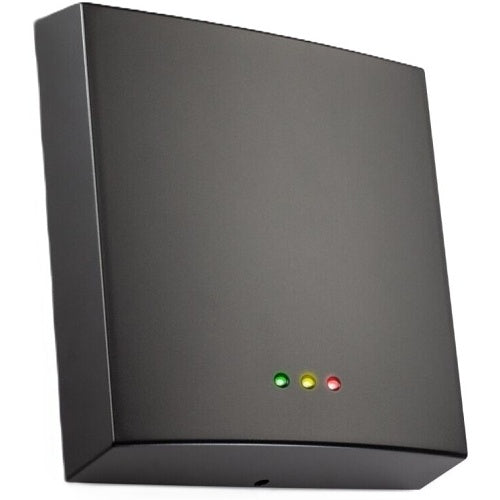

Paxton Access 324-110 card reader access device, Black
About this product
Paxton Access 324-110 is a card reader access device from the P range.
About – P series readers are for use with Switch2 and Net2 systems. The readers are supplied with a choice of black or white fascias. Other colours are available.
P series readers are available in four sizes.We have added Genuine HID Technology to the majority of our readers, they can now read HID 125kHz Proximity tokens, when licensed with an activation card. If required these readers can still be enabled to have Wiegand output, via a separate activation card.Installation – The reader is wired as shown on the control unit label. Be sure to avoid mounting on metal surfaces or near other proximity readers as this will affect the read range.
The cable exits centrally from the back of the reader making drilling and mounting very accurate.Operation – A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate.
If access is granted the green LED flashes. If access is denied the red LED flashes.
Key features
- Use with Switch2 or Net2
- Range up to 100mm with Proximity cards
- Low profile - less than 16mm deep
- Simple mounting
- Black or white fascias
- 4 sizes
If you are matching this to an existing installation, work from the 324-110 part number rather than the description.
Specifications
General information
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 324-110 |
| Product Series | P |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Host Interface | RJ-45 |
| Identification Method | Contactless Card (RFID/Proximity) |
| Maximum Operating Range | 2500.00mm |
| Number of Doors | 1 |
| Number of Users | 2000 |
| Operating Range | 100mm |
Interfaces/ports
| Wiegand | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 40.00mm |
| Height | 200.00mm |
| Width | 200.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Indoor or outdoor use | Outdoor |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | Label - product serial number label 27x10mm; Label - Tech support international; Label - Void if seal is broken, 80x30mm; Sales Code label, 40x25mm, Paxton EX, CE, Ctick; P200 proximity reader module 2nd, Plastic - proximity base housing P200E; Plastic - proximity reader clip on cover P200E - Black; Fitting kit - P200; Packaging - box OD 242x230x45mm multi-housing (mch) |
