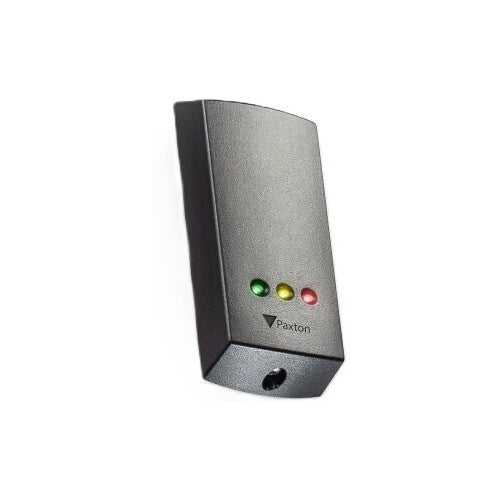

Paxton Access 339-111 card reader access device, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Paxton Access 339-111 is a card reader access device.
About – The universal reader is suitable for use with most access control systems that accept a clock and data input, as well as PAC controllers that use a single signal wire. The reader is supplied with a choice of black or white fascias. Additional fascia colours are available if required.
Installation – The reader is wired as shown in the installation instructions. The cable exits centrally from the back of the reader, making drilling and mounting very accurate. Operation – A token is read by holding it close to the reader.
Once a token has been read, the card data is sent to the control unit and, depending on the wiring configuration, the red, green or amber LEDs can be used to indicate valid or invalid cards.
Key features
- Use with Paxton Access Net2 and other access control systems
- Clock and data output
- Low profile - less than 16mm deep
- IPX7 rated - suitable for external use
- Reads multiple technologies, Hitag2, EM4100 and PAC
If you are matching this to an existing installation, work from the 339-111 part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 339-111 |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|
Technical information
| Identification Method | Contactless Card (RFID/Proximity) |
|---|---|
| Number of Doors | 1 |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 12.50mm |
| Height | 78.00mm |
| Width | 38.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Package Contents | Packaging - box OD 190x175x55mm readers (ne3) Label - product serial number label 27x10mm Label - Tech support international Label - Void if seal is broken, 80x30mm , Plastic - Proximity reader clip on cover 38mm - Black Plastic - Proximity reader clip on cover 38mm - White Fitting kit - P38 Packaging - box insert - readers for icc-bx01 (rki) , Sales code label, 27x20mm, Paxton, EU, CE, Unharmonised Proximity reader 38mm 153 kHz, clock and data |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | Packaging - box OD 190x175x55mm readers (ne3) Label - product serial number label 27x10mm Label - Tech support international Label - Void if seal is broken, 80x30mm , Plastic - Proximity reader clip on cover 38mm - Black Plastic - Proximity reader clip on cover 38mm - White Fitting kit - P38 Packaging - box insert - readers for icc-bx01 (rki) , Sales code label, 27x20mm, Paxton, EU, CE, Unharmonised Proximity reader 38mm 153 kHz, clock and data |
