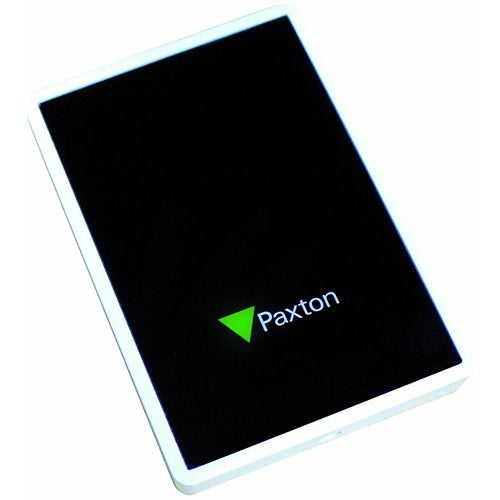

Paxton Access 371-125 card reader access device, Black
About this product
Paxton Access 371-125 is a card reader access device.
About – Proximity backbox readers are for use with Switch2 and Net2 systems. The reader fits standard electrical backboxes, providing a neat installation option for new buildings and refurbishments. The backbox reader is designed for internal use only.
Installation – The backbox reader is supplied with rising clamp terminals at the rear. The reader cable connects the reader to the control unit. Both the reader and control unit are clearly labelled.
The reader is mounted to a standard backbox using the fixing screws provided. Operation – A token is read by holding it close to the reader. Once a token has been read, the control unit checks the access permissions of that user.
Access is then granted or denied as appropriate. If access is granted, the LED flashes green. If access is denied, the LED flashes red.
Key features
- Multi-format reader
- Reads MIFARE and Net2 tokens
- Hands free compatible
- Connections for pre-installed cable on the back of the reader
- A neat solution for interior use on a new build or refitted buildings
- Available in black or white finish
If you are matching this to an existing installation, work from the 371-125 part number rather than the description.
Specifications
General information
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 371-125 |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Identification Method | Contactless Card (RFID/Proximity) |
|---|---|
| Operating Range | 800mm |
Interfaces/ports
| Wiegand | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 18.00mm |
| Height | 125.00mm |
| Width | 87.00mm |
Power description
| Input Voltage | 14V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | Paxton Control Systems: Switch2 Net2 systems |
|---|
Attributes
| Compatibility | Paxton Control Systems: Switch2; Net2 systems |
|---|---|
| Input Voltage | 14V DC |
| Package Contents | Backbox Reader Backplate; Fitting kit - Backbox Reader; Packaging - Box Insert - BB Readers for icc-bx01 (bbr); Packaging - Box OD 190x175x55mm Readers (ne3) , Label - Wiring Label for Multi-Format Backbox Reader; Label -Product Serial Number Label 27x10mm; Label - Tech Support International; Label - Void if Seal is Broken, 80x30mm , Sales Code Label, 27x20mm, Paxton EU, CE; Backbox Reader Cover Assembly; Backbox Reader |
Paxton Access 371-125 card reader access device, Black
