Paxton Access 010-403 door access control panel, Wall Mount

Visit Access Control Systems
Free Delivery
£ 343 73
(Incl. VAT)

About this product

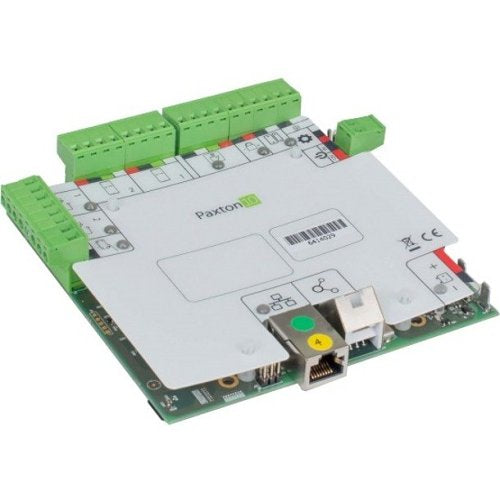

Paxton Access 010-403 is a door access control panel.

About Paxton10 Door Controllers are the building blocks of the Paxton10 system. Each provides control of a single door and a port to support up to three Paxton10 connectors for additional functionality. A single Paxton10 system can include up to 1000 door controllers.

The Paxton10 door controller is a network device that communicates over TCP/IP and can be integrated into an existing network infrastructure. PoE+ – The Paxton10 PoE+ Door Controller features a built-in PoE+ splitter, allowing the door controller and door lock to be powered via PoE+, so no 230v connection is required at the door. We recommend using a TCP/IP network switch with PoE+ output.

It is also possible to install a backup battery in the Paxton10 PoE+ Door Controller for extra backup in case of power failure; we recommend placing the switch behind a UPS. The door controller is equipped with 4 inputs: tamper, 230v fail, door contact, and RTE. An intruder alarm can be integrated using the Paxton10 alarm connector.

Mains and Power over Ethernet (PoE) powered options are also available. This product is also available in a plastic enclosure. Installation – The wiring label on the Paxton10 Door Controller clearly shows colour-coded connections for the readers, power supply, lock, etc.

The 12v output for the lock can be used to control any door, barrier, or gate. Diagnostic LEDs indicate the status of the controller and its inputs and outputs. Controllers connect directly to the network via TCP/IP and are automatically visible in the Paxton10 software under the devices menu.

Operation – Any changes made in the Paxton10 software are immediately communicated to the door controller. When a user presents their token to the reader, the control unit identifies them and permits or denies access as appropriate.

Key features

  • Controls a single door and provides additional I/O for general use
  • Distributed intelligence architecture, no central point of failure
  • Connector port to cascade up to three Paxton10 connectors
  • Two reader inputs for read in/read out control
  • 12V lead acid battery back up option

If you are matching this to an existing installation, work from the 010-403 part number rather than the description.

£ 343 73
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£343.73 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Paxton Access
Manufacturer Part Number
010-403
Product Type
Door Access Control Panel
General information
Application/Usage
Door
Technical information
Number of Doors
10
Number of Relays Supported
2
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Network & communication
Communication Technology
IP
Ethernet
Yes
Physical characteristics
Depth
77.00mm
Height
322.00mm
Width
236.00mm
Power description
Input Voltage
12V DC
Product information
Mount Type
Wall Mount
Miscellaneous
Environmental certification
WEEE
Attributes
Environmental status
Yes
Input Voltage
12V DC
Specifications
General information
Technical information
Certifications
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Paxton Access
Manufacturer Part Number 010-403
Product Type Door Access Control Panel

General information

Application/Usage Door

Technical information

Number of Doors 10
Number of Relays Supported 2

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Network & communication

Communication Technology IP
Ethernet Yes

Physical characteristics

Depth 77.00mm
Height 322.00mm
Width 236.00mm

Power description

Input Voltage 12V DC

Product information

Mount Type Wall Mount

Miscellaneous

Environmental certification WEEE

Attributes

Environmental status Yes
Input Voltage 12V DC

Paxton Access 010-403 door access control panel

Paxton Access 010-403 door access control panel, Wall Mount

Who this is for

For the installer — this is the door access control panel supplied under Paxton Access part number 010-403. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a door access control panel made by Paxton Access. The part number 010-403 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this door access control panel is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact door access control panel I have been quoted? Check the manufacturer part number 010-403 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 010-403 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
