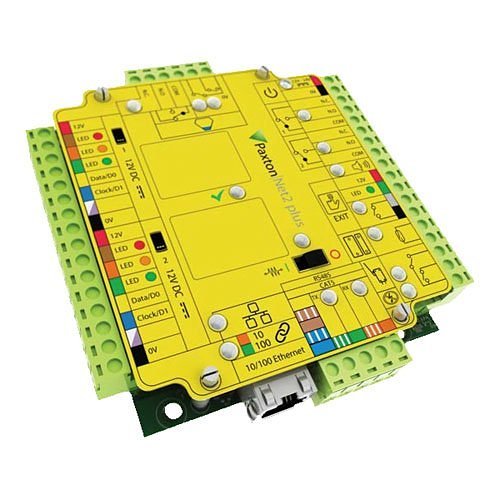

Paxton Access 682-493 door access control panel
About this product
Paxton Access 682-493 is a door access control panel.
About – Net2 is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users’ access. Each control unit is part of a network but can run independently making its own decisions and remembering events.
The Net2 plus control unit connects to the central administration PC using an RJ45 plug into a standard TCP/IP Ethernet network. This greatly increases the flexibility of installation options on sites that have LAN/WAN networks. The Net2 plus control unit also has a RS485 connection.
This means it can be connected to other Net2 plus or Net2 classic control units using a dedicated CAT5 cable. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is also available with a Power over Ethernet (PoE) power supply.
PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a compatible PoE switch or a PoE injector). Net2 Plus is supplied as a PCB only or in a cabinet with or without a power supply.
Both metal and plastic cabinets are available, with a 2A or PoE+ power supply. Both metal and plastic cabinets are available, with a 2A (battery backup recommended) or PoE+ (UPS recommended) power supply. Installation – A label on the Net2 plus control unit clearly shows color coded connections for reader, power supply etc.
The unit has a voltage free relay and so can switch any lock or electrical device. Exit buttons, door contacts, tamper switches and alarm devices may be connected. Control units communicate to the PC via the standard TCP/IP protocol of a LAN.
The Net2 plus control unit should be given a fixed/static IP address. All configuration of the unit is done using the Net2 Configuration Utility. There are diagnostic LEDs mounted close to their relevant terminals to assist with trouble free installation.
End of line resistors can be switched into the circuit as required. External terminating resistors are not required. Operation – Any changes made at the PC are immediately communicated and stored at the control unit.
When a user presents their token to the reader, the control unit identifies them and permits or denies access as appropriate.
Key features
- Single door networkable access control unit
- Features a built in TCP/IP converter
- Use Paxton or 3rd party readers
- Plug into a TCP/IP network using a RJ45 plug
- Different control units can be mixed on a site
- FLASH memory allows easy upgrades
If you are matching this to an existing installation, work from the 682-493 part number rather than the description.
-
Download
- 682-493 — Product Manual
Specifications
General information
Technical information
Certifications
Network & communication
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 682-493 |
| Product Type | Door Access Control Panel |
General information
| Application/Usage | Door |
|---|
Technical information
| Identification Method | Contactless Card (RFID/Proximity), PIN/Passcode |
|---|---|
| Number of Doors | 1 |
| Number of Events Log | 2500 |
| Number of Users | 50000 |
| User Code Storage | 50 |
Certifications
| Certifications & Standards | CE |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Compliant |
Network & communication
| Communication Technology | Ethernet, IP, RS-485, TCP/IP |
|---|---|
| Ethernet | Yes |
Physical characteristics
| Depth | 25.00mm |
|---|---|
| Height | 126.00mm |
| Width | 116.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Miscellaneous
| Package Contents | Connector - 3 Way Plug UL Connector - 2 way plug UL Connector - 4 Way Plug UL Connector - 5 Way Plug UL Connector - 6 Way Plug UL Connector - 8 Way Plug UL , Fitting kit - Net2 Plastic Supports Fitting kit - Net2 ACU Packaging - Box insert - ACU's for icc-bx01 (acu1) Packaging - Box OD 190x175x55mm Readers (ne3) Net2 Plus- International Wiring Sticker , Label - Product Serial Number Label 27X10mm Label - Tech Support International Label - Void If Seal Is Broken, 80X30mm Sales Code Label, 27x20mm, Paxton EX, CE, Ctick Net2 Plus Access Control Unit V2 Net2 International Wiring Label Assy |
|---|
