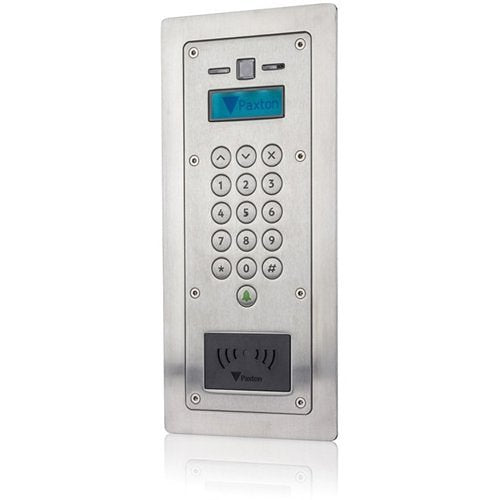

Paxton Access 337-500 door entry system, 7"
About this product
Paxton Access 337-500 is a door entry system.
About – Entry is a door entry system that works standalone or alongside Paxton’s Net2 access control or Paxton10, access control and video management, combining door entry with key features of our access control software. An external panel component of the Entry door entry system. This panel option can open opportunities at sites where vandal resistant capabilities are a prerequisite.
With a market leading IK10 impact rating, the VR panel is made from marine grade stainless steel to meet the most demanding environments.All Entry panels are IPX5 rated, making them suitable for external use in all weather conditions.Installation – Entry components simply interconnect using Cat5 or standard RJ45 terminated patch cables. Entry can also utilise existing network infrastructure for simple installation. PoE technology runs power and data along the same cable to avoid the need for separate power supplies.The flush mount version of this panel enables installation of the unit recessed into the surface of the wall, leaving it unexposed.
For multiple panel entrances, more than one panel can be associated with an ACU.A secondary IP camera can also be installed and integrated with the Entry system to allow extra security in areas of restricted visibility. This provides flexibility with the option to switch between the two cameras on the Entry Monitor.Operation – A visitor initiates a video call via the bell button on the external panel. Visitor access can be granted via the Entry monitor, which features an intuitive touchscreen user interface.
The internal monitor can be used via either the handset for private calls or in hands free mode.When connected to Net2 or Paxton10, access to the building can be gained by using a PIN, Code and/or proximity token (including MIFARE® and Paxton tokens). Paxton10 also offers free Bluetooth Smart Credentials for use with Entry panels. Entry v2.22 is required.
Key features
- IK10 rated for ultimate impact resistance
- Pan/tilt camera functionality
- Pan/tilt camera functionality to capture an angled view
- Reads EM, Paxton & MIFARE® token technology
- Built-in keypad & RFID reader
- Comes in flush, surface mount or rain hood options
- IP & PoE technology for easy expansion
- SIP compatible
If you are matching this to an existing installation, work from the 337-500 part number rather than the description.
-
Download
- 337-500 — Product Manual
Specifications
General information
Technical information
Certifications
Display & graphics
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 337-500 |
| Product Type | Video Door Phone Sub Station |
General information
| Application/Usage | Door Entry |
|---|
Technical information
| Identification Method | Contactless Card (RFID/Proximity), PIN/Passcode |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE Compliant | Compliant |
Display & graphics
| Screen Size | 7" |
|---|
Physical characteristics
| Depth | 35.00mm |
|---|---|
| Durability | Impact Resistant, Vandal Resistant |
| Height | 295.00mm |
| Material | Stainless Steel |
| Width | 151.00mm |
Product information
| Display Screen Type | LCD (Liquid Crystal Display) |
|---|---|
| Mount Type | Flush Mount |
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Package Contents | Label - Product Serial Number Label 27x10mm; Label - Tech Support International; Label - Void if Seal is Broken, 80x30mm; Sales Code Label, 40x25mm, Paxton MK2 Entry US & EU; Label - FCC Statement 40x25mm, Net2 Entry - MK2 VR Panel - Recessed Backbox Assembly; Net2 Entry - MK2 VR Panel - General Assembly , Packaging - Jiffy Foam End Cap, MK2 Panel; Conductive Foam, Adhesive Backed Gasket, 16 x 12.5 x 12.5mm; Fitting kit - VR Net2 MkII Entry Panels; Packaging - Box OD 435x216x125mm VR Panel |
|---|
Paxton Access 337-500 door entry system, 7"
