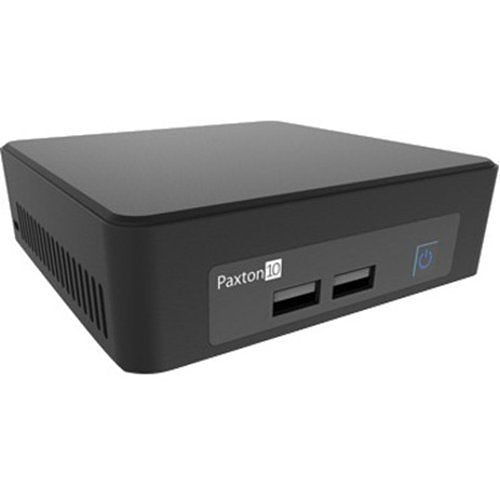

Paxton Access 003-375 server, Ultra Small
About this product
Paxton Access 003-375 is a server.
About – The Paxton10 Server is the central hub for the entire system, providing simple connection to your network for remote access. A single Paxton10 Server supports up to 1000 doors across multiple sites. Accessible from any device with an internet connection, the Paxton10 software makes remote site management straightforward.
No configuration is required; simply browse to the weblink on the bottom of the unit. Supplied with a 32GB USB backup – for added peace of mind. The Paxton10 Server comes in two variants, manufactured by Intel and Lenovo.
The product you receive will depend on current stock availability. Installation – Attach the power supply to the server and plug in. Connect the server to the network with the supplied cable and turn it on.
Create your personal login details and the Paxton10 server is ready for use. Operation – Once you have created your login, you will see the initial setup page. The setup page will provide a link to download and install the Paxton10 SSL/TLS certificate to your device.
You will be provided with a link to your Paxton10 system to start administering your site.
Key features
- Fully web based, license free - no software required
- Automatic back-up and flexible system restore in the event of drive failure
- No configuration required, simply browse to the weblink on the unit
- Cross platform compatibility (PC/Mac/Linux) via Google Chrome and Safari
- Remote access secured by SSL/TLS certificate
- 32GB USB back-up – for added peace of mind
If you are matching this to an existing installation, work from the 003-375 part number rather than the description.
Specifications
Technical information
Interfaces/ports
Memory
Network & communication
Physical characteristics
Power description
Processor & chipset
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 003-375 |
| Product Type | Server |
Technical information
| Graphics Card | Integrated |
|---|---|
| Power Consumption | 25.0000W |
| Processor Type | Core i3 |
| Storage Capacity | 8GB |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Memory
| Memory Technology | DDR SDRAM (Double Data Rate SDRAM) |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 42.00mm |
| Form Factor | Ultra Small |
| Height | 112.00mm |
| Width | 116.00mm |
Power description
| Input Voltage | 19V DC |
|---|---|
| Plug/Connector Type | DC Power |
Processor & chipset
| Processor Manufacturer | Intel |
|---|
Miscellaneous
| Compatibility | Linux, MAC, PC |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | Linux, MAC, PC |
|---|---|
| Input Voltage | 19V DC |
| Package Contents | Paxton10 DC3217IYE Server; 1 x 65W Power Adapter; 1 x Ethernet Cable; Power Plug; 32Gb USB Storage |
