Paxton Access 568-855 vandal proof reader, White
About this product

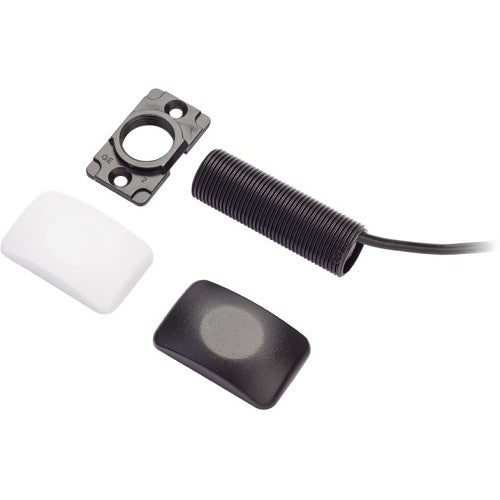

Paxton Access 568-855 is a vandal proof reader.
About – The vandal-proof reader is for use with Switch2 and Net2 systems. The barrel-like design allows the reader to be recessed into a wall, making it ideal for areas prone to vandalism. Black caps are supplied with the reader.
The end cap serves as a marker, indicating where users should present their tokens. Genuine HID Technology has been added to most of our readers, enabling them to read HID 125kHz Proximity tokens when licensed with an activation card. If needed, these readers can also be enabled for Wiegand output via a separate activation card.
Installation – The reader is wired as indicated on the control unit label. It is inserted into a 20mm diameter hole in the wall or door frame. The cap is then mounted as a visual marker for users.
The reader should not be mounted into metal. Operation – A token is read by holding it close to the reader. Once read, the control unit checks the user's access permissions and grants or denies access accordingly.
Key features
- Use with Switch2 or Net2
- A great solution for vulnerable areas
- Reader is buried in a wall or door frame
- Supplied with black coloured cap
- Innovative design
- IPX7 rated - suitable for external use
If you are matching this to an existing installation, work from the 568-855 part number rather than the description.
Specifications
General information
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 568-855 |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Host Interface | Wiegand |
|---|---|
| Identification Method | Contactless Card (RFID/Proximity) |
| Number of Doors | 1 |
| Operating Range | 300mm |
Interfaces/ports
| Wiegand | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 9.00mm |
| Height | 48.00mm |
| Width | 30.00mm |
Power description
| Input Voltage | 14V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | Paxton: Switch2 Card Reader Net2 Card Reader |
|---|---|
| Features | Water Proof |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | Paxton: Switch2 Card Reader; Net2 Card Reader |
|---|---|
| Input Voltage | 14V DC |
| Package Contents | Fitting Kit - Vandal Proof Reader Covers; Fitting Kit - Vandal Proof Proximity Reader; Packaging - Box Insert - Readers For Icc-Bx01 (Rki); Packaging - Box OD 190x175x55mm Readers (ne3) , Label - Product Serial Number label 27x10mm; Label - tech Support International; Label - Void If Seal Is Broken, 80x30mm; Sales Code Label, 27x20mm, Paxton EX, CE, Ctick; Vandal proof proximity reader 2nd |
