Adastra: 952.280UK, Premium KV-T Series 100V Ceiling Speakers, 20W, ABS, 180mm Cutout
About this product
Premium KV-T series 100V Ceiling Speakers

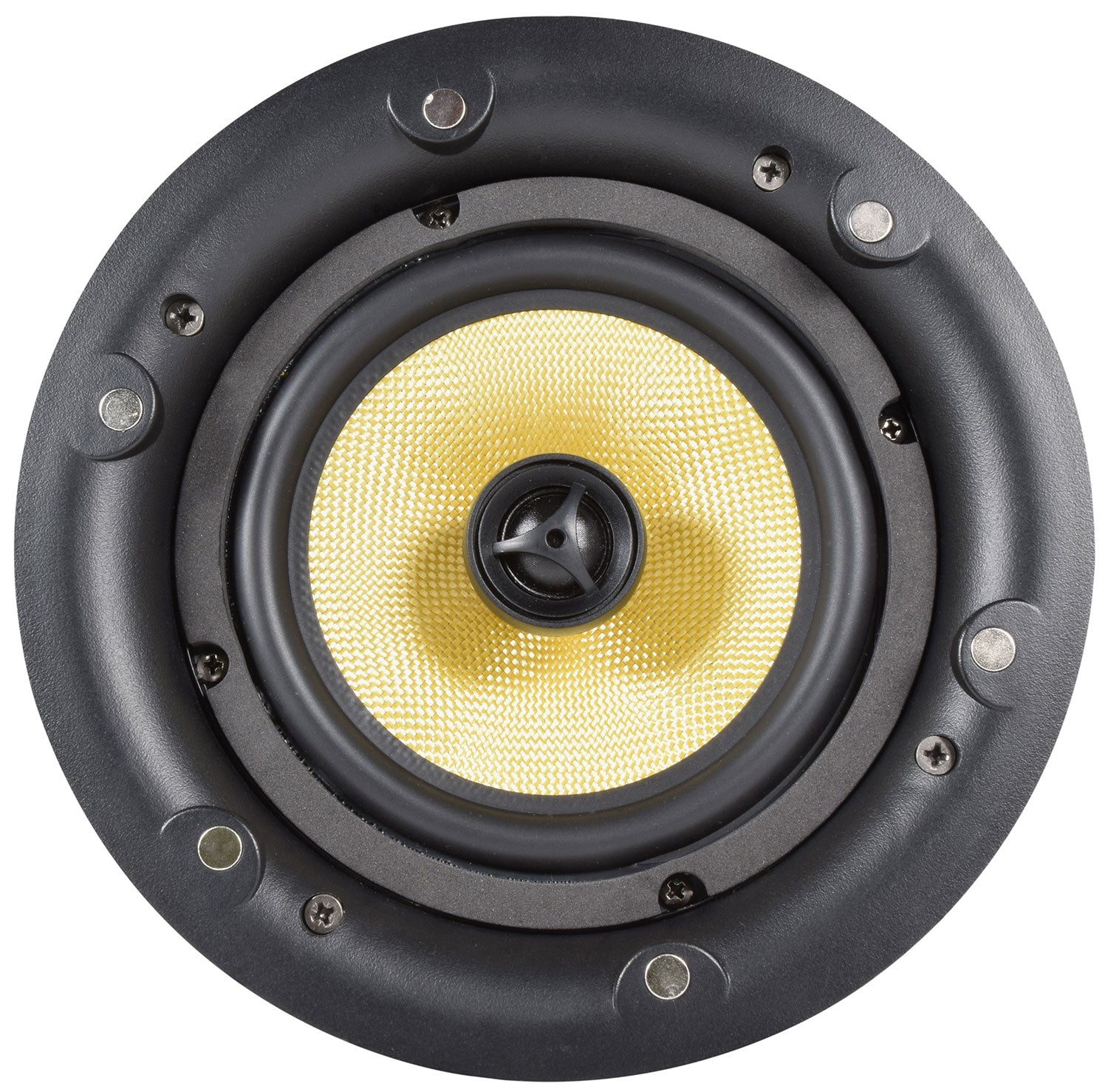

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.

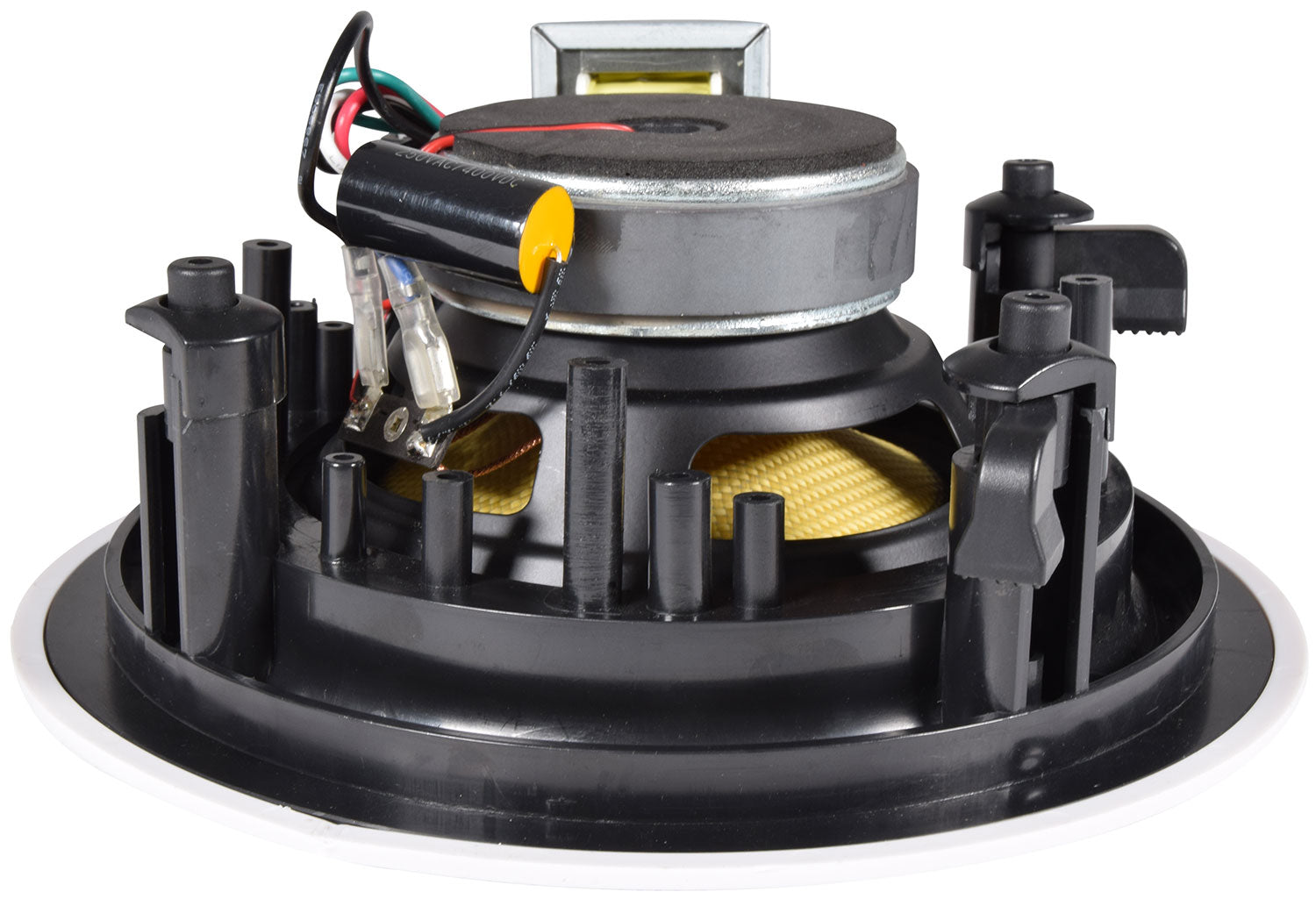

- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transformer)

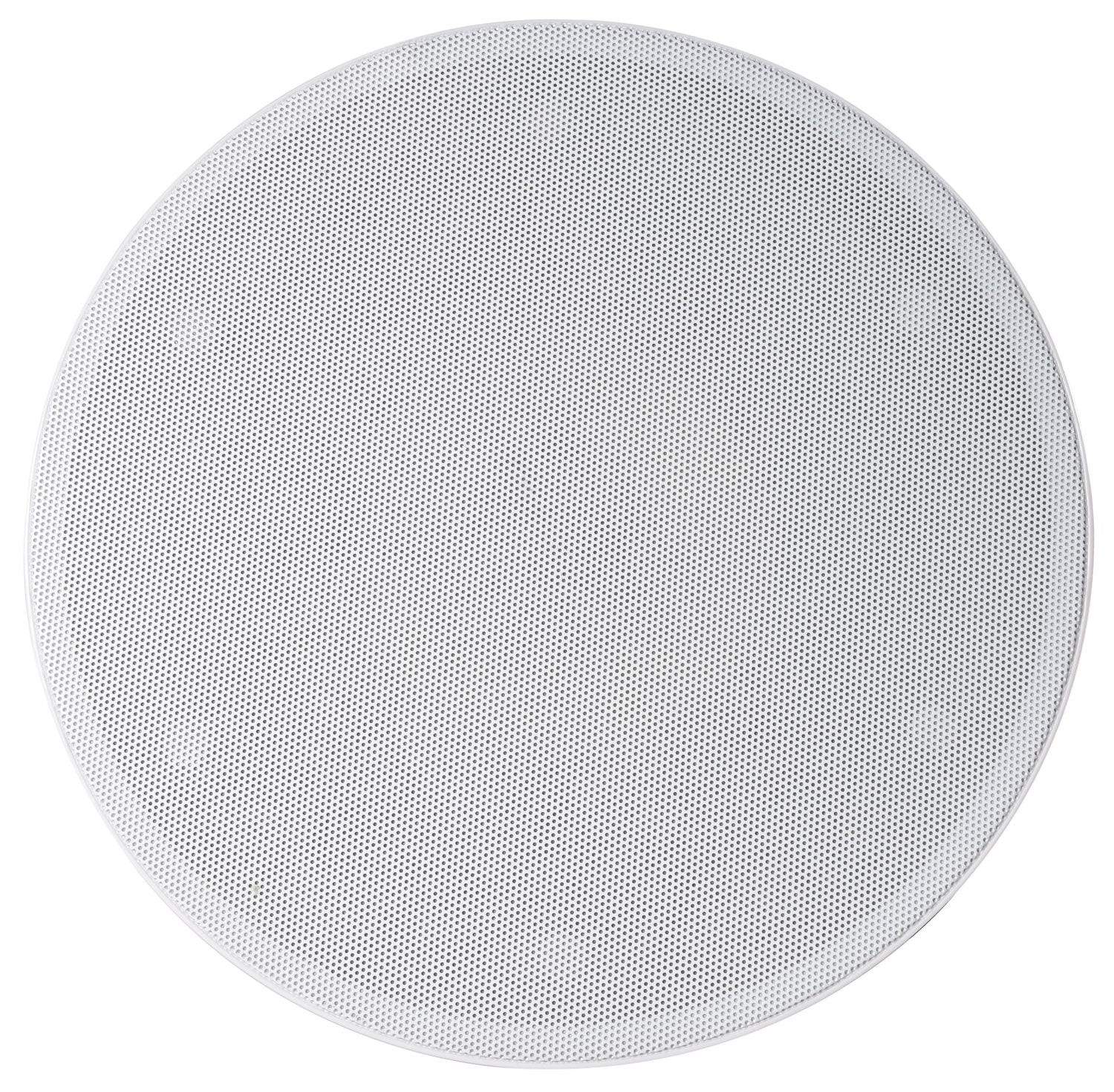

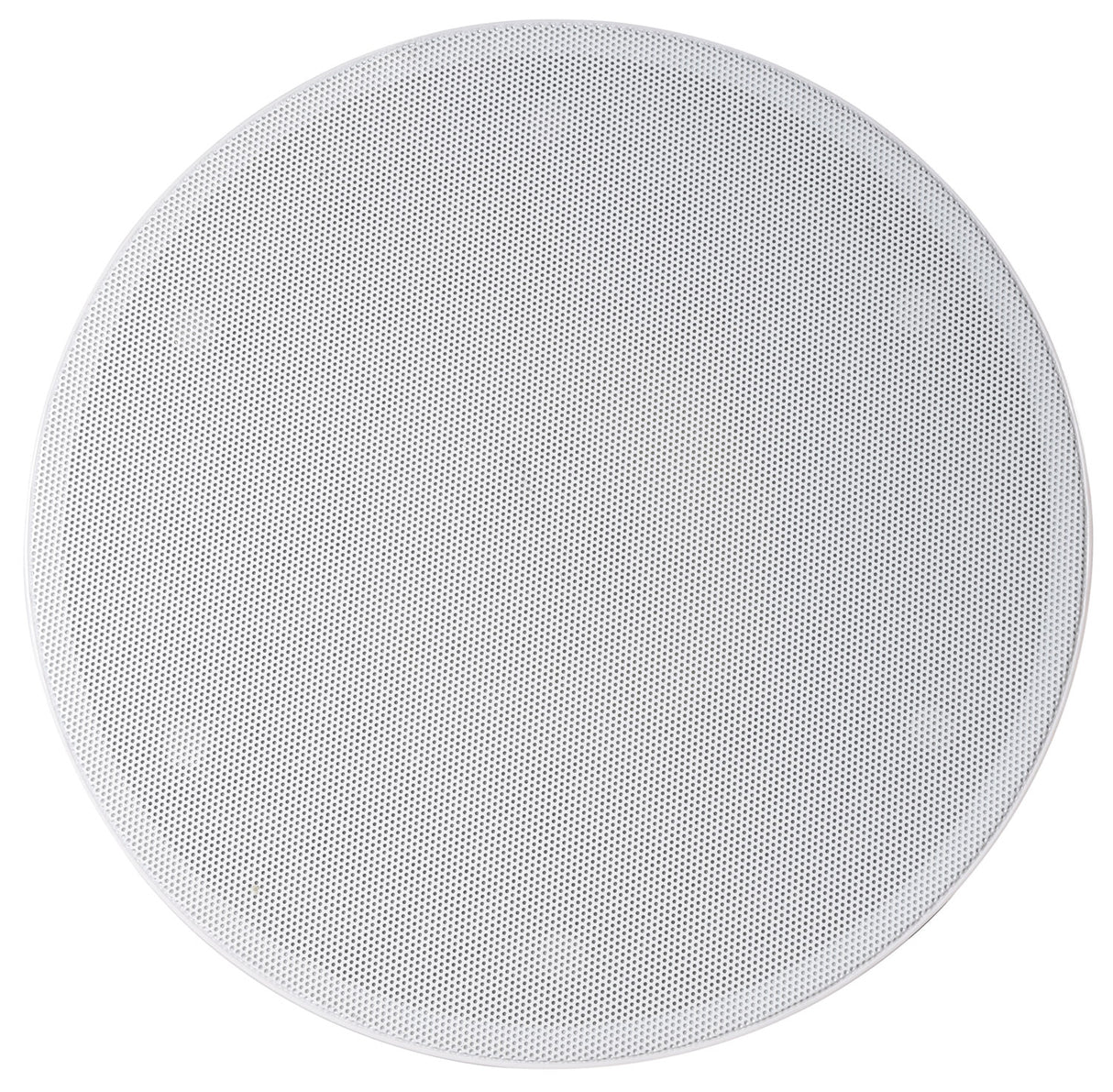

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Supplied individually
Specifications
Specifications
| Cutout Diameter | 180 mm |
|---|---|
| Max SPL | 100 dB |
| Volume Tappings | 5W, 10W, 20W & 8 Ohms (40W) |
| HF Driver | 25 mm ASV diaphragm |
| Impedance Options | 500, 1k, 2k Ohms or 8 Ohms |
| Construction | ABS basket & powder coated steel grille |
| Magnet Weight | 270 g |
| Mounting Depth | 80 mm |
| Dispersion Angle | 120° |
| Frequency Response | 80 Hz - 20 kHz |
Premium KV-T 100V Ceiling Speaker (5.25", 20W) features







Adastra: 952.280UK, Premium KV-T Series 100V Ceiling Speakers, 20W, ABS, 180mm Cutout
