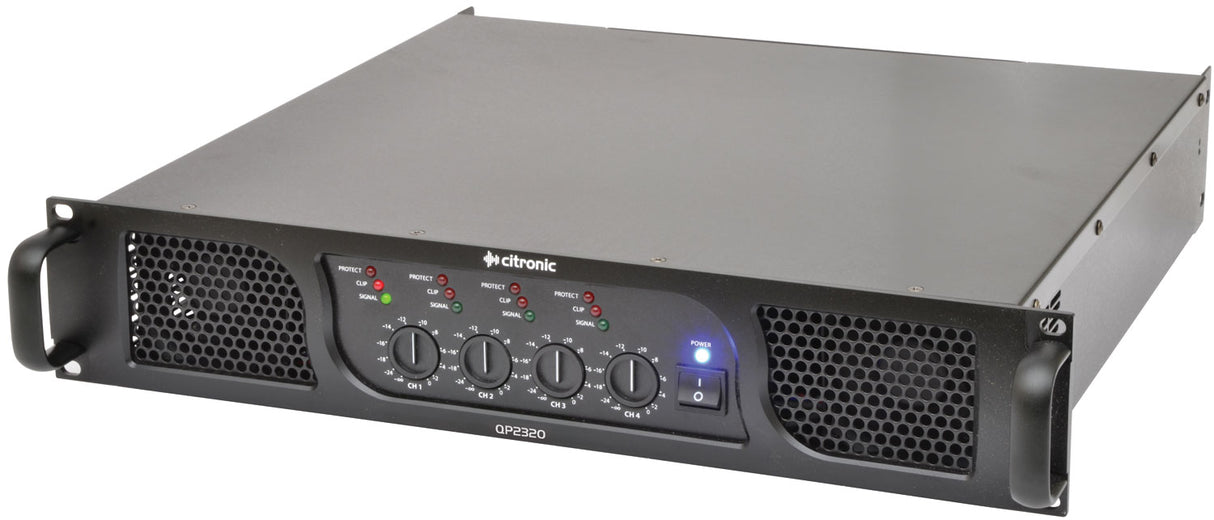

Citronic: 172.243UK, QP Series Quad Power Amplifier, 4 x 580W, 2U Rack Mountable, Balanced Inputs, High Fidelity

Product Overview & Key Benefits

The QP Series Quad Power Amplifiers offer a reliable and effective audio solution for various installations, particularly where high sound quality is a priority. Designed with performance in mind, these amplifiers feature four fully independent channels, each equipped with individual volume controls for tailored output management. Their ability to handle a broad spectrum of outputs makes them perfect for multi-speaker setups, ensuring that all audio needs are catered for in both domestic and commercial environments.

Technical Specifications & Product Details

• Model:QP Series Quad Power Amplifiers
• Variant:4 x 580W
• THD:0.05%
• Weight:23.5kg
• Controls:4 x channel gain
• S/N ratio:103dB
• Slew rate:40V/usec
• Dimensions:483 x 439 x 88mm
• Fuse rating:F12A

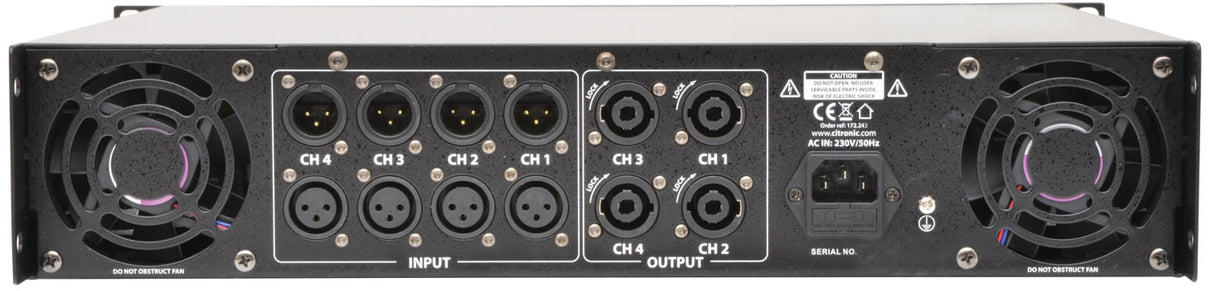

• Input:4 x XLRF balanced
• Power supply:230Vac, 50Hz (IEC)
• Output:4 x XLRM (parallel from inputs)
• Input impedance:20k Ohms
• Input sensitivity:0dB @ 0.775Vrms
• Speaker outputs:4 x SPK connectors
• Circuit protection:Short-circuit, DC, overload, soft-start
• Frequency response:5Hz - 50kHz
• Power RMS @ 2 Ohms:4 x 580W
• Power RMS @ 4 Ohms:4 x 450W
• Power RMS @ 8 Ohms:4 x 300W

Ideal Uses & Applications

The QP Series Quad Power Amplifiers are tailored for a wide range of settings. They are particularly well-suited for:

• Domestic DIY Projects:Elevate your home audio setup with the ability to power multiple speakers efficiently.
• Commercial Buildings:Perfect for hotels, restaurants, and conference centres demanding high-quality sound across larger spaces.
• Hospitality Settings:Ideal for bars and clubs where background music systems need to perform seamlessly without interruption.
• Offices:An excellent choice for providing audio in professional settings, including presentations and meetings requiring reliable sound.

Energy Efficiency & Cost Savings

The QP Series Quad Power Amplifiers are designed with energy efficiency in mind, which can lead to significant cost savings over time. By utilising advanced circuitry that remains stable even at lower impedance levels, users can enjoy high fidelity audio without the excess energy costs typically associated with older models. Save potentially up to 50 percent on your electricity bills while ensuring a consistent and powerful audio output.
