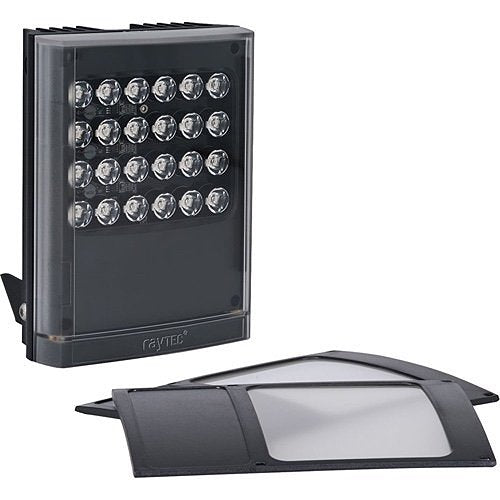

Raytec VAR2-XTR-I8-1 infrared illuminator, Black

Please note: this is a non-returnable item (excluding faulty goods)

Raytec VAR2-XTR-I8-1 is an infrared illuminator from the VARIO2 Extreme range.

This page covers Raytec part VAR2-XTR-I8-1. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover application/usage, illumination distance, certifications & standards among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Application/Usage: Surveillance. This is the figure the record carries for this exact part number.
• Illumination Distance: 350m. Parts in the same family can differ here, so check the code rather than the family.
• Certifications & Standards: Rated IP66, which under the rating scale means dust-tight and rated against powerful water jets. It is listed for this part number, not for the range as a whole.
• RoHS compliance: Recorded as Restricted Substances Not Used for the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Where your specification names a figure, compare it against this one before ordering.
• WEEE compliance: Recorded as Not Applicable for the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Parts in the same family can differ here, so check the code rather than the family.
• Colour: Black. This is the figure the record carries for this exact part number.
• Depth: 66.00mm. Where your specification names a figure, compare it against this one before ordering.
• Durability: Humidity Resistant, Impact Resistant, Salt Resistant, Temperature Resistant, Vibration Resistant. It is listed for this part number, not for the range as a whole.
• Height: 177.80mm. This is the figure the record carries for this exact part number.
• Material: Anodized Aluminum, Polycarbonate. Parts in the same family can differ here, so check the code rather than the family.
• Weight: 1.63kg. It is listed for this part number, not for the range as a whole.
• Width: 127.00mm. Where your specification names a figure, compare it against this one before ordering.
• Additional Information: Illuminator: Model i16 i8 Max Distance 500m (1640ft) 350m (1148ft) Consumption 100W 46W Number of LEDs 48 24 Angle Standard pack includes 10 circular + 35 x 10 (fitted as standard) and 60 x 25 elliptical lenses Additional optional lenses: 8. Parts in the same family can differ here, so check the code rather than the family.
• Features: Active LED Life Control, Advanced Security Setting, Automatic On/Off, Energy Saving, Even Illumination, Green Technology, Hot-spot Reduction Technology (HRT), Interchangeable Lens, LED Illumination, LED Indicator, Night Vision, Platinum Elite SMT LED Technology, Programmable. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the infrared illuminator role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for indoor, outdoor use.
• Typical application: Surveillance.

If you are matching this to an existing installation, work from the VAR2-XTR-I8-1 part number rather than the description.
