Rekor IP RC24KTW 24/7 IP PoE 2MP 4CH 4 Camera Turret Kit, White, 1TB
Free Delivery
£
413
03
(Incl. VAT)
2 Years Warranty
IP PoE 2MP 4CH 4 Turret Kit 1TB White
About this product
About this product

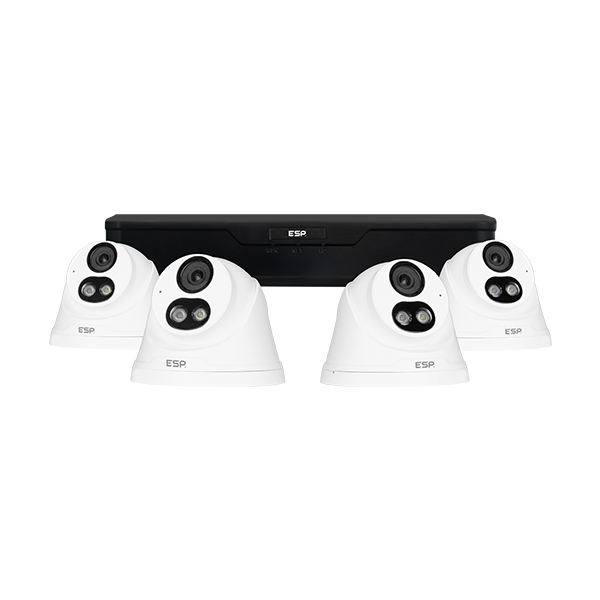

The Rekor IP RC24KTW, from ESP's CCTV range, is a 2MP turret camera kit: a 4 channel IP PoE network video recorder with a 1TB hard drive, 4 white RC228TW 2MP turret cameras, a kit cable for each camera and the NVR power supply.
Key features
- Complete kit: 4 channel NVR, power supply for the NVR, 4 x RC228TW turret cameras and a kit cable for each camera
- Weatherproof 24/7 IP PoE cameras, white
- HD 2MP resolution viewing and recording; pre-installed 1TB hard drive
- 4 channel IP PoE network video recorder with 4 PoE channels
- White LED and IR function for 24/7 colour images: 30 m IR and 30 m white light range per camera
- Line cross and perimeter intrusion detection
- Remote monitoring via app (Android / iOS) or PC
- Continuous, scheduled, motion detection and intelligent record modes
Frequently asked questions
What comes in the RC24KTW kit?
A 4 channel NVR, a power supply for the NVR, 4 RC228TW turret cameras and a kit cable for each camera.
How much storage does the NVR have?
A pre-installed 1TB hard drive (1 x SATA).
Do the cameras record in colour at night?
They have a white LED and IR function for 24/7 colour images, with 30 m of white light and 30 m of IR.
Can the system be viewed remotely?
Yes, via the app (Android / iOS) or a PC.
How long are the kit cables?
18.3 m, Cat-5e UTP, pre-wired with 2 x RJ45 terminated connections.
-
Download
- RC24KTW Tech Sheet
£
413
03
FAST delivery by Order within
Price
Technical Details
Specifications
Viewing Angle (°)
106(H) x 57(V) x 115(D)
Warranty Years
2
Supplied
4 Channel NVR; PSU for NVR; 4 x RC228TW Turret Cameras; Kit Cable for Each Camera
NVR dimensions (mm)
205 x 205 x 46
NVR weight (Kg)
0.6
NVR operating voltage (V DC)
48
NVR power consumption
<9W
NVR display video output
1 x HDMI, 1 x VGA
NVR display split
1 & 4
NVR display resolutions
HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
NVR sync playback
4 Channel
NVR backup mode
USB2.0 devices
NVR internal HDD
1TB (1 x SATA)
NVR recording bandwidth (Mbps)
64
NVR video/audio compression
H.265/H.264
NVR recording resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
NVR network connection
1 RJ45 10M/100M self-adaptive Ethernet Interface
NVR network functions
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
NVR PoE channels
4 RJ45 10M/100M self-adaptive Ethernet Interface
NVR USB interface
2 x USB2.0
NVR video input channels
4
NVR audio output channels (RCA)
1
NVR operating temperature (°C)
-10 to +55
NVR relative humidity resistance (%)
≤ 90 RH (non-condensing)
Camera (RC228TW) dimensions (mm)
Ø118 x 95
Camera (RC228TW) finish
Powder Coated
Camera (RC228TW) colour
White
Camera (RC228TW) sensor size
1/2.8" Progressive CMOS
Camera (RC228TW) lens size (mm)
2.8
Camera (RC228TW) effective pixels
2MP (1920 x 1080)
Camera (RC228TW) maximum IR distance (m)
30
Camera (RC228TW) white light range (m)
30
Camera (RC228TW) day/night
Dual Light (IR & White Light)
Camera (RC228TW) basic detection
Cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection
Camera (RC228TW) operating voltage (V DC)
12
Camera (RC228TW) power consumption (W)
8
Camera (RC228TW) other power sources
PoE (IEEE802.3af)
Camera (RC228TW) lens type
Fixed
Camera (RC228TW) frames per second
Main Stream: 1080p (1920*1080), Max 30fps, 720p (1280*720), Max 30fps
Camera (RC228TW) speaker
Yes (built-in)
Camera (RC228TW) microphone
Yes (built-in)
Camera (RC228TW) reset key
No
Camera (RC228TW) ONVIF compliant
Yes; Profile S, Profile G, Profile T
Camera (RC228TW) ingress protection
IP67
Camera (RC228TW) operating temperature (°C)
-30 to +60
Camera (RC228TW) weight (Kg)
0.32
IP cable colour
Black
IP cable length (m)
18.3
IP cable category
Cat-5e, UTP
IP cable pre-wired
Yes
IP cable terminated connections
2 x RJ45
NVR power supply unit supply voltage (V AC)
110 - 240
NVR power supply unit output rating
48VDC
Accessories
IPIN1POE: 1 Channel POE Injector (30W); S4POE: 4 Port PoE Switch 60W; CABIP10: 10 Metre CAT-5e External Use Data Cable; CABIP20: 20 Metre CAT-5e External Use Data Cable; CABIP40: 40 Metre CAT-5e External Use Data Cable; CABIP80: 80 Metre CAT-5e External Use Data Cable; DBW3: HDview IP & Rekor IP 2MP 24/7 Turret Camera Deep Base - White
Dimensions
NVR (mm)
205 x 205 x 46
Camera (RC228TW) (mm)
Ø118 x 95
Specifications
| Viewing Angle (°) | 106(H) x 57(V) x 115(D) |
|---|---|
| Warranty Years | 2 |
| Supplied | 4 Channel NVR; PSU for NVR; 4 x RC228TW Turret Cameras; Kit Cable for Each Camera |
| NVR dimensions (mm) | 205 x 205 x 46 |
| NVR weight (Kg) | 0.6 |
| NVR operating voltage (V DC) | 48 |
| NVR power consumption | <9W |
| NVR display video output | 1 x HDMI, 1 x VGA |
| NVR display split | 1 & 4 |
| NVR display resolutions | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| NVR sync playback | 4 Channel |
| NVR backup mode | USB2.0 devices |
| NVR internal HDD | 1TB (1 x SATA) |
| NVR recording bandwidth (Mbps) | 64 |
| NVR video/audio compression | H.265/H.264 |
| NVR recording resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| NVR network connection | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| NVR network functions | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| NVR PoE channels | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| NVR USB interface | 2 x USB2.0 |
| NVR video input channels | 4 |
| NVR audio output channels (RCA) | 1 |
| NVR operating temperature (°C) | -10 to +55 |
| NVR relative humidity resistance (%) | ≤ 90 RH (non-condensing) |
| Camera (RC228TW) dimensions (mm) | Ø118 x 95 |
| Camera (RC228TW) finish | Powder Coated |
| Camera (RC228TW) colour | White |
| Camera (RC228TW) sensor size | 1/2.8" Progressive CMOS |
| Camera (RC228TW) lens size (mm) | 2.8 |
| Camera (RC228TW) effective pixels | 2MP (1920 x 1080) |
| Camera (RC228TW) maximum IR distance (m) | 30 |
| Camera (RC228TW) white light range (m) | 30 |
| Camera (RC228TW) day/night | Dual Light (IR & White Light) |
| Camera (RC228TW) basic detection | Cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection |
| Camera (RC228TW) operating voltage (V DC) | 12 |
| Camera (RC228TW) power consumption (W) | 8 |
| Camera (RC228TW) other power sources | PoE (IEEE802.3af) |
| Camera (RC228TW) lens type | Fixed |
| Camera (RC228TW) frames per second | Main Stream: 1080p (1920*1080), Max 30fps, 720p (1280*720), Max 30fps |
| Camera (RC228TW) speaker | Yes (built-in) |
| Camera (RC228TW) microphone | Yes (built-in) |
| Camera (RC228TW) reset key | No |
| Camera (RC228TW) ONVIF compliant | Yes; Profile S, Profile G, Profile T |
| Camera (RC228TW) ingress protection | IP67 |
| Camera (RC228TW) operating temperature (°C) | -30 to +60 |
| Camera (RC228TW) weight (Kg) | 0.32 |
| IP cable colour | Black |
| IP cable length (m) | 18.3 |
| IP cable category | Cat-5e, UTP |
| IP cable pre-wired | Yes |
| IP cable terminated connections | 2 x RJ45 |
| NVR power supply unit supply voltage (V AC) | 110 - 240 |
| NVR power supply unit output rating | 48VDC |
| Accessories | IPIN1POE: 1 Channel POE Injector (30W); S4POE: 4 Port PoE Switch 60W; CABIP10: 10 Metre CAT-5e External Use Data Cable; CABIP20: 20 Metre CAT-5e External Use Data Cable; CABIP40: 40 Metre CAT-5e External Use Data Cable; CABIP80: 80 Metre CAT-5e External Use Data Cable; DBW3: HDview IP & Rekor IP 2MP 24/7 Turret Camera Deep Base - White |
Dimensions
| NVR (mm) | 205 x 205 x 46 |
|---|---|
| Camera (RC228TW) (mm) | Ø118 x 95 |
