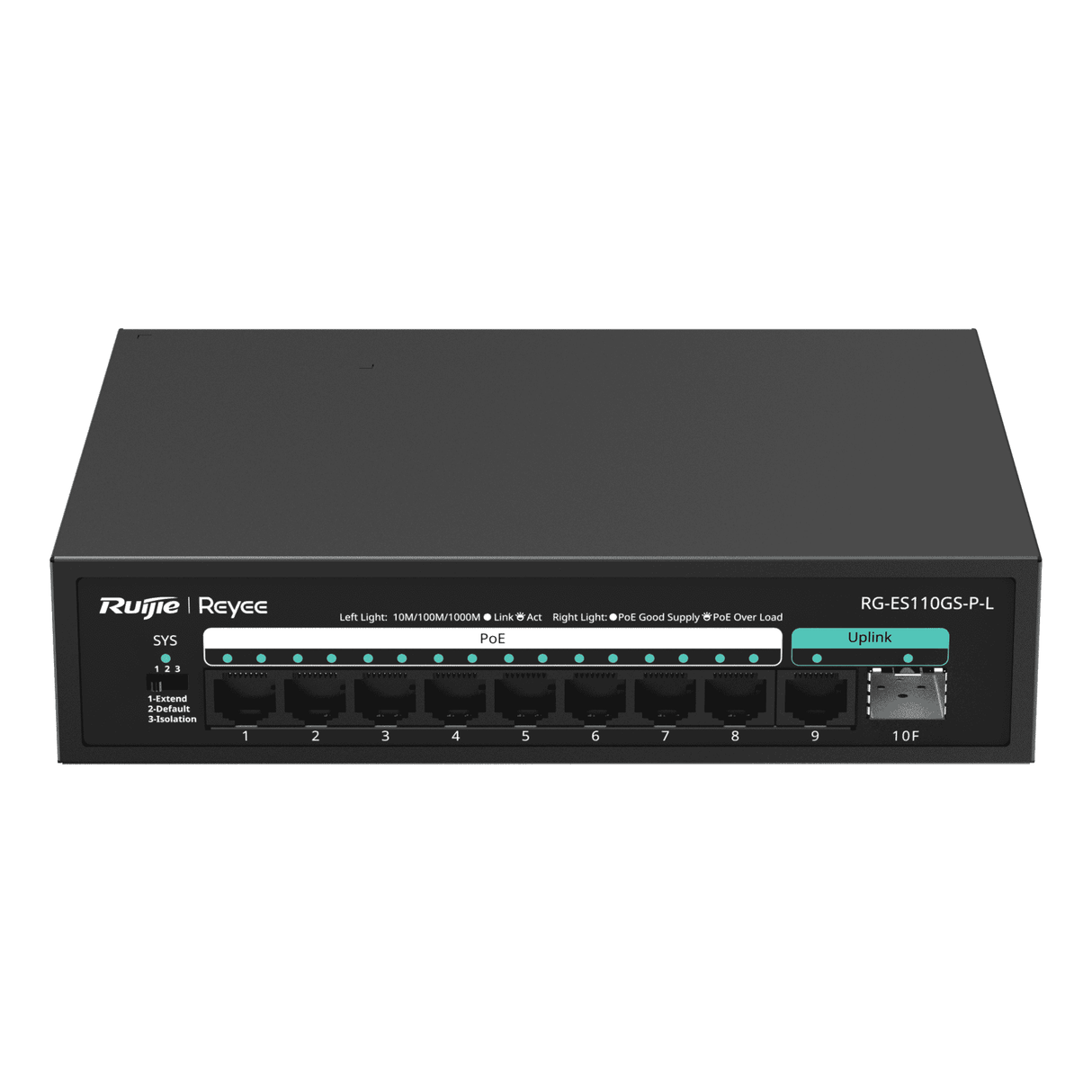

Reyee RG-ES110GS-P-L 10-Port Gigabit PoE+ Switch, 8x PoE+ (120W), 1x Gigabit + 1x SFP

Introduction: What the Reyee RG-ES110GS-P-L Offers

The Reyee (Ruijie) RG-ES110GS-P-L is a compact, unmanaged 10‑port Gigabit PoE+ switch built for environments that need dependable Power over Ethernet without the complexity of managed networking. With eight PoE/PoE+ downlinks, a total PoE budget of 120 W, dual uplinks (1×Gigabit RJ45 and 1×1Gb SFP), and a fanless metal chassis, this switch targets small offices, retail outlets, home‑office deployments and CCTV/IP camera systems where quiet, reliable operation and straightforward installation matter.

Key Features at a Glance

• 8× Gigabit PoE/PoE+ ports— per‑port power up to ~30 W where supported.
• Dual uplinks— 1×Gigabit RJ45 plus 1×1Gb SFP for flexible uplink options.
• 120 W total PoE budget— supports multiple cameras, access points or VoIP phones simultaneously.
• Unmanaged, plug‑and‑play— simple deployment with optional cloud visibility through Ruijie where applicable.
• Fanless metal chassis— quiet desktop or wall‑mount installation with robust build quality and surge protection on PoE ports.
• PoE Watchdog & auto‑recovery— helps keep powered devices online with automatic reboot capabilities when required.

Detailed Specifications and Benefits

The RG-ES110GS-P-L balances practical port density and PoE capacity with a small footprint and low operational overhead. Below are the main specifications and the real‑world benefits they deliver.

• Downlinks:8 × 10/100/1000Base‑T RJ45 (PoE/PoE+). Benefit: supports a mix of cameras, access points and phones at Gigabit speeds for video, voice and data.
• Uplinks:1 × 10/100/1000Base‑T RJ45 and 1 × 1000Base‑X SFP. Benefit: allows flexible connection to a router, core switch or fiber link for longer distances.
• Total ports:10 ports (8 PoE + 2 uplink). Benefit: compact but versatile—no need for extra modules or adapters in small deployments.

• Standard:IEEE 802.3af/at (PoE/PoE+). Benefit: works with modern PoE cameras, APs and phones.
• Budget:120 W total PoE. Benefit: powers several devices at once—typical small CCTV or multi‑AP setups can be supported without an external injector.
• Per‑port power:Up to ~30 W per port (distribution dependent). Benefit: supports PoE+ devices that need more power such as PTZ cameras or high‑power access points.
• Extension mode:Long‑range PoE up to ~250 m. Benefit: useful for installations where devices are located beyond standard 100 m Ethernet runs (note: performance and device support vary by mode and device).
• Protection:4–6 kV class surge protection on PoE ports (reseller‑stated). Benefit: improved resiliency in environments prone to electrical spikes.

• Switching capacity:20 Gbps; forwarding rate ≈14.8 Mpps. Benefit: sufficient for full‑wire speed on all Gigabit ports for typical small installations.
• MAC table:≈4,000 entries. Benefit: handles multiple connected devices without flooding the network.
• Traffic features:Port isolation and hardware flow control. Benefit: simple isolation for sensitive devices and better traffic stability in busy small networks.
• Form factor & durability:Fanless metal chassis (desktop/wall‑mount). Benefit: silent operation and reliable heat dissipation with physical protections for installation flexibility.

Use Cases — Where This Switch Excels

The RG-ES110GS-P-L is particularly suited to scenarios where plug‑and‑play simplicity, PoE power and a modest port count are priorities:

• Eight PoE+ ports plus a 120 W budget let you deploy multiple high‑resolution cameras—suitable for small retail sites, offices and residential security systems.
• Extended PoE mode helps reach cameras placed farther than 100 m when running conduit or legacy cabling.

• Support for VoIP phones and access points with centralized PoE power removes the need for local power supplies or injectors.
• Fanless operation is ideal for quiet office spaces or reception areas.

• Power and network for POS terminals, security cameras and wireless APs from a single small switch keeps wiring tidy and installation fast.

Comparisons with Similar Products

When choosing a PoE switch, buyers typically weigh unmanaged simplicity against managed control, and budget versus features. The RG-ES110GS-P-L sits firmly in the unmanaged, business‑grade PoE segment.

• Unmanaged vs Managed switches:Managed switches offer VLANs, QoS, SNMP and deeper troubleshooting—useful for larger or security‑sensitive networks. The RG-ES110GS-P-L sacrifices these advanced controls for plug‑and‑play ease, ideal for teams without dedicated network admins.
• Compared to other 8‑port PoE+ unmanaged switches:The Reyee unit’s 120 W budget and SFP uplink give it an edge over some basic consumer models that offer lower PoE budgets or lack fiber uplink options. The fanless metal chassis and surge protection make it a more robust choice for commercial use.

Conclusion: Why Choose the RG-ES110GS-P-L?

The Reyee RG-ES110GS-P-L is a practical, cost‑effective solution for small sites that need reliable PoE distribution, Gigabit performance and simple deployment. Its 8 PoE+ ports with a 120 W budget, dual uplink options including SFP, fanless metal construction and helpful PoE features like Watchdog and surge protection make it well suited to CCTV systems, small office networks and retail environments.

Choose this switch if you value plug‑and‑play simplicity, quiet operation and the ability to power multiple PoE devices without adding bulky external injectors. If your environment later grows to require advanced VLANs, QoS or remote management, you can complement or replace this unmanaged switch with a managed model—however, for many small deployments the RG-ES110GS-P-L provides an excellent blend of price, performance and reliability.

For full technical specifications, datasheets and installation guidance, consult the Reyee/Ruijie product downloads before purchase and installation.
