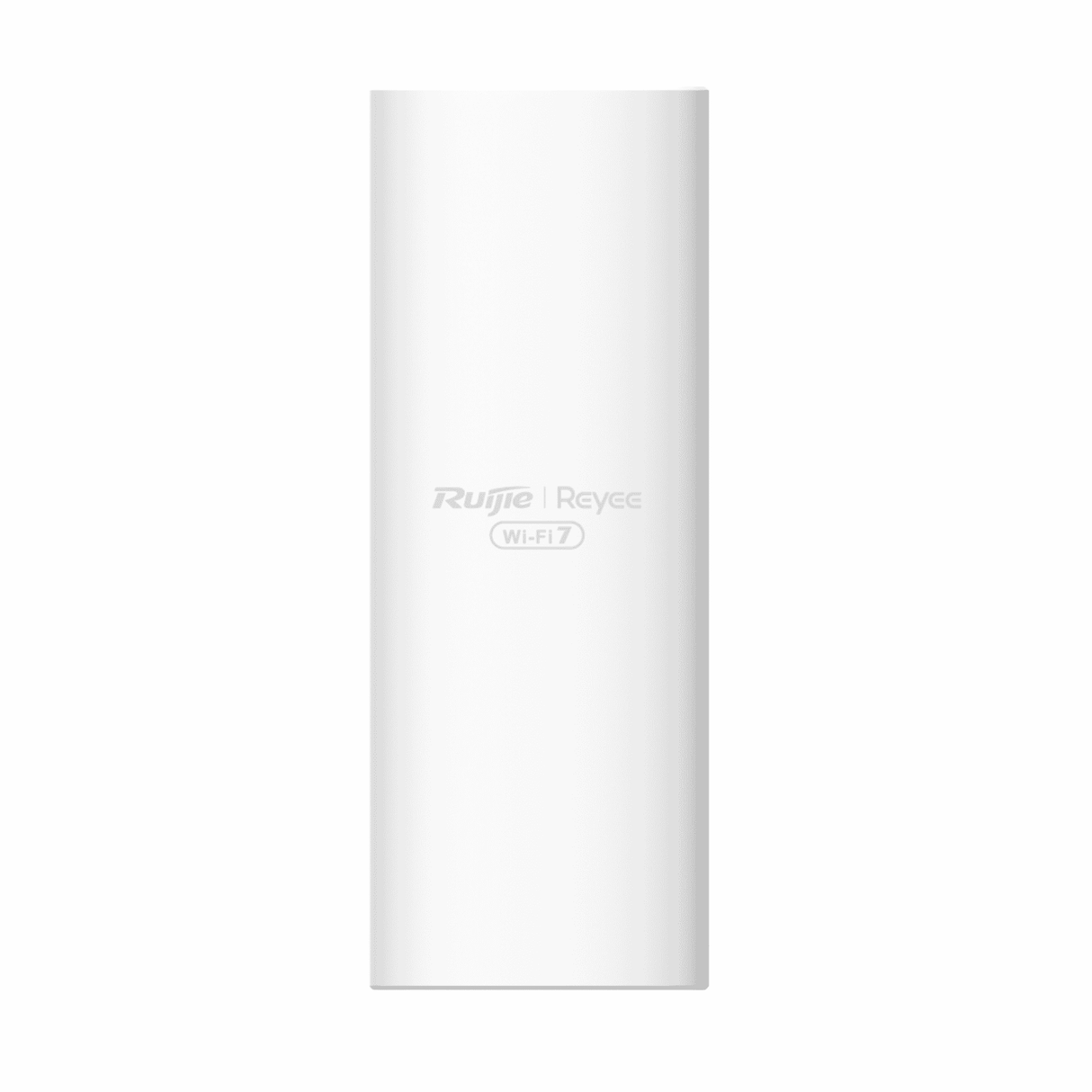

RG-RAP72Pro-OD Dual-Band Wi-Fi 7 Outdoor/Indoor Access Point, 2.5GbE PoE BE5040

Introduction: Reyee RG-RAP72Pro-OD in brief

The Reyee (Reyee / Ruijie) RG-RAP72Pro-OD (BE5040) is a dual-band Wi‑Fi 7 indoor/outdoor access point designed for small and medium businesses, retail sites and hospitality environments that need robust wireless coverage in exposed or transitional spaces. Combining next-generation IEEE 802.11be features such as Multi-Link Operation (MLO) and Wi‑Fi Intelligent Optimisation (WIO) with an IP65 weatherproof enclosure and a single 2.5GbE PoE port, it aims to deliver high aggregate throughput, simplified deployment and centralised management via Reyee cloud/mesh tools.

Key features at a glance

• Wi‑Fi 7 performance:IEEE 802.11be support, MLO for multi-link aggregation and improved roaming.
• High aggregate throughput:Manufacturer-listed total wireless throughput of approximately 5.0 Gbps across 2.4 GHz and 5 GHz bands.
• Outdoor-ready design:IP65-rated housing and a wide operating temperature range (−30 °C to +65 °C).
• Flexible deployment:Built-in antennas with wall or pole mounting and a single 2.5GbE PoE port (802.3af/at) for straightforward installation.
• Enterprise-capable features:WPA3/OWE security, 802.11k/v/r for roaming, 802.1Q VLANs, client isolation and traffic/capacity controls.

Detailed specifications and benefits

The RG-RAP72Pro-OD brings a collection of hardware and software capabilities targeted at environments where both performance and weather resistance are essential. Key specifications and the practical benefits they deliver include:

• Standard:IEEE 802.11be (Wi‑Fi 7) with backward compatibility to a/b/g/n/ac/ax. Benefit: future-ready compatibility that can take advantage of client devices adopting newer Wi‑Fi 7 features while still serving existing devices.
• Max data rates:2.4 GHz: 688 Mbps; 5 GHz: 4,323 Mbps; aggregate ≈5.0 Gbps (manufacturer-listed). Benefit: strong aggregate capacity that supports many concurrent users, high-bandwidth applications and better performance for latency-sensitive uses.
• Spatial streams:2.4 GHz: 2×2; 5 GHz: 3×3. Benefit: improved spatial multiplexing in the 5 GHz band for higher client throughput.
• Advanced features:MLO and WIO. Benefit: MLO allows multiple simultaneous links across bands to increase throughput and resilience; WIO helps optimise channel and link performance in dynamic RF environments.
• Roaming and security:802.11k/v/r roaming support, WPA3 and OWE. Benefit: smoother client handoffs for users moving through coverage areas and improved encryption/security for modern client devices.

• Ethernet:1 × 100/1000/2.5GBase-T RJ45 (PoE port). Benefit: uplink/headroom beyond 1 GbE lets the AP deliver closer-to-wireless-maximum speeds to uplink switches or aggregation points without requiring fibre backhaul at every site.
• PoE support:IEEE 802.3af/at. Benefit: simplifies installation by allowing power over the network cable; supports common PoE switches and injectors.
• Power consumption:< 21 W. Benefit: modest power draw suitable for PoE deployment and predictable thermal behavior in outdoor housings.
• Antennas:Built-in antennas (2.4 GHz 2×2; 5 GHz 3×3). Benefit: no external antenna installation required, maintaining a cleaner, tamper-resistant installation for outdoor sites.
• Client capacity:Up to 511 clients (recommended about ~110 active clients under typical conditions). Benefit: supports dense client populations with careful planning for active client counts and traffic profiles.

• IP65 rating:Weatherproof for outdoor use, with dust protection and low-pressure water resistance.
• Operating temperature:−30 °C to +65 °C, enabling deployment in a wide range of climates.
• Size and weight:Compact dimensions (239 × 90 × 46 mm) and under 0.7 kg (excluding mount) for flexible mounting options.

These specifications together make the RG-RAP72Pro-OD suitable for locations where Wi‑Fi capacity and resilience are needed outside or in semi-exposed areas, and where straightforward PoE installation and centralised cloud/mesh management are priorities.

Use cases and scenarios where this AP excels

The RG-RAP72Pro-OD is aimed at practical deployments where environmental exposure and multi-user demand intersect. Typical deployment scenarios include:

• Outdoor dining and hospitality terraces:Hotels, cafes and restaurants often need reliable coverage in outdoor seating areas. The IP65 housing and PoE convenience allow placement close to diners without running mains power.
• Retail forecourts and shopfronts:Retailers can extend guest and point-of-sale coverage to glazed entrances, forecourts and canopies while maintaining secure VLAN separation between guest and operational traffic.
• Courtyards and campus transition zones:Areas that act as transitional spaces between buildings benefit from an AP that tolerates temperature swings and rain while offering robust roaming for mobile staff and visitors.
• Small and medium enterprise branch sites:Branch offices that require central management via Reyee cloud or mesh systems can deploy this AP outdoors to remove coverage gaps without complex cabling.
• Events and pop-ups:Semi-permanent installations for events where rapid deployment and a weather-resistant footprint are required, with the advantage of 2.5GbE uplink for aggregated traffic from many users.

Comparisons with similar products on the market

Wi‑Fi 7 is an emerging generation, and options vary across vendors in capability, management approach and price. Key comparison points to consider when evaluating the RG-RAP72Pro-OD against other APs:

• Wi‑Fi generation:Compared with many currently deployed outdoor APs that are Wi‑Fi 5 (802.11ac) or Wi‑Fi 6 (802.11ax), the RG-RAP72Pro-OD offers Wi‑Fi 7 features (MLO and wider channel support) which can provide a path to higher aggregate throughput as client devices evolve. However, widespread client-side Wi‑Fi 7 support is still growing, so immediate benefits depend on client hardware.
• Uplink speed:The 2.5GbE PoE uplink is a differentiator over many outdoor APs that only offer 1 GbE. This reduces uplink bottlenecks where multiple high-bandwidth clients are active simultaneously.
• Price vs enterprise vendors:It can be a cost-effective path to next-gen wireless for SMBs that need outdoor coverage without the higher cost of top-tier brands.
• Management:Reyee/Ruijie cloud and mesh management competes favorably with other cloud solutions, providing centralised control without heavyweight on-premises controllers. Larger enterprises used to Cisco, Aruba or Meraki feature sets should compare specific advanced features and ecosystem integration needs.
• Durability:IP65 is suitable for many outdoor uses; some competitors offer higher ingress protection or tamper-resistant enclosures depending on the use case, so choose based on local exposure and vandalism risk.

Conclusion: Why choose the RG-RAP72Pro-OD?

The Reyee RG-RAP72Pro-OD is an attractive option for organisations that need an accessible, weatherproof access point with next-generation Wi‑Fi 7 features, a 2.5GbE PoE uplink and simplified cloud/mesh management. It strikes a balance between forward-looking wireless technology (MLO, Wi‑Fi 7) and practical deployment considerations (IP65, PoE, compact form factor), making it well suited to hospitality, retail and SMB branch deployments in outdoor or semi-exposed areas.

Prospective buyers should remember that real-world throughput will depend on client devices, RF environment and uplink capacity. For many sites, the RG-RAP72Pro-OD represents a cost-effective path to higher capacity wireless and reduced coverage gaps outdoors—especially where centralised management and PoE simplicity are priorities.
