RGL Electronics ACKIT-3 Access Control Kit, 600lb/280kg Maglock, 5 Proximity Fobs
About this product

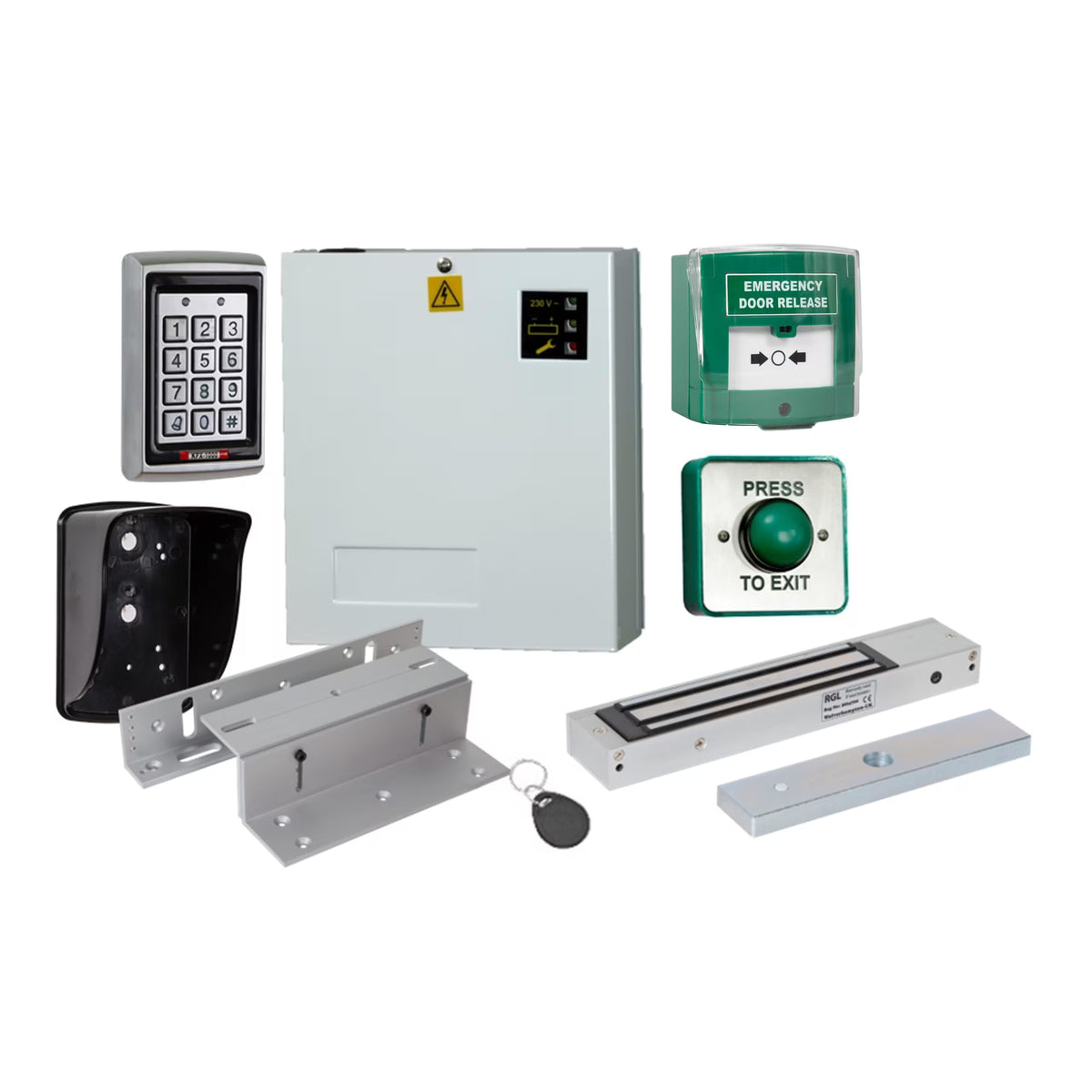

The RGL Electronics ACKIT-3 is a complete single door access control kit with a proximity keypad. It brings together the KPX1000 Internal/External proximity keypad, the ML600 600lb/280kg slimline magnetic lock with BK600ZL ZL bracket, the 1201SM-1 12v 1amp PSU with battery back up, a green dome momentary switch, the EDR-1 single pole call point, a rainshield and 5 proximity fobs.
Key features
- KPX1000 Internal/External proximity keypad
- ML600 600lb/280kg slimline magnetic lock
- BK600ZL ZL bracket for the ML600
- 1201SM-1 12v 1amp PSU with battery back up
- Green dome momentary switch
- EDR-1 single pole call point (resettable break glass)
- 5 proximity fobs
- ML600 range magnets and brackets fire tested to BSEN1634-1-2014
Frequently asked questions
What is in the RGL ACKIT-3 kit?
The KPX1000 Internal/External proximity keypad, ML600 600lb/280kg slimline magnetic lock, BK600ZL ZL bracket, 1201SM-1 12v 1amp PSU with battery back up, a green dome momentary switch, the EDR-1 single pole call point, a rainshield and 5 proximity fobs.
How strong is the ACKIT-3 magnetic lock?
The ML600 is a 600lb/280kg slimline magnetic lock.
Does the ACKIT-3 power supply have battery back up?
Yes. The 1201SM-1 is a 12v 1amp PSU with battery back up.
Is the ACKIT-3 maglock fire tested?
The ML600 range of magnets and brackets have been fire tested to BSEN1634-1-2014.
Can the ACKIT-3 keypad be used outside?
The KPX1000 is an Internal/External proximity keypad.
Specifications
Specifications
| Brand | RGL Electronics |
|---|---|
| Model | ACKIT-3 |
| Manufacturer Part Number (MPN) | ACKIT-3 |
| Magnetic lock | ML600 – 600lb/280kg Slimline Magnetic Lock |
| Bracket | BK600ZL – ZL Bracket for ML600 |
| Power supply | 1201SM-1 – 12v 1amp PSU with battery back up |
| Keypad | KPX1000 – Internal/External Proximity Keypad |
| Switch | Green Dome Momentary Switch |
| Call point | EDR-1 – Single Pole Call Point |
| Also in the kit | Rainshield |
| Fobs | KP-FOB – 5 Proximity Fobs |
| Fire test (ML600 range) | The ML600 range of magnets and brackets have been fire tested to BSEN1634-1-2014 |
| 1201SM-1 (boxed) | 225x196x75 (mm) - 1.46kg |
| ML600 (boxed) | 250x42x25 (mm) - 1.97kg |
| KPX1000 (boxed) | 120x76x25 (mm) - 526g |
| Rainshield (boxed) | 150x104x92 (mm) - 162g |
| Green dome button (boxed) | 85x85x28 (mm) - 248g |
| EDR-1 (boxed) | 88x88x52 (mm) - 212g |
