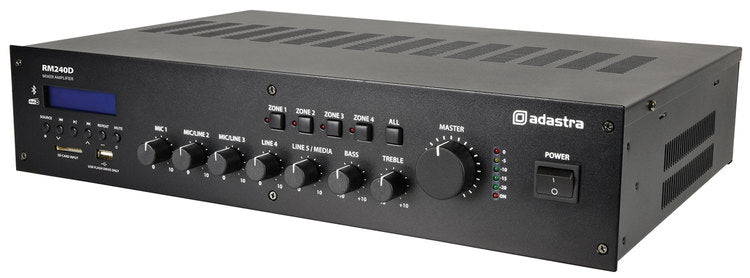

Adastra: 953.225UK, RM-series 100V Mixer-Amplifier, 240W, DAB+, Bluetooth, USB/SD

Product Overview & Key Benefits

The RM-series 100V Mixer-Amplifier is a robust 5-channel audio solution designed specifically for commercial sound installations. With its capability to power 100V line speakers or standard speakers down to a 4 Ohm load, this versatile unit is perfect for venues such as offices, restaurants, retail spaces, and hospitality environments. Its advanced features, including DAB+/FM radio, Bluetooth connectivity, and USB/SD playback, make it an all-in-one system for managing sound in public spaces, enabling a seamless audio experience.

Technical Specifications & Product Details

• Model:RM-series 100V Mixer-Amplifier
• Power Output:240W
• Weight:7.37kg
• Dimensions:433mm (W) x 320mm (D) x 88mm (H)

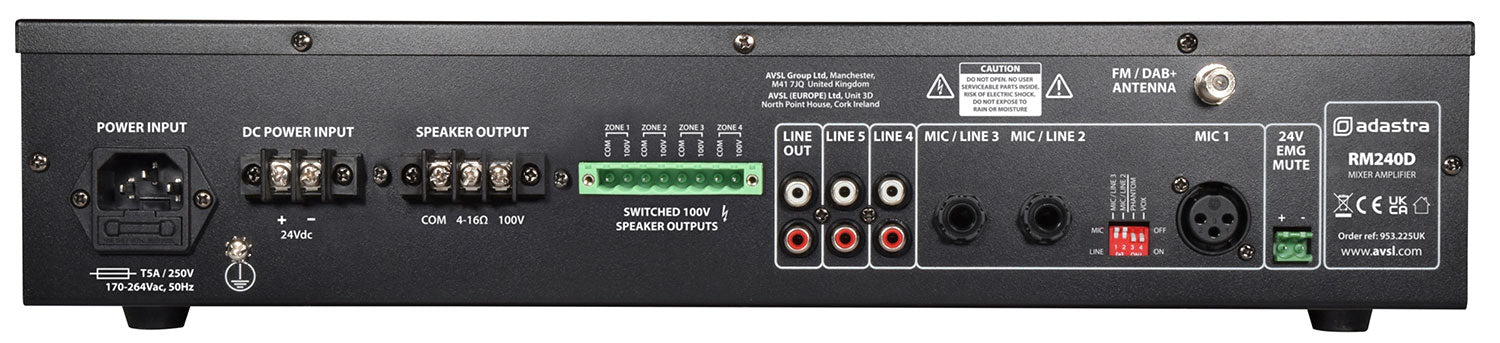

• Line Outputs:4 switched 100V outputs and 1 non-switched output
• Input Options:Mic XLR, 2 x mic/line jack, 2 x RCA line inputs
• Audio Sources:DAB+/FM tuner, USB/SD player, Bluetooth receiver
• Bluetooth Version:5.0
• Power Supply:170-264Vac, 50Hz (IEC)
• Phantom Power:+20V switchable for mic 1 XLR
• Emergency Control:24V contacts to mute all except Mic.1 when triggered

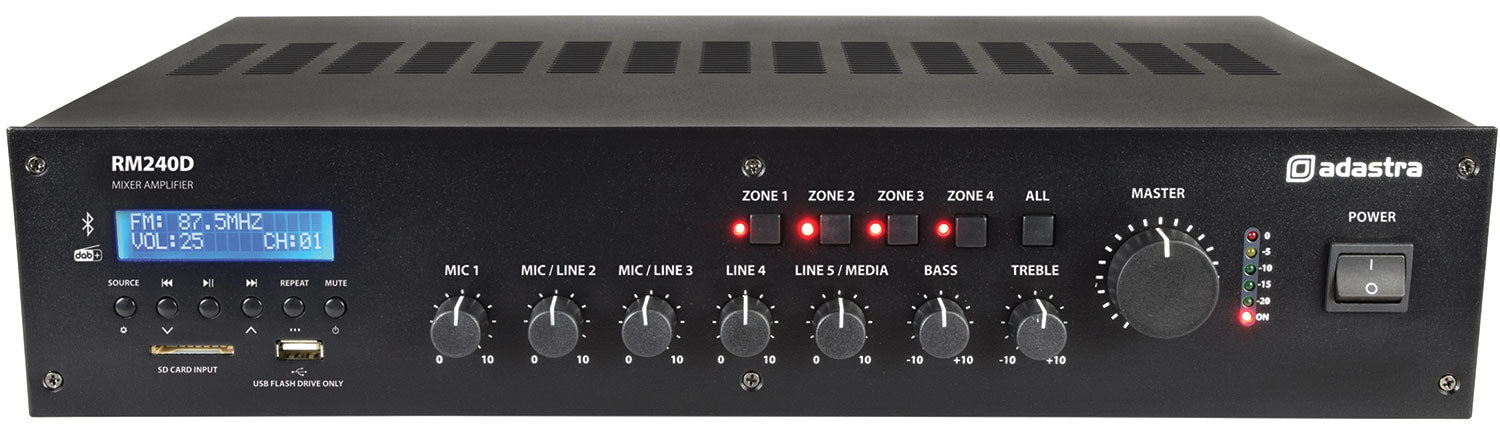

• Controls:Mic1, Mic/Line 2+3, Line 4+5, Bass, Treble, Master Volume
• THD:Less than 1.0%
• Fuse:T5A
• Equaliser:Bass at 100Hz ±10dB, Treble at 10kHz ±10dB

Ideal Uses & Applications

The RM-series 100V Mixer-Amplifier is particularly well-suited for:

• Commercial Buildings:Perfect for auditoriums, offices, and retail establishments needing efficient audio management.
• Hospitality Settings:Ideal for restaurants and hotels that benefit from background music or announcements with the voiceover functionality.
• Public Speaking:Utilizes the effective VOX feature, which automatically adjusts the music volume for clear announcements, making it an excellent choice for conferences and seminars.
• DIY Projects:Can be leveraged by hobbyists for creating customised audio solutions in large spaces like workshops or community centres.

Energy Efficiency & Cost Savings

The RM-series Mixer-Amplifier is not only designed to deliver exceptional audio performance but also to operate efficiently, helping to conserve energy. With its capability to manage power outputs effectively, businesses can save on electricity costs, making it an environmentally friendly option. This efficient operation can lead to substantial savings over time, especially in high-usage scenarios. The built-in emergency mute feature adds to its value by ensuring audio systems can be controlled appropriately during urgent situations, further supporting energy-saving practices.
