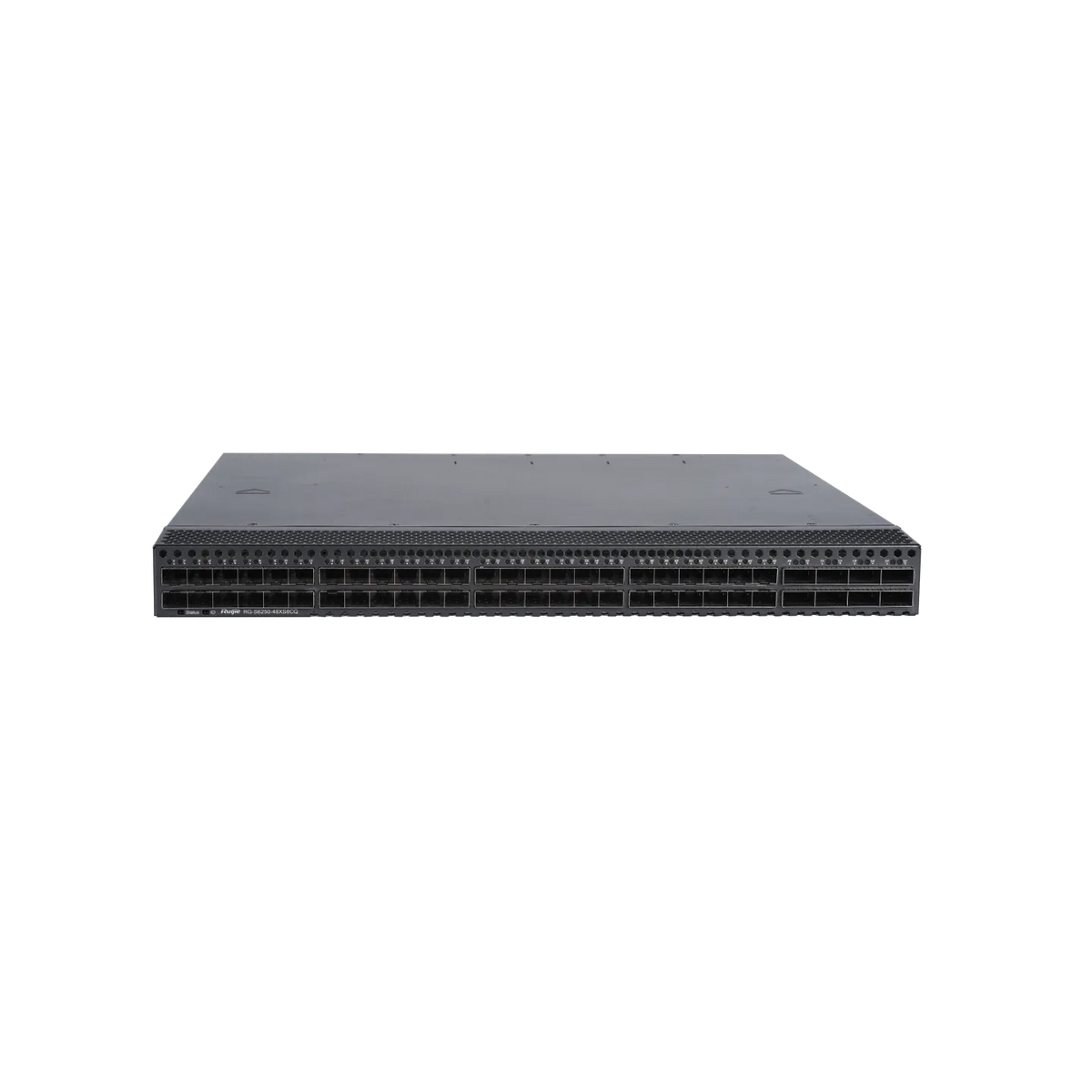

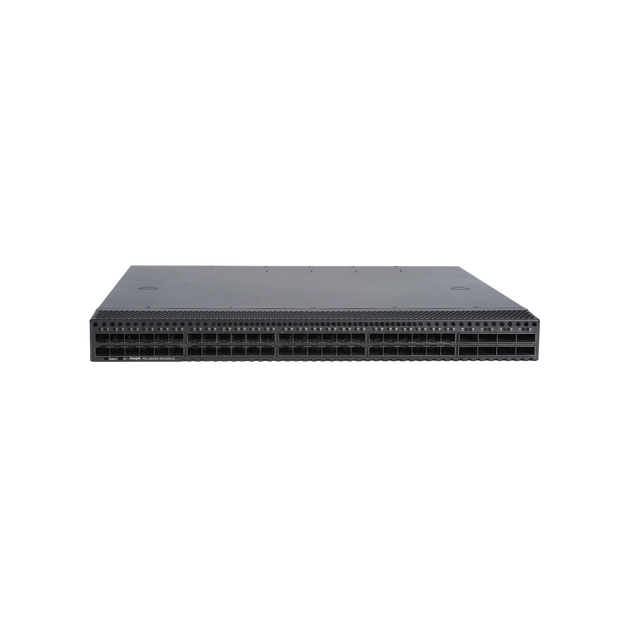

Ruijie RG-S6250-48XS8CQ 10GE Data Centre Access Switch, 48 x 10G SFP+, 8 x 100G QSFP28
About this product
The Ruijie RG-S6250-48XS8CQ is a 10GE data centre access switch with 48 x 1G/10G SFP+ ports and 8 x 40G/100G QSFP28 ports in 1 RU, for data centre networks that need M-LAG/VSU/de-stacking and a PFC/ECN-based lossless RDMA network. The chassis is equipped with two power modules (RG-PA550I-F) and four fan modules (M1EFAN II-F), and has a switching capacity of 2.56 Tbps.
Key features
- 48 x 1G/10G SFP+ ports
- 8 x 40G/100G QSFP28 ports
- Switching capacity: 2.56 Tbps; packet forwarding rate: 1920 Mpps
- Cross-device link aggregation (De-stacking/M-LAG/VSU) for device-level redundancy
- VXLAN tunneling technology
- Lossless Ethernet for zero packet loss during RDMA E2E communication
- Telemetry/gRPC/sFlow/SPAN-based network monitoring and automated O&M
- 1+1 power redundancy and fan redundancy
Frequently asked questions
Does the RG-S6250-48XS8CQ come with power supplies and fans?
Yes. The chassis is equipped with two power modules (RG-PA550I-F) and four fan modules (M1EFAN II-F).
How many ports does it have?
48 x 1G/10G SFP+ ports and 8 x 40G/100G QSFP28 ports, plus 1 x RJ45 console port, 1 x RJ45 MGMT port and 1 x USB 2.0 port.
How much power does it use?
Maximum power consumption is 300 W, typical 165 W and static 98 W.
How much rack space does it take?
1 RU, at 442 mm x 387 mm x 44 mm (W x D x H).
What airflow does it use?
Air cooling, front-to-rear airflow (port-side intake).
Does it support M-LAG and VSU?
Yes. It supports cross-device link aggregation (De-stacking/M-LAG/VSU) for device-level redundancy.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-S6250-48XS8CQ |
| Manufacturer Part Number (MPN) | RG-S6250-48XS8CQ |
| Service port | 48 x 1G/10G SFP+ ports, 8 x 40G/100G QSFP28 ports |
| Switching capacity | 2.56 Tbps |
| Packet forwarding rate | 1920 Mpps |
| Management port | 1 x RJ45 console port, 1 x RJ45 MGMT port |
| USB port | 1 x USB 2.0 port (Type A connector) |
| Module slot | 2 x power module slots, 4 x fan module slots |
| Supplied modules | Two power modules (RG-PA550I-F) and four fan modules (M1EFAN II-F) |
| Power consumption | Maximum power consumption: 300 W; Typical power consumption: 165 W; Static power consumption: 98 W |
| Power input (RG-PA550I-F, AC input) | Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz; Power port type: C14 |
| Dimensions (W x D x H) | 442 mm x 387 mm x 44 mm |
| Rack height | 1 RU |
| Unit weight | 5.6 kg (empty chassis); 8.2 kg (chassis installed with two power modules and four fan modules) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Cooling | Air cooling, front-to-rear airflow (port-side intake) |
| Virtualization | Virtual switching unit (VSU) |
| Jumbo frame | 9Kbytes |
| Series | RG-S6200 Series |
