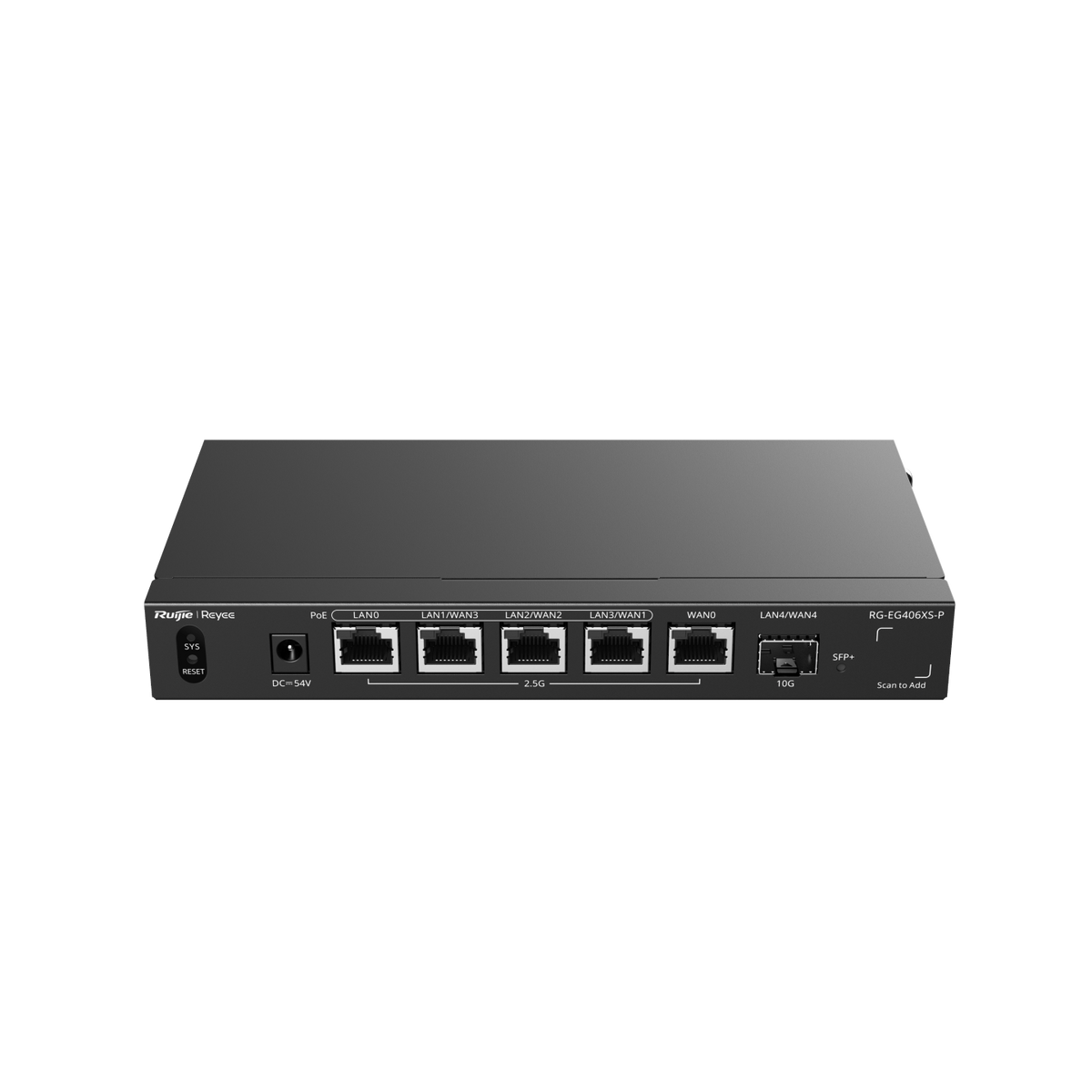

Ruijie RG-EG406XS-P 2.5G Cloud Managed PoE Router, 4 PoE/PoE+ Ports, 110 W PoE Budget
About this product
The Ruijie RG-EG406XS-P is a 5-port (4 PoE/PoE+) 2.5G cloud managed router with 1 x 10G port, supporting up to 400 concurrent clients and up to 100 IPsec VPN tunnels. Its applications include home environments (e.g., villas, large apartments, bungalows), small and medium offices, restaurants and multi-branch chains, and it is managed on Ruijie Cloud.
Key features
- 5 × 10/100/1000/2500BASE-T ports, 4 of them PoE/PoE+
- 1 × 10GE SFP+ port
- 110 W PoE budget
- Supports up to 400 concurrent clients
- Throughput of 2500 Mbps (Normal Mode) or 3500 Mbps (Turbo Mode)
- VPN with up to 100 tunnels for branches and remote employees
- Multi-WAN with smart load balancing
- Bandwidth management based on applications and users
Frequently asked questions
How many PoE ports does the RG-EG406XS-P have, and what is the PoE budget?
It has 4 PoE/PoE+ ports and a PoE budget of 110 W.
How many users can it handle?
The recommended number of concurrent clients is 400.
What is its throughput?
2500 Mbps in Normal Mode and 3500 Mbps in Turbo Mode.
Does it have a 10G uplink?
Yes. It has 1 × 10GE SFP+ port alongside 5 × 10/100/1000/2500BASE-T ports.
How many VPN tunnels does it support?
Up to 100 IPsec VPN tunnels, for branches and remote employees.
How is it mounted?
The RG-EG406XS-P mounting option is desk; it measures 202 mm x 108 mm x 28 mm.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-EG406XS-P |
| Manufacturer Part Number (MPN) | RG-EG406XS-P |
| Number of 10/100/1000/2500BASE-T ports | 5 |
| PoE ports | 4 PoE/PoE+ |
| Number of 10GE SFP+ ports | 1 |
| Number of fixed LAN ports | 1 |
| Number of fixed WAN ports | 1 |
| PoE budget | 110 W |
| CPU | Quad-core processor, 2.0 GHz clock frequency per core |
| Flash memory | 256 MB |
| RAM | 1 GB |
| Recommended number of concurrent clients | 400 |
| Throughput | 3500 Mbps (Turbo Mode); 2500 Mbps (Normal Mode) |
| IPsec VPN tunnels | 100 |
| Product dimensions (W x D x H) | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.) |
| Weight | 0.62 kg (1.37 lbs) |
| Mounting options | Desk |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
