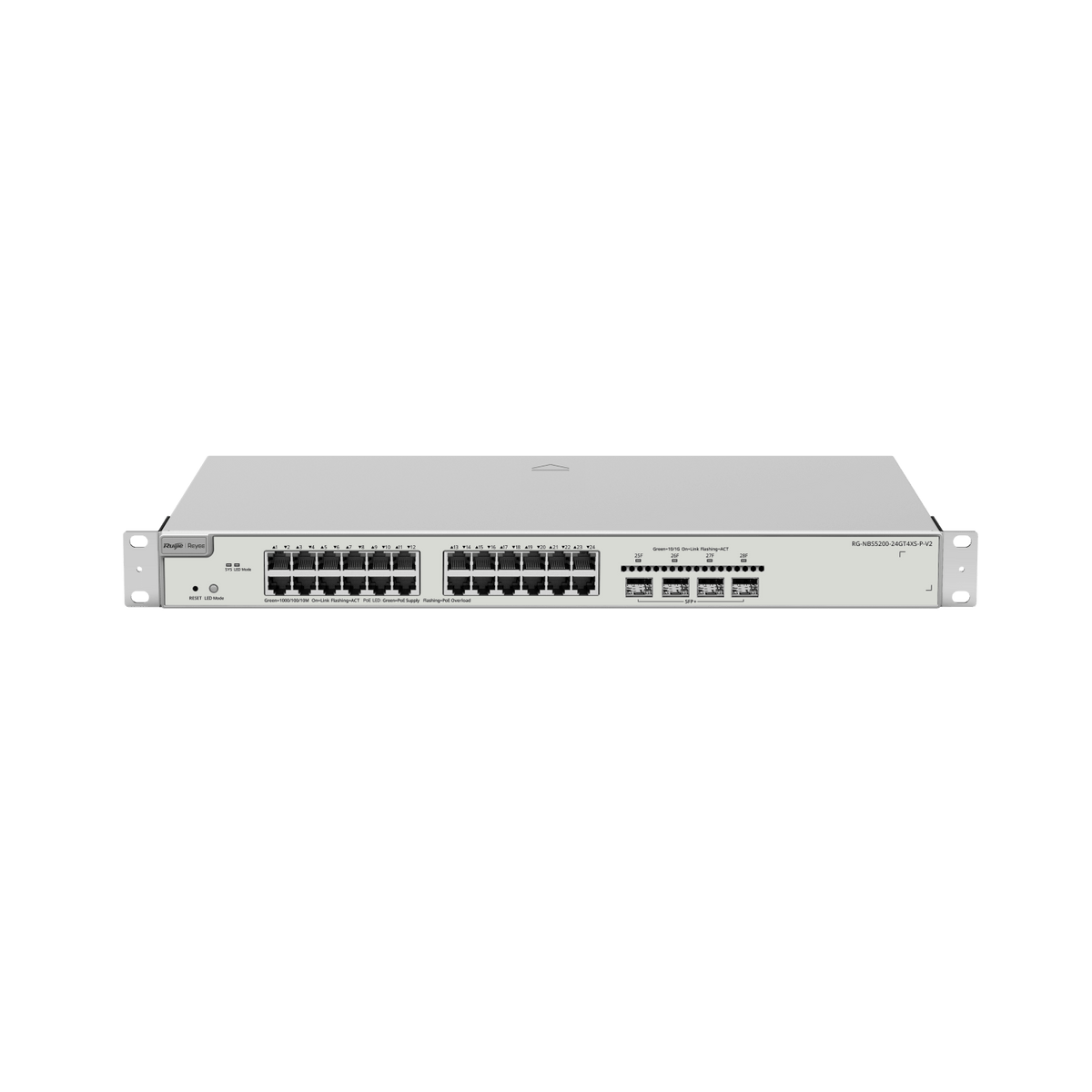

Ruijie RG-NBS5200-24GT4XS-P-V2 24-port Gigabit Layer 3 PoE Switch, 4 SFP+ Uplink, 370W PoE Budget
About this product
The Ruijie RG-NBS5200-24GT4XS-P-V2 is a 24-port Gigabit Layer 3 managed PoE switch with 4 SFP+ uplink ports, for enterprise, hospitality, factory, education and retail networks. All 24 RJ45 ports are PoE/PoE+ out ports sharing a 370 W PoE budget, and the switch can be managed on Ruijie Cloud.
Key features
- 24 × 10/100/1000BASE-T ports, all PoE/PoE+ out
- 4 × 10GE SFP+ uplink ports
- 370 W PoE budget
- Layer 3 switch: 128 Gbps(bit/s) switching capacity, 96 Mpps forwarding rate
- 6 kV surge protection, reducing the possibility of port damage
- PoE watchdog, port isolation and broadcast storm control
- Management on Ruijie Cloud
- PWM fan on the V2 model for quieter performance
Frequently asked questions
What is the PoE budget of the RG-NBS5200-24GT4XS-P-V2?
The PoE budget is 370 W, shared by 24 PoE/PoE+ out ports.
What uplink ports does it have?
4 × 10GE SFP+ ports, alongside 24 × 10/100/1000BASE-T RJ45 ports.
Is it a Layer 3 switch?
Yes. Its product category is Layer 3, with 128 Gbps(bit/s) switching capacity and a 96 Mpps forwarding rate.
Can it be managed from the cloud?
Yes, it supports management on Ruijie Cloud.
What surge protection does it have?
Service ports have ±6 kV surge protection for common mode, and the power connector has ±6 kV for both common mode and differential mode.
What is different about the V2 model?
The V2 model features a PWM fan, delivering quieter performance.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS5200-24GT4XS-P-V2 |
| Manufacturer Part Number (MPN) | RG-NBS5200-24GT4XS-P-V2 |
| Product Category | Layer 3 |
| Total number of RJ45 ports | 24 |
| Total number of optical ports | 4 |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100/1000BASE-T ports | 24 |
| Number of PoE Out ports | 24 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 96 Mpps |
| Switching capacity | 128 Gbps(bit/s) |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Altitude | Operating altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.); Storage altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.) |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±6 kV for both common mode and differential mode |
| PoE watchdog | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| Port isolation | Yes |
| Broadcast storm control | Yes |
