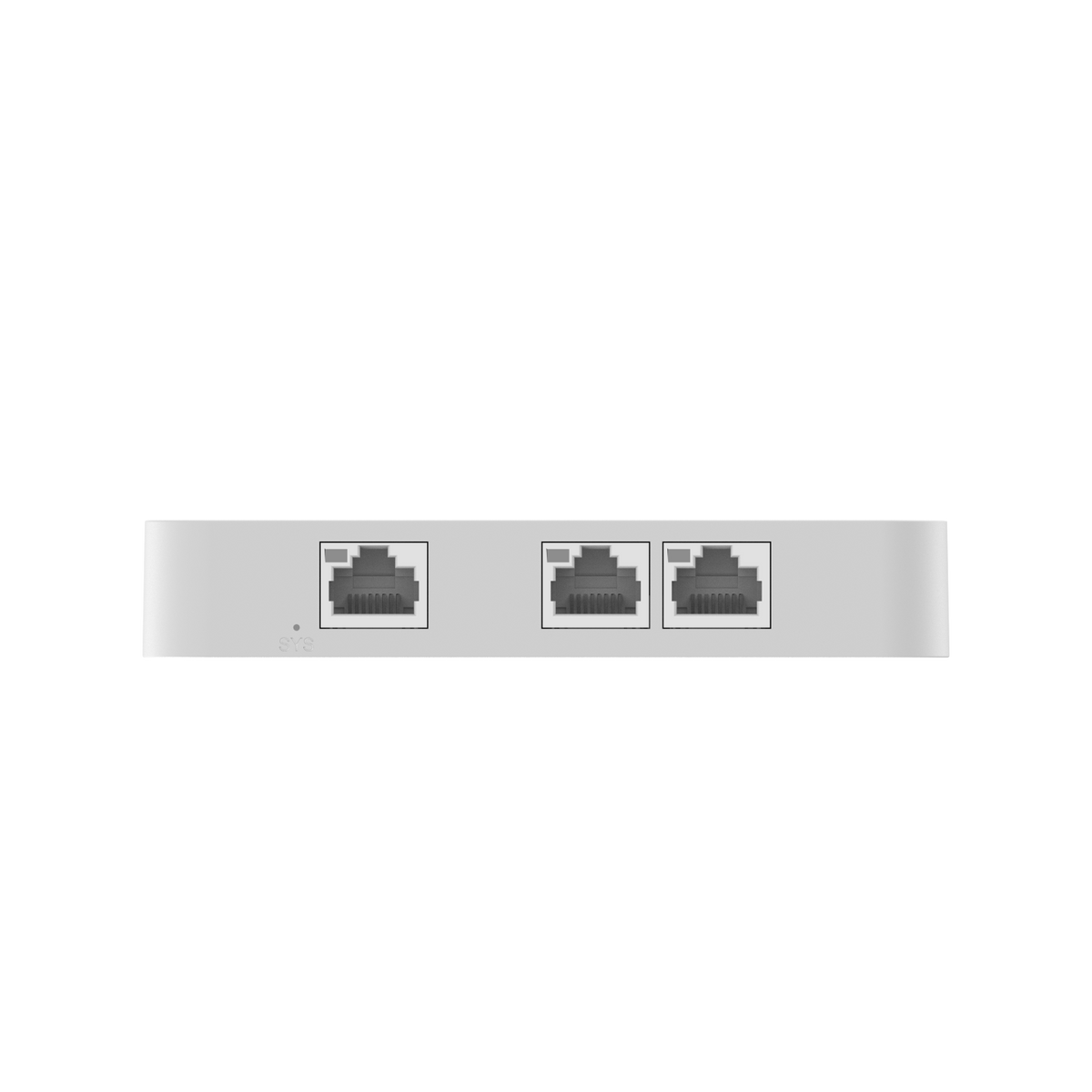

Ruijie RG-ES103F-P 3-Port PoE Unmanaged Switch, 2 PoE+ Ports, 30 W PoE Budget
£
13
48
(Incl. VAT)
RRP: £16.18
About this product
The Ruijie RG-ES103F-P is a 3-port PoE unmanaged switch with 2 x 10/100BASE-T PoE+ ports and 1 x 10/100BASE-T PoE in port, for up to 2 concurrent camera connections. It is plug and play and has a PoE budget of 30 W.
Key features
- 2 x 10/100BASE-T PoE+ ports
- 1 x 10/100BASE-T PoE in port (PoE input)
- Up to 2 concurrent camera connections
- PoE budget of 30 W
- Plug and play, unmanaged
- Switching capacity 0.6 Gbps(Gbit/s), forwarding rate 0.45 Mpps
Frequently asked questions
How many cameras can the RG-ES103F-P support?
It supports up to 2 concurrent camera connections through its 2 x 10/100BASE-T PoE+ ports.
What is the PoE budget?
The PoE budget is 30 W.
Does it need any configuration?
No. It is an unmanaged switch and is plug and play.
Does it have a PoE input?
Yes. It has 1 x 10/100BASE-T PoE in port.
What port speed does it run at?
All 3 ports are 10/100BASE-T.
-
Download
- RG-ES103F-P Tech Sheet
£
13
48
RRP: £16.18
Save £2.70
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-ES103F-P
Manufacturer Part Number (MPN)
RG-ES103F-P
Total number of RJ45 ports
3
Number of 10/100BASE-T ports
3
Ports
2 x 10/100BASE-T PoE+ Ports, 1 x 10/100BASE-T PoE In Port
Number of PoE Out ports
2
Number of PoE/PoE+ Out ports
2
PoE budget
30 W
PoE power pins
1-2(+), 3-6(-)
Forwarding rate
0.45 Mpps
Switching capacity
0.6 Gbps(Gbit/s)
Operating temperature
0℃~40°C
Mounting
Wall/Desk
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES103F-P |
| Manufacturer Part Number (MPN) | RG-ES103F-P |
| Total number of RJ45 ports | 3 |
| Number of 10/100BASE-T ports | 3 |
| Ports | 2 x 10/100BASE-T PoE+ Ports, 1 x 10/100BASE-T PoE In Port |
| Number of PoE Out ports | 2 |
| Number of PoE/PoE+ Out ports | 2 |
| PoE budget | 30 W |
| PoE power pins | 1-2(+), 3-6(-) |
| Forwarding rate | 0.45 Mpps |
| Switching capacity | 0.6 Gbps(Gbit/s) |
| Operating temperature | 0℃~40°C |
| Mounting | Wall/Desk |
