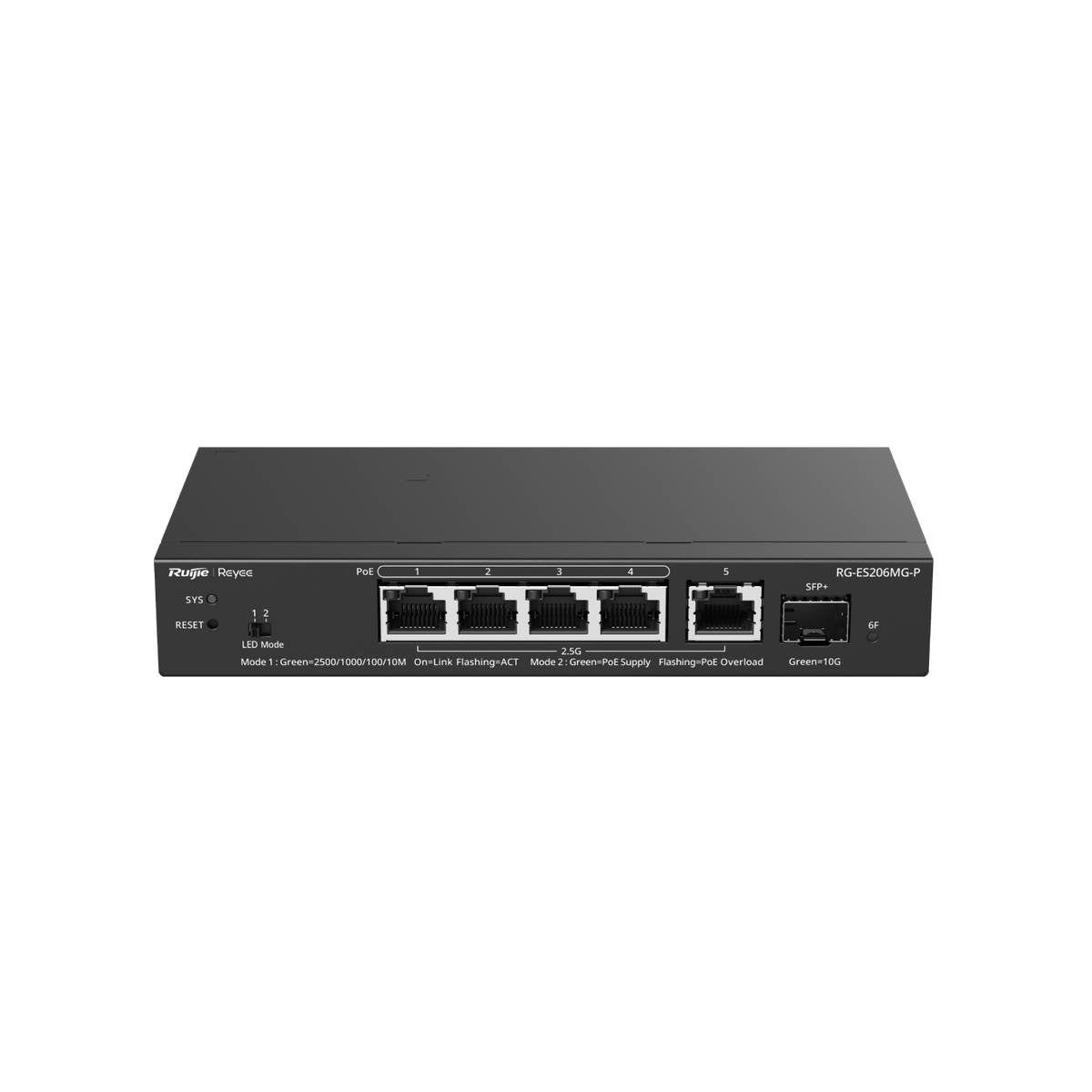

Ruijie RG-ES206MG-P 5-Port 2.5G Cloud Managed PoE Switch, 4 PoE+ Out Ports, 70 W PoE Budget
About this product
The Ruijie RG-ES206MG-P is a 5-port 2.5G cloud managed PoE switch with 1 x 10G uplink: four 10/100/1000/2500BASE-T PoE+ ports, one 10/100/2500BASE-T port and one 10GE SFP+ port. Its 4 PoE Out ports support IEEE 802.3 af/at standards from a 70 W PoE budget, and it is managed through Ruijie Cloud.
Key features
- 4 x 10/100/1000/2500BASE-T PoE+ ports
- 1 x 10/100/2500BASE-T port
- 1 x 10GE SFP+ port
- 4 PoE Out ports supporting IEEE 802.3 af/at standards
- 70 W PoE budget
- Aggregation of up to 4 ports
- Layer 2 switch with lifetime free cloud management on Ruijie Cloud
- PoE watchdog and port isolation
Frequently asked questions
How many PoE ports does the Ruijie RG-ES206MG-P have?
4 PoE Out ports supporting IEEE 802.3 af/at standards, sharing a 70 W PoE budget.
What is the uplink on the RG-ES206MG-P?
1 x 10GE SFP+ port.
Are all the RJ45 ports 2.5G?
Yes. The switch has 5 x 2.5G ports: 4 x 10/100/1000/2500BASE-T PoE+ ports and 1 x 10/100/2500BASE-T port.
How is the RG-ES206MG-P managed?
It is a Layer 2 cloud managed switch, with lifetime free cloud management on Ruijie Cloud anytime, anywhere.
Does the RG-ES206MG-P support link aggregation?
Yes, aggregation of up to 4 ports.
Does the RG-ES206MG-P have PoE watchdog?
Yes. PoE watchdog is supported, and so is port isolation.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES206MG-P |
| Manufacturer Part Number (MPN) | RG-ES206MG-P |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 5 |
| Total number of optical ports | 1 |
| Number of 10GE SFP+ ports | 1 |
| Number of 10/100/1000/2500BASE-T ports | 5 |
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 |
| PoE standards | IEEE 802.3 af/at |
| PoE budget | 70 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 33.75 Mpps |
| Switching capacity | 45 Gbps (bit/s) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| PoE watchdog | Yes |
| Port isolation | Yes |
