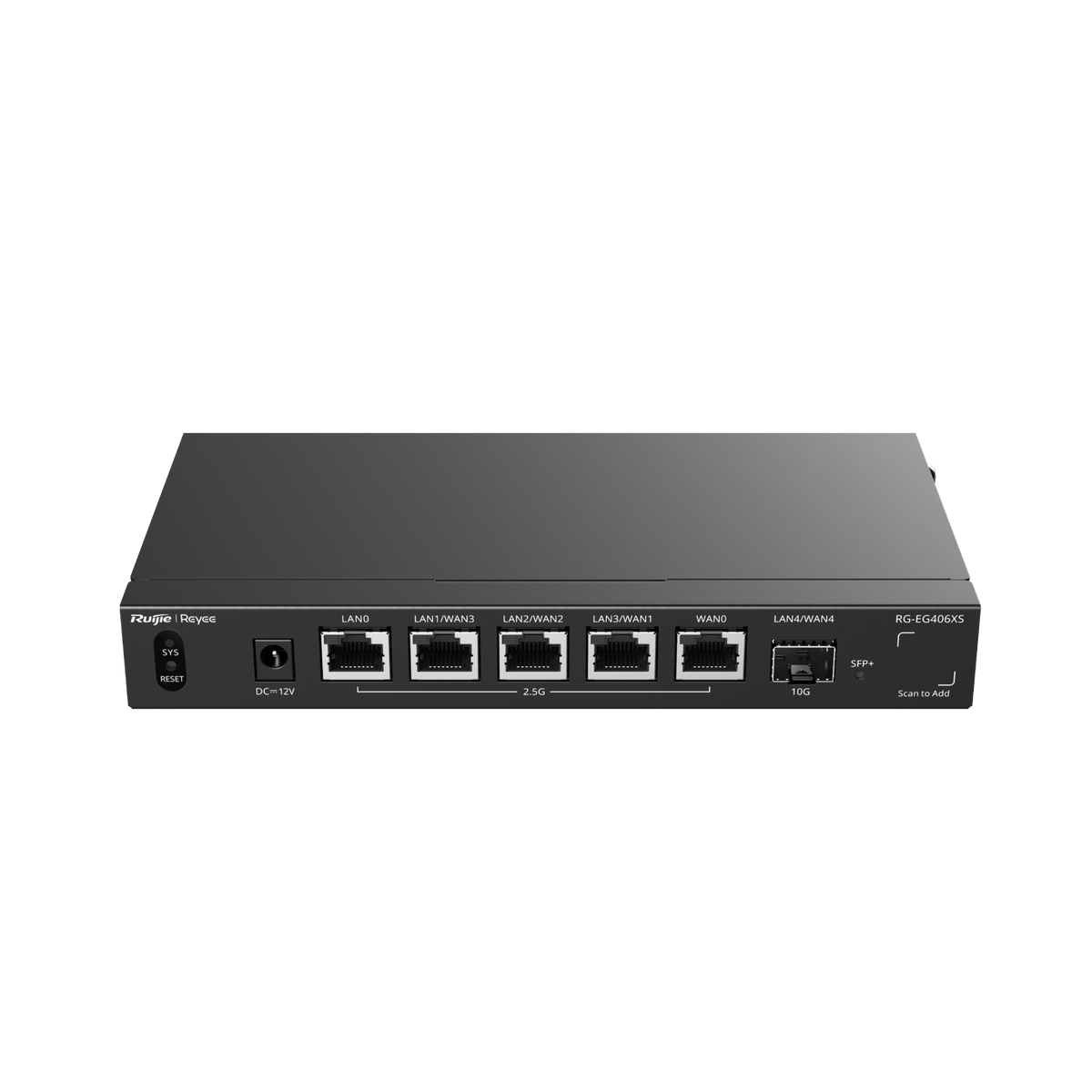

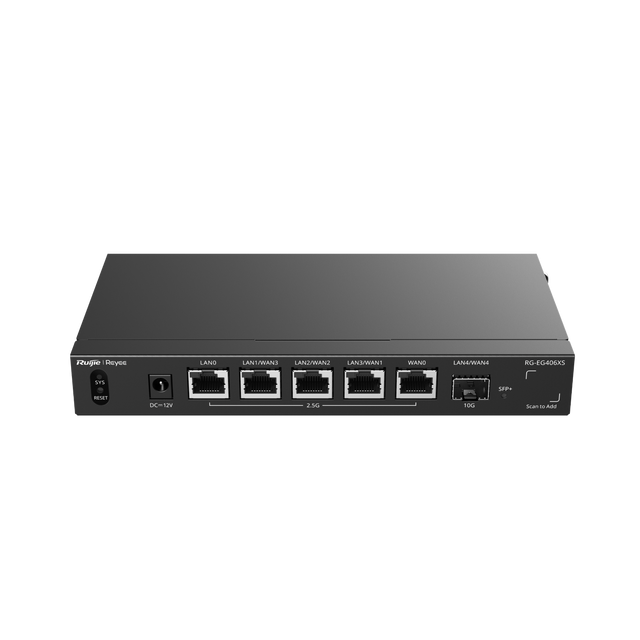

Ruijie RG-EG406XS 5-Port 2.5G Cloud Managed Router, 1 x 10G Port, Up to 100 VPN Tunnels
About this product
The Ruijie RG-EG406XS is a 5-Port 2.5G Cloud Managed Router with 1 x 10G port, supporting up to 400 concurrent clients and up to 100 VPN tunnels for branches and remote employees. Its application scenarios include home environments (e.g., villas, large apartments, bungalows), small and medium offices, restaurants and multi-branch chains, with management on Ruijie Cloud anytime, anywhere.
Key features
- 5 × 10/100/1000/2500BASE-T ports
- 1 × 10GE SFP+ port
- Supporting up to 400 concurrent clients
- Throughput: 2500 Mbps (Normal Mode), 3500 Mbps (Turbo Mode)
- Up to 100 IPsec VPN tunnels
- Multi-WAN with smart load balancing
- Bandwidth management based on applications and users
- Quad-core processor, 2.0 GHz clock frequency per core
Frequently asked questions
What ports does the RG-EG406XS have?
It has 5 × 10/100/1000/2500BASE-T ports and 1 × 10GE SFP+ port, with 1 fixed LAN port and 1 fixed WAN port.
How many users can it handle?
The recommended number of concurrent clients is 400.
What throughput does it deliver?
Throughput is 2500 Mbps in Normal Mode and 3500 Mbps in Turbo Mode.
Does it support VPN?
Yes. It supports up to 100 IPsec VPN tunnels, for branches and remote employees.
Can it be rack-mounted?
Yes. Mounting options are desk or rack, and the device occupies 1 U of the rack space.
How is it managed?
It is a cloud managed router, managed on Ruijie Cloud anytime, anywhere.
-
Download
- RG-EG406XS Tech Sheet
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-EG406XS |
| Manufacturer Part Number (MPN) | RG-EG406XS |
| Number of 10/100/1000/2500BASE-T ports | 5 |
| Number of 10GE SFP+ ports | 1 |
| Number of fixed LAN ports | 1 |
| Number of fixed WAN ports | 1 |
| CPU | Quad-core processor, 2.0 GHz clock frequency per core |
| Flash memory | 256 MB |
| RAM | 1 GB |
| Recommended number of concurrent clients | 400 |
| Throughput | 3500 Mbps (Turbo Mode), 2500 Mbps (Normal Mode) |
| IPsec VPN tunnels | 100 |
| Product dimensions (W x D x H) | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.) |
| Weight | 0.61 kg (1.34 lbs) |
| Mounting options | Desk/Rack (occupies 1 U of the rack space) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
