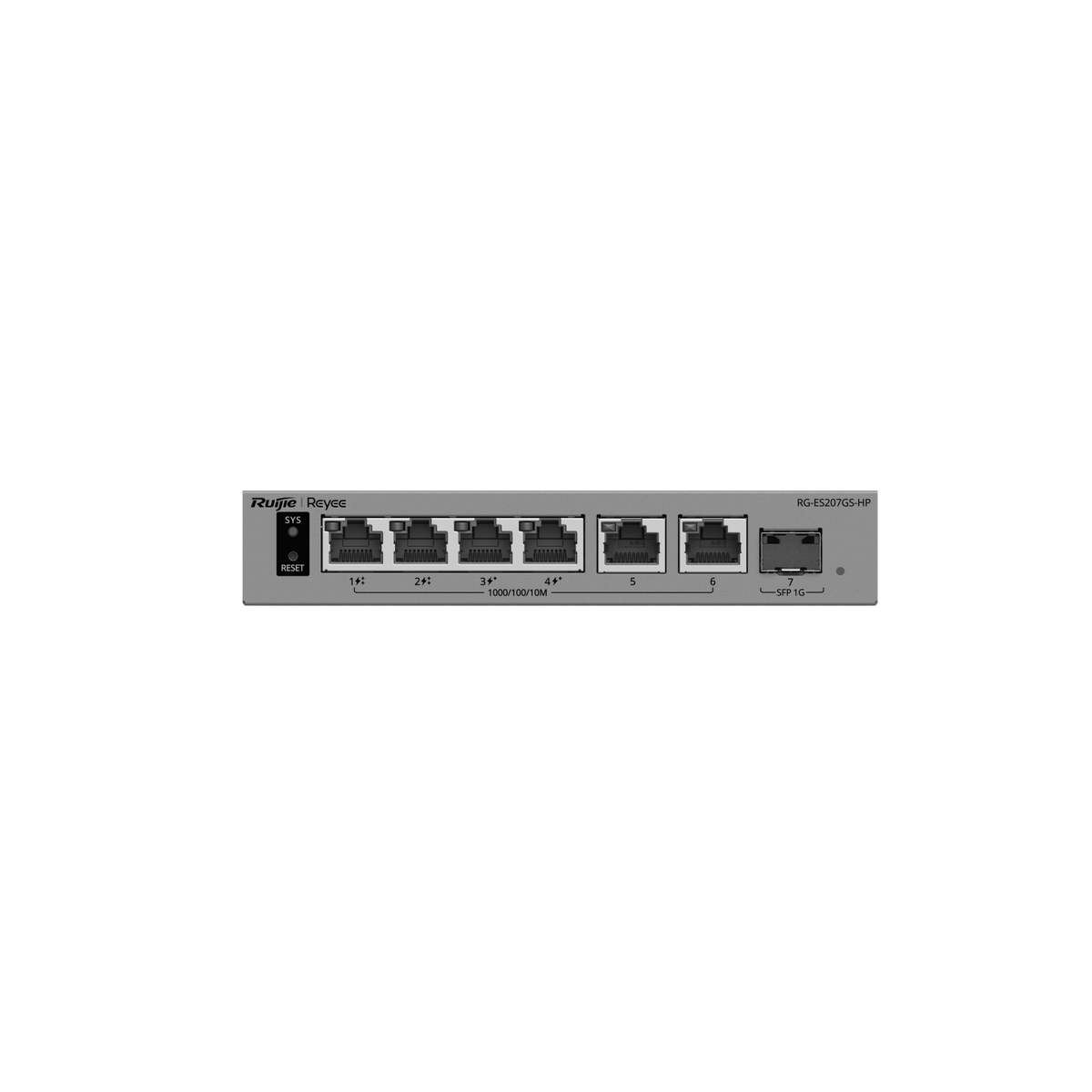

Ruijie RG-ES207GS-HP 6-Port Gigabit Cloud-Managed PoE Switch, 120 W PoE Budget, 1-Port SFP
About this product
The Ruijie RG-ES207GS-HP is a 6-port Gigabit smart cloud-managed PoE switch with 1-port SFP, for CCTV, office, hotel, factory and retail networks. It has 2 x 10/100/1000BASE-T PoE++ ports, 2 x 10/100/1000BASE-T PoE+ ports, 2 x 1GE ports and 1 x 1GE SFP port, with a PoE budget of 120 W.
Key features
- 2 x 10/100/1000BASE-T PoE++ ports and 2 x 10/100/1000BASE-T PoE+ ports
- 2 x 1GE ports plus 1 x 1GE SFP port
- PoE budget of 120 W
- IPC recognition for CCTV networks
- Perpetual PoE and PoE watchdog
- Lifetime management on Ruijie Cloud, anytime and anywhere
- Port isolation
- Switching capacity of 14 Gbps(bit/s) and forwarding rate of 10.42 Mpps
Frequently asked questions
How many PoE ports does the Ruijie RG-ES207GS-HP have?
It has 4 PoE out ports: 2 x 10/100/1000BASE-T PoE++ ports and 2 x 10/100/1000BASE-T PoE+ ports.
What is the PoE budget of the RG-ES207GS-HP?
The PoE budget is 120 W.
Does the RG-ES207GS-HP have an SFP port?
Yes, it has 1 x 1GE SFP port in addition to its 6 RJ45 ports.
How is the RG-ES207GS-HP managed?
It is a smart cloud-managed switch, with lifetime management on Ruijie Cloud anytime, anywhere.
Does it support PoE watchdog?
Yes. PoE watchdog is supported, and Ruijie also lists Perpetual PoE among its highlight features.
What operating temperature is it rated for?
0°C to +40°C (32°F to 104°F).
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES207GS-HP |
| Manufacturer Part Number (MPN) | RG-ES207GS-HP |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 6 |
| Number of 10/100/1000BASE-T ports | 6 |
| Total number of optical ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 |
| Number of PoE/PoE+/PoE++ Out ports | 2 |
| PoE budget | 120 W |
| PoE power pins | Port 1-2: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 3-4: 1–2 (+), 3–6 (-) |
| Forwarding rate | 10.42 Mpps |
| Switching capacity | 14 Gbps(bit/s) |
| Operating temperature | 0°C to +40°C (32°F to 104°F) |
| PoE watchdog | Yes |
| Port isolation | Yes |
