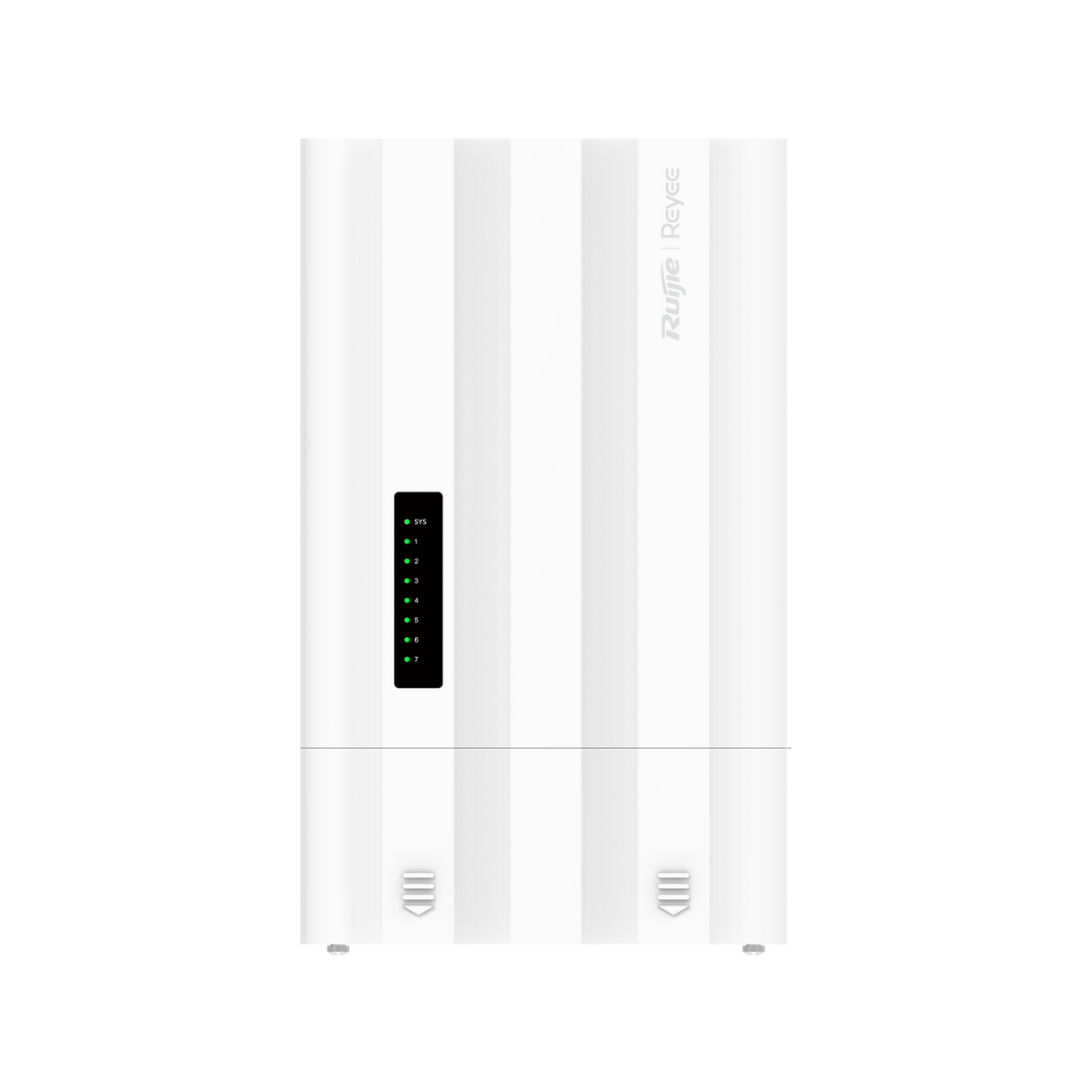

Ruijie RG-ES207GS-AC-OD 7-Port Gigabit Outdoor Switch, 4 PoE/PoE+ Out Ports, 60 W PoE Budget
About this product
The Ruijie RG-ES207GS-AC-OD is a 7-port Gigabit outdoor switch with AC input, with 5 x 1G RJ45 ports and 2 x SFP uplink ports; Ruijie lists CCTV, parks and highways among its applications. Four of its ports are PoE/PoE+ out ports sharing a 60 W PoE budget, and it carries an IP65 rating with ±8 kV PoE surge protection.
Key features
- 5 x 10/100/1000BASE-T RJ45 ports
- 2 x 1GE SFP uplink ports, for ERPS
- 4 PoE/PoE+ out ports with a 60 W PoE budget
- IP65 rating and ±8 kV PoE surge protection
- Operating temperature –30°C to +65°C (–22°F to 149°F)
- Switching capacity 14 Gbps(bit/s); forwarding rate 10.42 Mpps
- PoE watchdog and port isolation
Frequently asked questions
How many PoE ports does the RG-ES207GS-AC-OD have?
It has 4 PoE/PoE+ out ports with a 60 W PoE budget.
Can the RG-ES207GS-AC-OD be installed outdoors?
It is an outdoor switch with an IP65 rating and ±8 kV PoE surge protection, and an operating temperature of –30°C to +65°C (–22°F to 149°F).
What uplink ports does it have?
2 x 1GE SFP ports, which Ruijie lists for ERPS.
What is its switching capacity?
Switching capacity is 14 Gbps(bit/s) with a forwarding rate of 10.42 Mpps.
What software features does it support?
It is a Layer 2 switch with PoE watchdog and port isolation.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES207GS-AC-OD |
| Manufacturer Part Number (MPN) | RG-ES207GS-AC-OD |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 5 |
| Number of 10/100/1000BASE-T ports | 5 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of PoE/PoE+ Out ports | 4 |
| PoE budget | 60 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 10.42 Mpps |
| Switching capacity | 14 Gbps(bit/s) |
| Operating temperature | –30°C to +65°C (–22°F to 149°F) |
| Weatherproofing | IP65 Rating, ±8 kV PoE Surge Protection |
| PoE watchdog | Yes |
| Port isolation | Yes |
