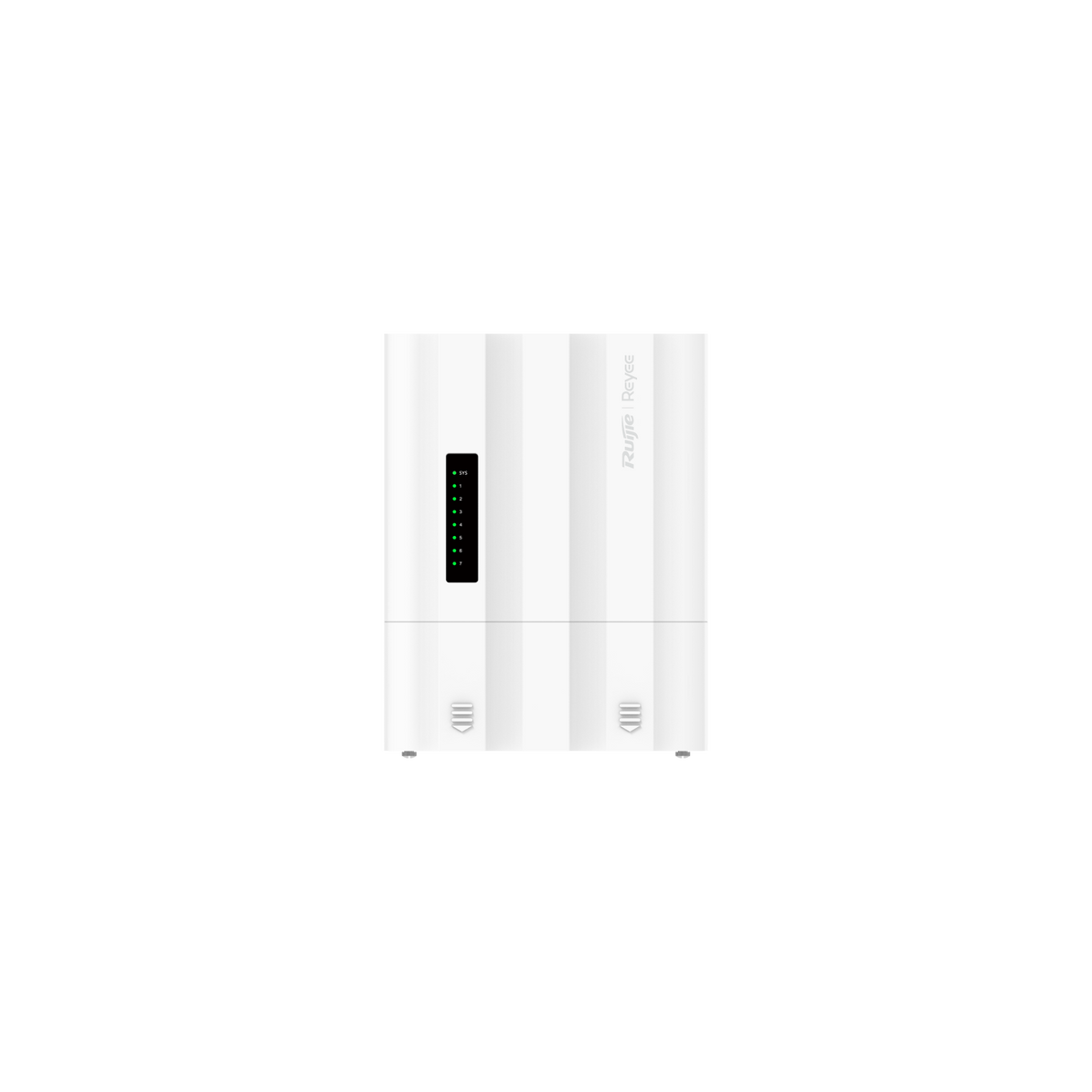

Ruijie RG-ES207GS-PI-OD 7-Port Gigabit Outdoor Switch, PoE/DC Input, IP65
About this product
The Ruijie RG-ES207GS-PI-OD is a 7-port Gigabit outdoor switch with PoE/DC input, with 5 x 1G RJ45 ports and 2 x SFP uplink ports, and weatherproofing with an IP65 rating and ±8 kV PoE surge protection. It runs from PoE or 12 V DC input, feeds up to 4 PoE/PoE+ out ports with a PoE budget that depends on its input, and is aimed at CCTV, parks, highways, etc.
Key features
- 5 x 1G RJ45 ports and 2 x SFP uplink ports
- PoE or 12 V DC input
- 4 PoE/PoE+ out ports
- PoE budget: PoE input (PoE++) at 90 W: 60 W; PoE input (PoE++) at 60 W: 40 W; PoE input (PoE+) at 30 W: 19 W; PoE input (PoE) at 15.4 W: 6 W; DC input: 0 W
- 1 PoE In port: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++)
- IP65 rating with ±8 kV PoE surge protection
- 2 x SFP ports for ERPS
- Operating temperature –30°C to +65°C (-22°F to 149°F)
Frequently asked questions
How is the RG-ES207GS-PI-OD powered?
By PoE or 12 V DC input. Its 1 PoE In port supports IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++).
How much PoE can its out ports supply?
It depends on the input: PoE input (PoE++) at 90 W: 60 W; PoE input (PoE++) at 60 W: 40 W; PoE input (PoE+) at 30 W: 19 W; PoE input (PoE) at 15.4 W: 6 W; DC input: 0 W. On DC input the out ports supply no PoE.
How many PoE out ports does it have?
4 PoE/PoE+ out ports, alongside 5 x 1G RJ45 ports and 2 x SFP uplink ports in total.
Can it be installed outdoors?
Yes. It is an outdoor switch with an IP65 rating, ±8 kV PoE surge protection and an operating temperature of –30°C to +65°C (-22°F to 149°F).
What are the SFP ports for?
It has 2 x 1GE SFP ports, used as uplink ports and for ERPS.
What switching performance does it have?
A forwarding rate of 10.42 Mpps and switching capacity of 14 Gbps(bit/s), as a Layer 2 switch.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES207GS-PI-OD |
| Manufacturer Part Number (MPN) | RG-ES207GS-PI-OD |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 5 |
| Number of 10/100/1000BASE-T ports | 5 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of PoE/PoE+ Out ports | 4 |
| PoE budget | PoE input (PoE++) at 90 W: 60 W; PoE input (PoE++) at 60 W: 40 W; PoE input (PoE+) at 30 W: 19 W; PoE input (PoE) at 15.4 W: 6 W; DC input: 0 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Number of PoE In ports | 1 |
| PoE In standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) |
| Power input | PoE or 12 V DC |
| Forwarding rate | 10.42 Mpps |
| Switching capacity | 14 Gbps(bit/s) |
| Operating temperature | –30°C to +65°C (-22°F to 149°F) |
| Weatherproofing | IP65 Rating, ±8 kV PoE Surge Protection |
| PoE watchdog | Yes |
| Port isolation | Yes |
