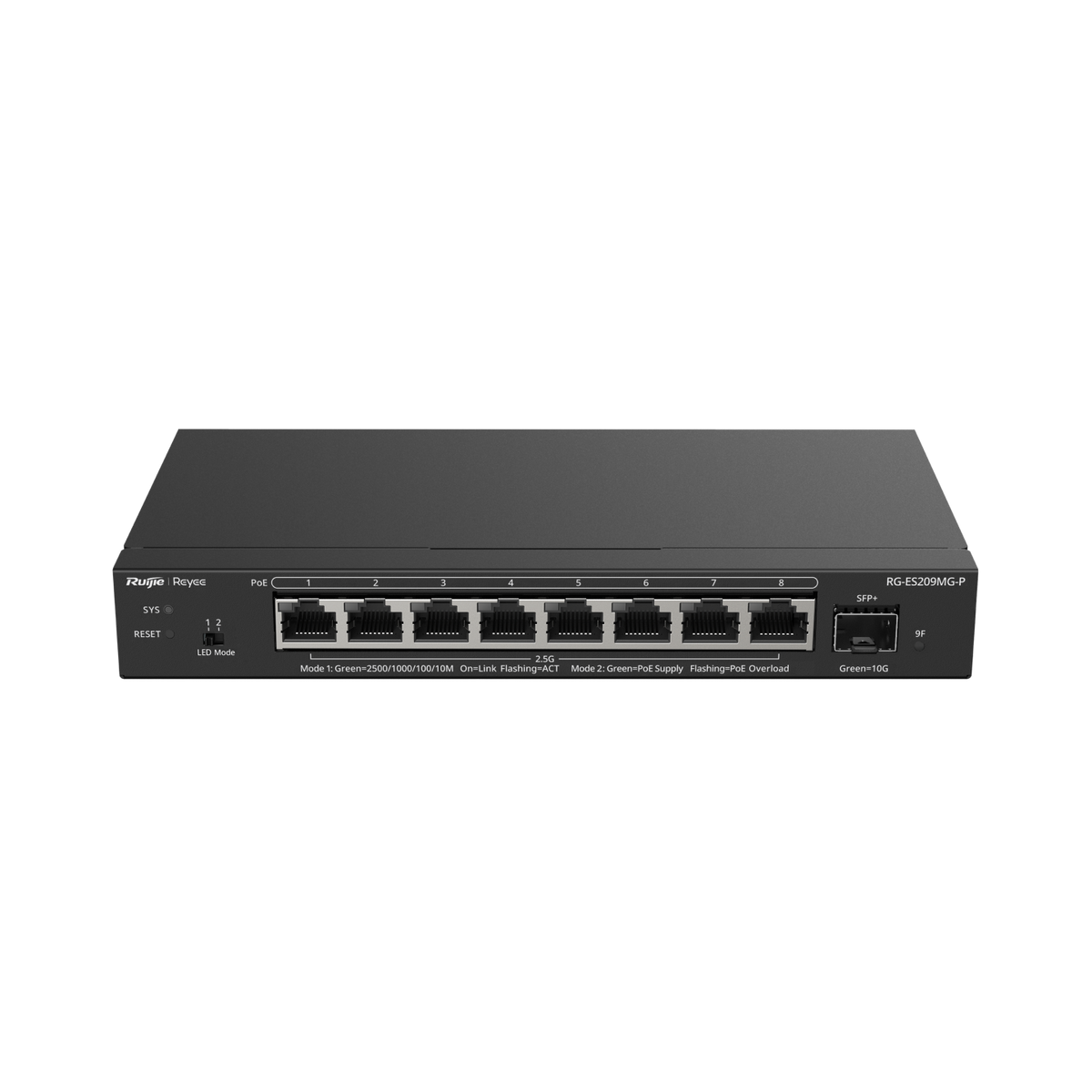

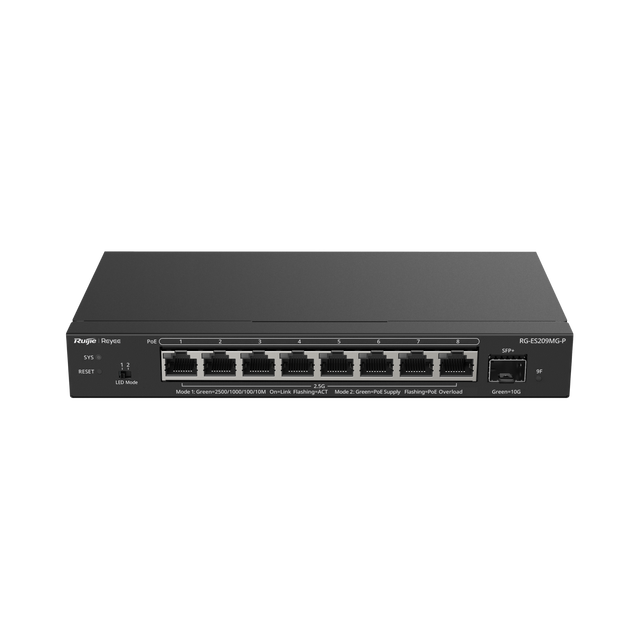

Ruijie RG-ES209MG-P 8-Port 2.5G Cloud Managed PoE Switch, 1 x 10G Uplink, 130 W PoE Budget
About this product
The Ruijie RG-ES209MG-P is an 8-port 2.5G cloud managed PoE switch with 8 x 10/100/1000/2500BASE-T PoE+ ports, 1 x 10GE SFP+ uplink port and a 130 W PoE budget. It is a Layer 2 switch for PoE networks, with its PoE Out ports supporting IEEE 802.3 af/at standards, and it can be managed on Ruijie Cloud anytime, anywhere.
Key features
- 8 x 10/100/1000/2500BASE-T PoE+ ports
- 1 x 10GE SFP+ port as a 10G uplink
- 8 x PoE Out ports supporting IEEE 802.3 af/at standards, 130 W PoE budget
- Aggregation of up to 4 ports
- Cloud management on Ruijie Cloud anytime, anywhere
- Switching capacity 60 Gbps (bit/s), forwarding rate 45 Mpps
- PoE watchdog and port isolation
- Layer 2 product category
Frequently asked questions
What is the PoE budget of the RG-ES209MG-P?
The PoE budget is 130 W, across 8 PoE Out ports supporting IEEE 802.3 af/at standards.
What uplink does it have?
It has 1 x 10GE SFP+ port as its 10G uplink.
How fast are the access ports?
The RG-ES209MG-P has 8 x 2.5G ports: 8 x 10/100/1000/2500BASE-T PoE+ ports.
How is the switch managed?
It is a cloud managed switch: it can be managed on Ruijie Cloud anytime, anywhere.
Can ports be aggregated?
Yes. Aggregation of up to 4 ports is supported.
What operating temperature is it rated for?
The operating temperature is 0°C to 40°C (32°F to 104°F).
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES209MG-P |
| Manufacturer Part Number (MPN) | RG-ES209MG-P |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 8 |
| Total number of optical ports | 1 |
| Number of 10GE SFP+ ports | 1 |
| Number of 10/100/1000/2500BASE-T ports | 8 |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| PoE standards | IEEE 802.3 af/at |
| PoE budget | 130 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Port aggregation | Up to 4 ports |
| Forwarding rate | 45 Mpps |
| Switching capacity | 60 Gbps (bit/s) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| PoE watchdog | Yes |
| Port isolation | Yes |
| Cloud management | Ruijie Cloud |
