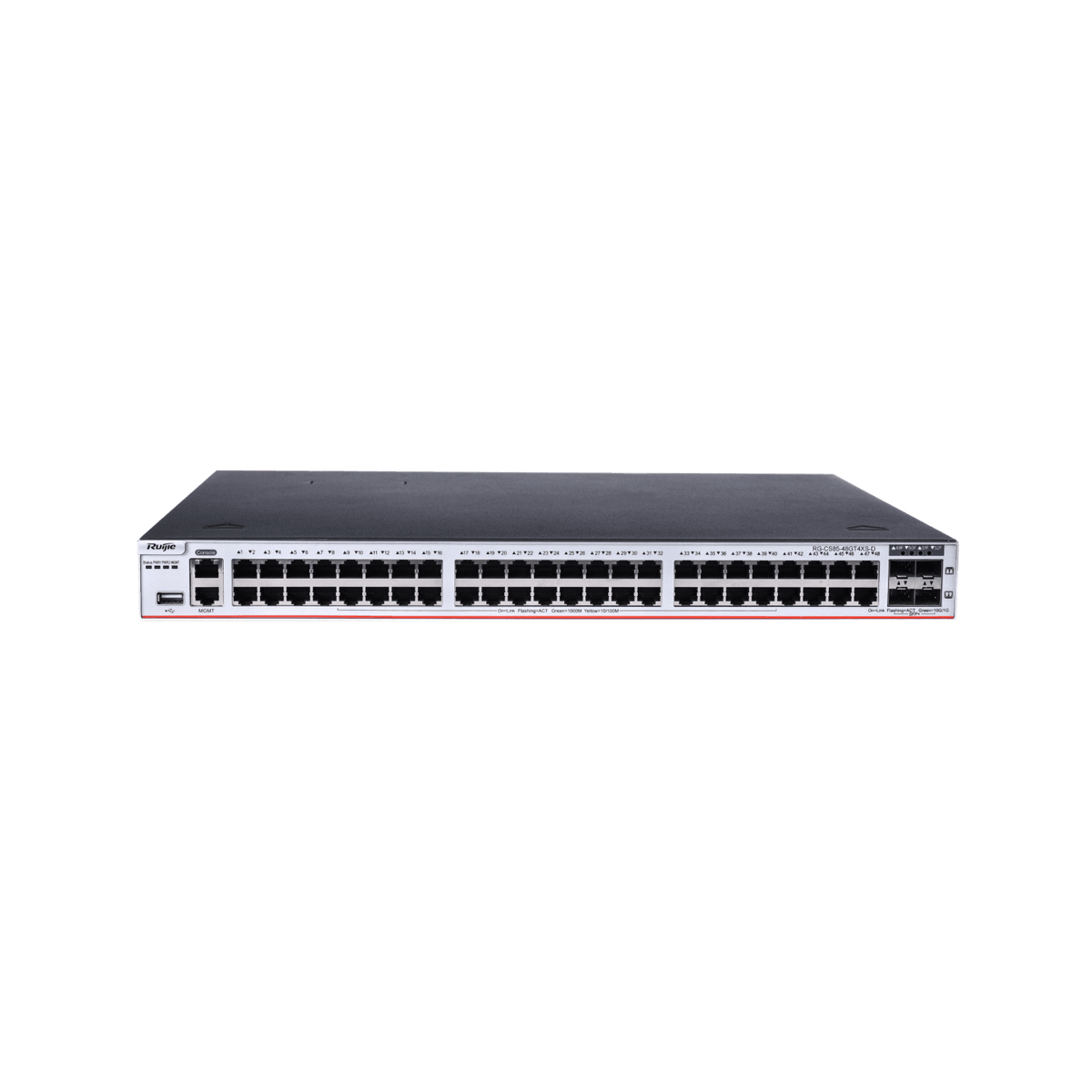

Ruijie RG-CS85-48GT4XS-D Enterprise-Class Core or Aggregation Switch, 48-Port 1GE RJ45, 4-Port 10GE Uplink

What it does

The RG-CS85-48GT4XS-D gives 48 x 10/100/1000BASE-T ports and 4 x 1GE/10GE SFP+ ports for uplink, with Layer 3 routing control adaptive to multiple services. It works as an aggregation switch for large-sized networks, or core switch for small and medium-sized networks.

The 4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers. VSU virtualization is supported, with 4 VSU members, and the switching capacity is 656 Gbps with a packet forwarding rate of 488 Mpps.

Management modes include SNMP, RMON, Syslog, USB log backup features, CLI, Eweb and telnet, and the switch carries network security policies, real-time monitoring, CPP and NFPP.

Installation notes

The power supply is not included and must be purchased separately. The switch has 2 x power module slots for 2 x pluggable power modules; purchase at least one RG-PA150IB-F module, a 150 W AC power module. The slots give 1+1 power redundancy, and power module hot swapping is supported.

The RG-PA150IB-F has a rated input voltage of 100 V AC to 240 V AC, 50 Hz to 60 Hz, and a maximum output power of 150 W. Maximum power consumption of the switch is 70 W (excluding expansion modules) or 95 W (including expansion modules).

The switch is 1 RU high and its unit weight is 4.5 kg (9.92 lbs). Fixed management ports are 1 x RJ45 console port and 1 x RJ45 MGMT port, plus 1 x USB 3.0 port.

The 1 x expansion slot takes the CM85-4XS2CQ expansion module, with 4 x 1GE/10GE SFP+ ports and 2 x 40GE/100GE QSFP28 ports. Expansion modules and power supply modules are ordered as needed.

Where it is used

It is made for aggregation in large-sized networks, or as the core switch for small and medium-sized networks, with an operating temperature of 0°C to 45°C (32°F to 113°F).
