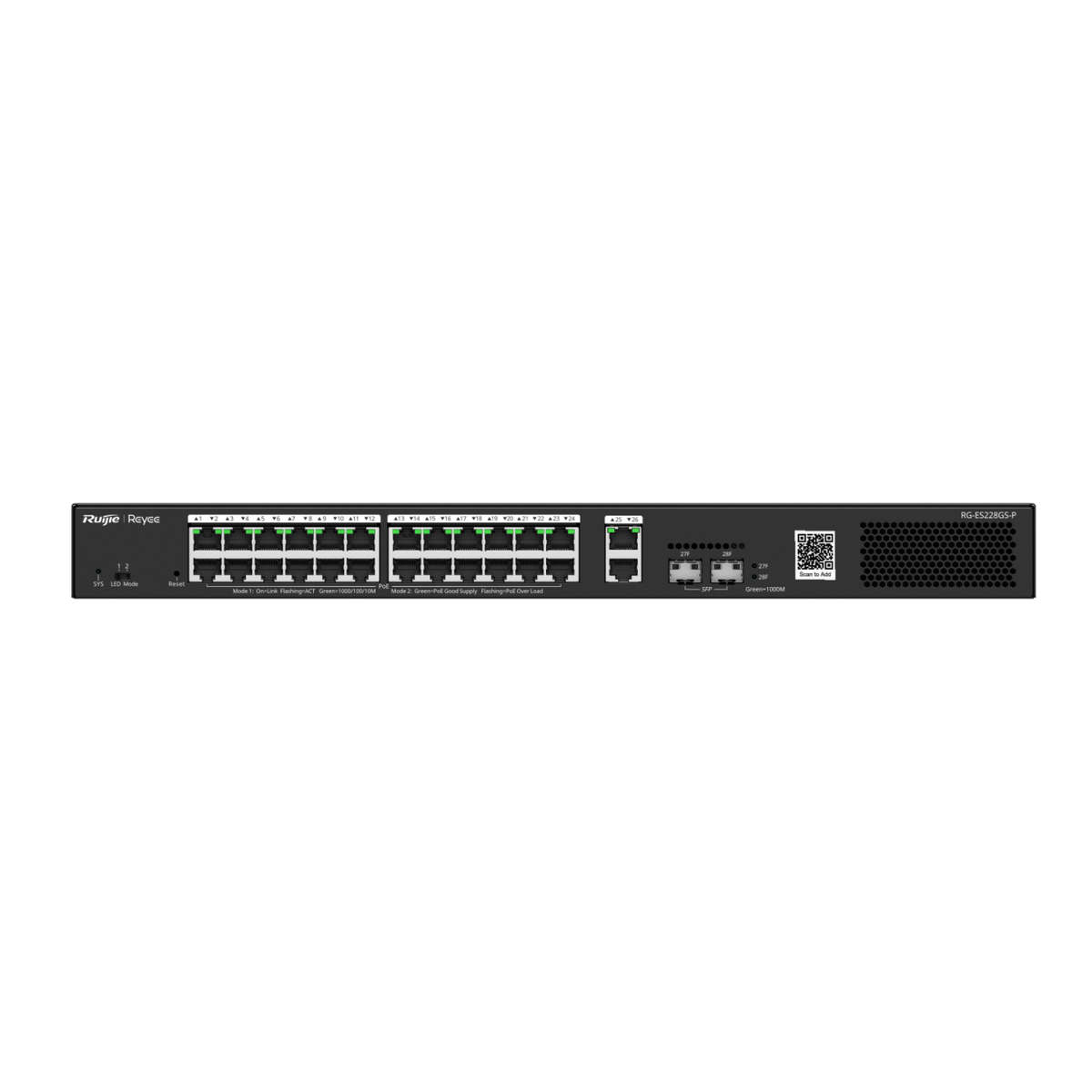

Ruijie RG-ES228GS-P Gigabit Smart Cloud Managed PoE Switch, 24 PoE+ Ports, 370W PoE Budget
About this product
The Ruijie RG-ES228GS-P is a 28-port Gigabit smart cloud managed PoE switch for enterprise, hospitality, factory, education, retail and surveillance networks. It has 24 PoE+ ports sharing a 370 W PoE budget, plus 2 RJ45 ports and 2 SFP ports, and is managed on Ruijie Cloud.
Key features
- 24 PoE/PoE+ out ports (IEEE 802.3af/at)
- 370 W PoE budget
- 2 RJ45 ports and 2 x 1GE SFP ports alongside the PoE+ ports
- Layer 2 switching with 56 Gbps(bit/s) switching capacity and a 41.6 Mpps forwarding rate
- IP camera recognition for CCTV networks
- Automatic loop prevention for service continuity
- PoE watchdog and port isolation
- Management on Ruijie Cloud, the Ruijie Reyee App or eWeb
Frequently asked questions
How many PoE ports does the RG-ES228GS-P have, and what is the PoE budget?
It has 24 PoE/PoE+ out ports (IEEE 802.3af/at) sharing a PoE budget of 370 W.
What other ports does it have?
Alongside the 24 PoE+ ports there are 2 RJ45 ports and 2 SFP ports. The SFP ports are 1GE.
How is the switch managed?
It is a smart cloud managed switch that can be managed on Ruijie Cloud, in the Ruijie Reyee App or through eWeb management.
Can it be rack mounted?
Yes. The mounting option is rack, and 2 rack-mount brackets are in the package.
How much power does it draw?
Maximum power consumption is 25 W with no PoE load and 400 W with PoE full load, from a rated input voltage of 100 V AC to 240 V AC, 50 Hz to 60 Hz.
Which features does it have for CCTV networks?
It has IP camera recognition and camera detection, automatic loop prevention for service continuity, and a PoE watchdog.
-
Download
- RG-ES228GS-P Tech Sheet
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES228GS-P |
| Manufacturer Part Number (MPN) | RG-ES228GS-P |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 26 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 26 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 41.6 Mpps |
| Switching capacity | 56 Gbps(bit/s) |
| Rated input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum power consumption | 25 W (with no PoE load), 400 W (with PoE full load) |
| Power supply | Fixed power supply |
| Mounting options | Rack |
| Product dimensions (W x D x H) | 440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.) |
| Weight | 2.84 kg (6.26 lbs) (without packaging materials) |
| Casing | Metal |
| Fan | 1 x fixed fan |
| Cooling | Air cooling, front-to-rear airflow |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| MTBF | 200,000 hours |
| Maximum number of VLANs | 16 |
| Jumbo frame length (MTU) | 10000 bytes |
| PoE watchdog | Yes |
| Port isolation | Yes |
| Camera detection | Yes |
| Certification | CE, FCC |
