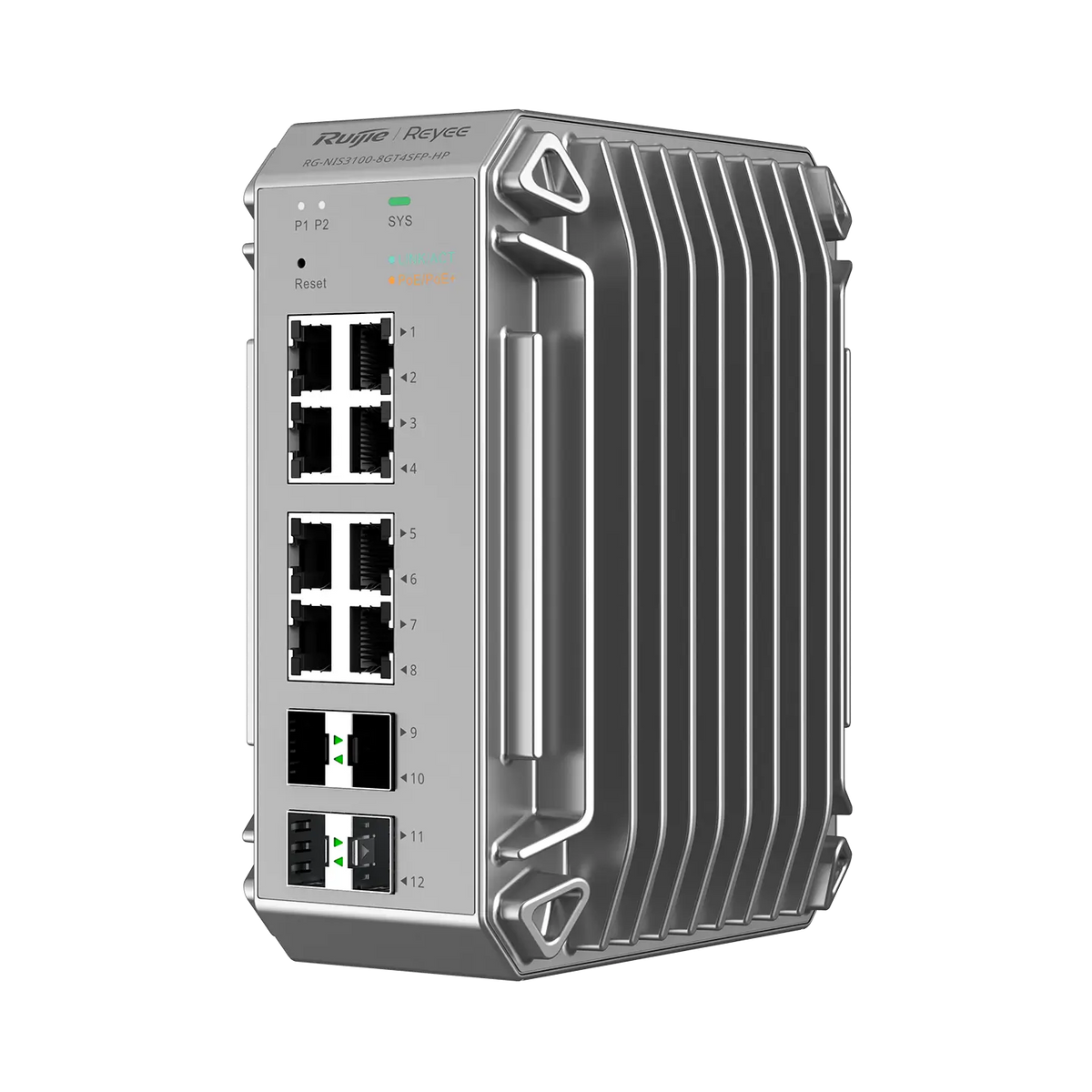

Ruijie RG-NIS3100-8GT4SFP-HP Industrial Gigabit Managed PoE+ Switch, 8 PoE+ Ports, 240W PoE Budget
Free Delivery
£
382
26
(Incl. VAT)
RRP: £458.71
About this product
The Ruijie RG-NIS3100-8GT4SFP-HP is a 12-port Gigabit managed industrial-grade switch with 8 PoE+ ports and 4 SFP ports, designed for harsh environments such as CCTV, factory, coastal and dusty sites. It powers PoE/PoE+ (IEEE 802.3af/at) devices from a 240 W PoE budget and is rated IP40 against 1mm intruders in dusty conditions.
Key features
- 8 x 10/100/1000BASE-T RJ45 ports, all 8 with PoE/PoE+ out
- 4 x 1GE SFP ports
- 240 W PoE budget, PoE/PoE+ (IEEE 802.3af/at)
- Switching capacity 24 Gbps(bit/s) and forwarding rate 17.86 Mpps
- Operating temperature -40ºC to +65ºC installed in a sealed cabinet, or -40ºC to +80ºC in a fume hood with a ventilation speed of at least 400LFM
- IP40 against 1mm intruders in dusty conditions
- Fanless design with natural cooling
- DIN rail or wall mounting
Frequently asked questions
How many PoE ports does the RG-NIS3100-8GT4SFP-HP have?
8 PoE/PoE+ out ports on its 8 x 10/100/1000BASE-T RJ45 ports, sharing a 240 W PoE budget.
Which PoE standards does it support?
PoE out is PoE/PoE+ (IEEE 802.3af/at).
Is a power adapter included?
No. A power adapter is not included and needs to be bought separately. The DC power input has a rated input voltage of 12 V DC to 56 V DC.
What temperatures can it work in?
-40ºC to +65ºC installed in a sealed cabinet, and up to -40ºC to +80ºC installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute).
How is it mounted?
On DIN rail or a wall. 2 mounting brackets for wall mounting are included.
Does it have fibre uplinks?
Yes, 4 x 1GE SFP ports.
£
382
26
RRP: £458.71
Save £76.45
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-NIS3100-8GT4SFP-HP
Manufacturer Part Number (MPN)
RG-NIS3100-8GT4SFP-HP
Product Category
Layer 2
Total number of RJ45 ports
8
Number of 10/100/1000BASE-T ports
8
Number of 1GE SFP ports
4
PoE Out standard
PoE/PoE+ (IEEE 802.3af/at)
Number of PoE/PoE+ Out ports
8
PoE budget
240 W
PoE power pins
1–2 (+), 3–6 (-)
Forwarding rate
17.86 Mpps
Switching capacity
24 Gbps(bit/s)
RAM
256 MB
Flash memory
16 MB
Maximum number of VLANs
4094
Maximum number of MAC address entries
8000
Jumbo frame length (MTU)
9216 bytes (global configuration mode)
Power supply
DC power input; Power module
DC power input
Rated input voltage: 12 V DC to 56 V DC; Maximum input current: 7 A
Maximum power consumption
20 W (with no PoE load); 80 W (full-load power when the input power is 12 V to 20 V); 140 W (full-load power when the input power is 21 V to 45 V); 260 W (full-load power when the input power is 46 V to 56 V)
Product dimensions (W x D x H)
85 mm x 132 mm x 165 mm
Weight
1.47 kg (3.24 lbs) (without packaging materials)
Casing
Metal
Fan
Fanless design
Mounting options
DIN rail/Wall
MTBF
400,000 hours
Operating temperature (installed in a sealed cabinet)
-40ºC to +65ºC (-40°F to 149°F)
Operating temperature (fume hood, at least 80LFM)
-40ºC to +70ºC (-40°F to 158°F)
Operating temperature (fume hood, at least 200LFM)
-40ºC to +75ºC (-40°F to 167°F)
Operating temperature (fume hood, at least 400LFM)
-40ºC to +80ºC (-40°F to 176°F)
Storage temperature
–40° C to +75° C (–40° F to +167° F)
Operating humidity
5% RH to 95% RH (non-condensing)
Surge protection
Service port: ±6 kV for common mode; Power connector: ±4 kV for common mode and ±2 kV for differential mode
ESD protection
Contact discharge: 6 kV; Air discharge: 8 kV
Certification
CE, FCC
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NIS3100-8GT4SFP-HP |
| Manufacturer Part Number (MPN) | RG-NIS3100-8GT4SFP-HP |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 8 |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 1GE SFP ports | 4 |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 240 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 17.86 Mpps |
| Switching capacity | 24 Gbps(bit/s) |
| RAM | 256 MB |
| Flash memory | 16 MB |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 8000 |
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| Power supply | DC power input; Power module |
| DC power input | Rated input voltage: 12 V DC to 56 V DC; Maximum input current: 7 A |
| Maximum power consumption | 20 W (with no PoE load); 80 W (full-load power when the input power is 12 V to 20 V); 140 W (full-load power when the input power is 21 V to 45 V); 260 W (full-load power when the input power is 46 V to 56 V) |
| Product dimensions (W x D x H) | 85 mm x 132 mm x 165 mm |
| Weight | 1.47 kg (3.24 lbs) (without packaging materials) |
| Casing | Metal |
| Fan | Fanless design |
| Mounting options | DIN rail/Wall |
| MTBF | 400,000 hours |
| Operating temperature (installed in a sealed cabinet) | -40ºC to +65ºC (-40°F to 149°F) |
| Operating temperature (fume hood, at least 80LFM) | -40ºC to +70ºC (-40°F to 158°F) |
| Operating temperature (fume hood, at least 200LFM) | -40ºC to +75ºC (-40°F to 167°F) |
| Operating temperature (fume hood, at least 400LFM) | -40ºC to +80ºC (-40°F to 176°F) |
| Storage temperature | –40° C to +75° C (–40° F to +167° F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±4 kV for common mode and ±2 kV for differential mode |
| ESD protection | Contact discharge: 6 kV; Air discharge: 8 kV |
| Certification | CE, FCC |
