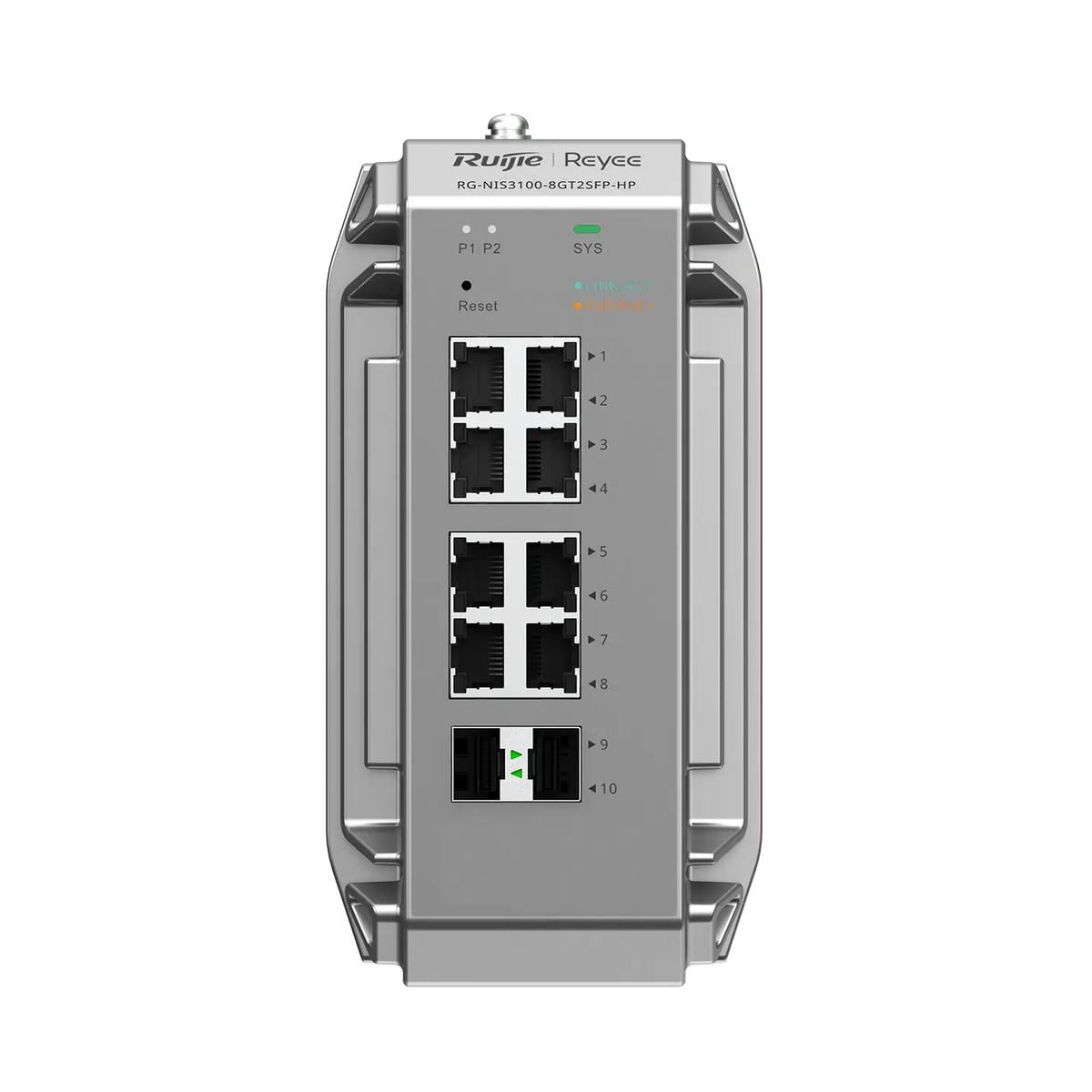

Ruijie RG-NIS3100-8GT2SFP-HP Industrial-Grade Managed PoE+ Switch, 8 PoE+ Ports, 2 SFP Uplinks
About this product
The Ruijie RG-NIS3100-8GT2SFP-HP is a 10-port Gigabit managed switch with 8 PoE+ ports and 2 SFP uplink ports, built as a true industrial-grade switch specially designed for harsh environments. It is aimed at applications such as CCTV, factories, coastal areas and dusty environments, with a 240 W PoE budget and DIN rail or wall mounting.
Key features
- 8 × 10/100/1000BASE-T RJ45 ports and 8 PoE/PoE+ out ports (IEEE 802.3af/at)
- 2 × 1GE SFP uplink ports
- 240 W PoE budget
- Operating temperature -40ºC to +65ºC installed in a sealed cabinet, extending to +80ºC in a fume hood with at least 400LFM ventilation
- IP40 against 1mm intruders in dusty conditions
- Surge protection of ±6 kV (common mode) on service ports
- ERPS service failover within 50ms
- Fanless design with natural cooling and a metal casing
Frequently asked questions
What is the PoE budget of the RG-NIS3100-8GT2SFP-HP?
The PoE budget is 240 W across 8 PoE/PoE+ out ports (IEEE 802.3af/at).
Does it come with a power supply?
No. A power adapter is not included with this product and needs to be purchased separately. The DC power input has a rated input voltage of 12 V DC to 56 V DC.
What temperatures can it work in?
Operating temperature is -40ºC to +65ºC when installed in a sealed cabinet, and -40ºC to +80ºC when installed in a fume hood with a ventilation speed of at least 400LFM.
How is it mounted?
Mounting options are DIN rail or wall. Two wall-mounting brackets and four M3 x 8 mm screws come in the box.
Can it be managed from the cloud?
Yes, through Ruijie Cloud. Local network SON also allows configuration even without the cloud.
Does it have a fan?
No. It has a fanless design with natural cooling.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NIS3100-8GT2SFP-HP |
| Manufacturer Part Number (MPN) | RG-NIS3100-8GT2SFP-HP |
| Product Category | Layer 2 |
| Number of 10/100/1000BASE-T ports | 8 |
| Number of 1GE SFP ports | 2 |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 240 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| DC power input | Rated input voltage: 12 V DC to 56 V DC; Maximum input current: 7 A |
| Maximum power consumption | 20 W (with no PoE load); 80 W (full-load power when the input power is 12 V to 20 V); 140 W (full-load power when the input power is 21 V to 45 V); 260 W (full-load power when the input power is 46 V to 56 V) |
| Power adapter | Not included (needs to be purchased separately) |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 20 Gbps(bit/s) |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 8000 |
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| Operating temperature | -40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet); -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute)) |
| Storage temperature | –40° C to +75° C (–40° F to +167° F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Protection | IP40 |
| Corrosion class | Salt tolerance |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±4 kV for common mode and ±2 kV for differential mode |
| ESD protection | Contact discharge: 6 kV; Air discharge: 8 kV |
| Cooling | Fanless design, natural cooling |
| Acoustic noise | 25° C (77° F): 30 dB |
| MTBF | 400,000 hours |
| Mounting options | DIN rail/Wall |
| Casing | Metal |
| Product dimensions (W x D x H) | 85 mm x 132 mm x 165 mm (3.35 in. x 5.2 in. x 6.5 in.) |
| Weight | 1.42 kg (3.13 lbs) (without packaging materials) |
| Certification | CE, FCC |
