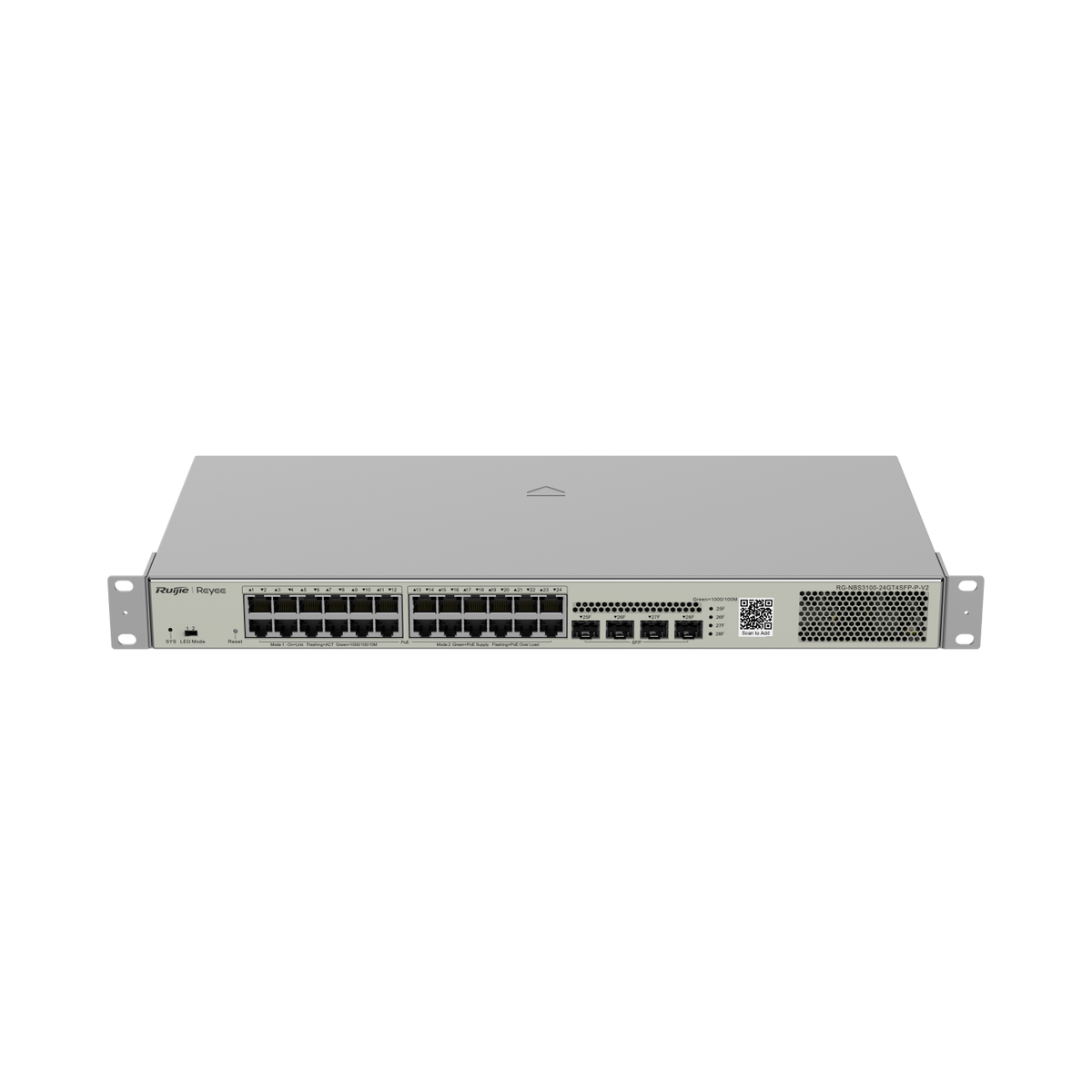

Ruijie RG-NBS3100-24GT4SFP-P-V2 Layer 2 Cloud Managed PoE Switch, 24 Gigabit PoE+ Ports + 4 SFP, 370W PoE Budget
About this product
The Ruijie RG-NBS3100-24GT4SFP-P-V2 is a 28-port Gigabit Layer 2 cloud managed PoE switch with 24 Gigabit PoE+ ports, 4 SFP uplinks and a 370 W PoE budget. It is built for CCTV networks with IP camera recognition, and can be managed for life on Ruijie Cloud as well as through the Ruijie Reyee App.
Key features
- 24 x 10/100/1000BASE-T ports, all PoE/PoE+ out (IEEE 802.3af/at)
- 4 x 1GE SFP uplink ports
- 370 W PoE budget
- 56 Gbps switching capacity and 41.66 Mpps forwarding rate
- Camera detection and PoE watchdog for CCTV networks
- Managed through Ruijie Cloud, the Ruijie Reyee App or eWeb, with SNMPv1, v2c and v3 support
- Metal casing for rack mounting, 440 mm x 215 mm x 44 mm
Frequently asked questions
What is the PoE budget of the RG-NBS3100-24GT4SFP-P-V2?
The PoE budget is 370 W. All 24 RJ45 ports are PoE/PoE+ out ports to IEEE 802.3af/at.
What uplink ports does it have?
It has 4 x 1GE SFP ports for uplinks. There are no 1GE combo ports.
How is the switch managed?
It supports Ruijie Cloud management, Ruijie Reyee App management and eWeb management, plus SNMPv1, v2c and v3.
Does it have features for CCTV networks?
Yes. It offers IP camera recognition with camera detection, and a PoE watchdog.
How much power does it draw?
Maximum power consumption is 21 W with no PoE load and 443 W with full PoE load, from a rated input of 100 V AC to 240 V AC, 50/60 Hz.
Can it be mounted in a rack?
Yes. The mounting option is rack, and 2 mounting brackets and 6 screws come in the box. The switch measures 440 mm x 215 mm x 44 mm.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS3100-24GT4SFP-P-V2 |
| Manufacturer Part Number (MPN) | RG-NBS3100-24GT4SFP-P-V2 |
| Product Category | Layer 2 |
| Number of 10/100/1000BASE-T ports | 24 |
| Number of 1GE SFP ports | 4 |
| Number of 1GE combo ports | No |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Rated input voltage | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum power consumption | 21 W (with no PoE load), 443 W (with full PoE load) |
| Switching capacity | 56 Gbps(bit/s) |
| Forwarding rate | 41.66 Mpps |
| RAM | 256 MB |
| Flash memory | 16 MB |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 8000 |
| Jumbo frame length (MTU) | 9216 bytes (global configuration mode) |
| Casing | Metal |
| Mounting options | Rack |
| Product dimensions (W x D x H) | 440 mm x 215 mm x 44 mm |
| Weight | 3 kg (without packaging materials) |
| Fan | 1 x fixed fan |
| Acoustic noise | 25° C: 45 dB |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | –40° C to +70° C |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±6 kV for both common mode and differential mode |
| Safety compliance | IEC 62368-1 |
| Certification | CE, FCC |
