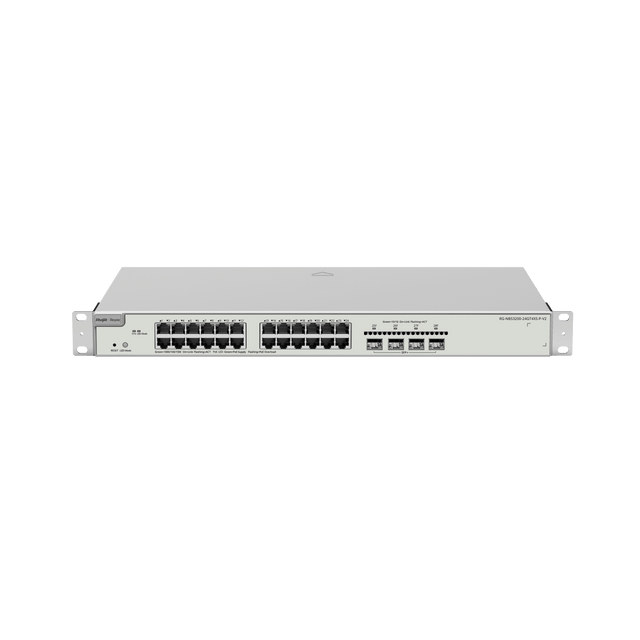

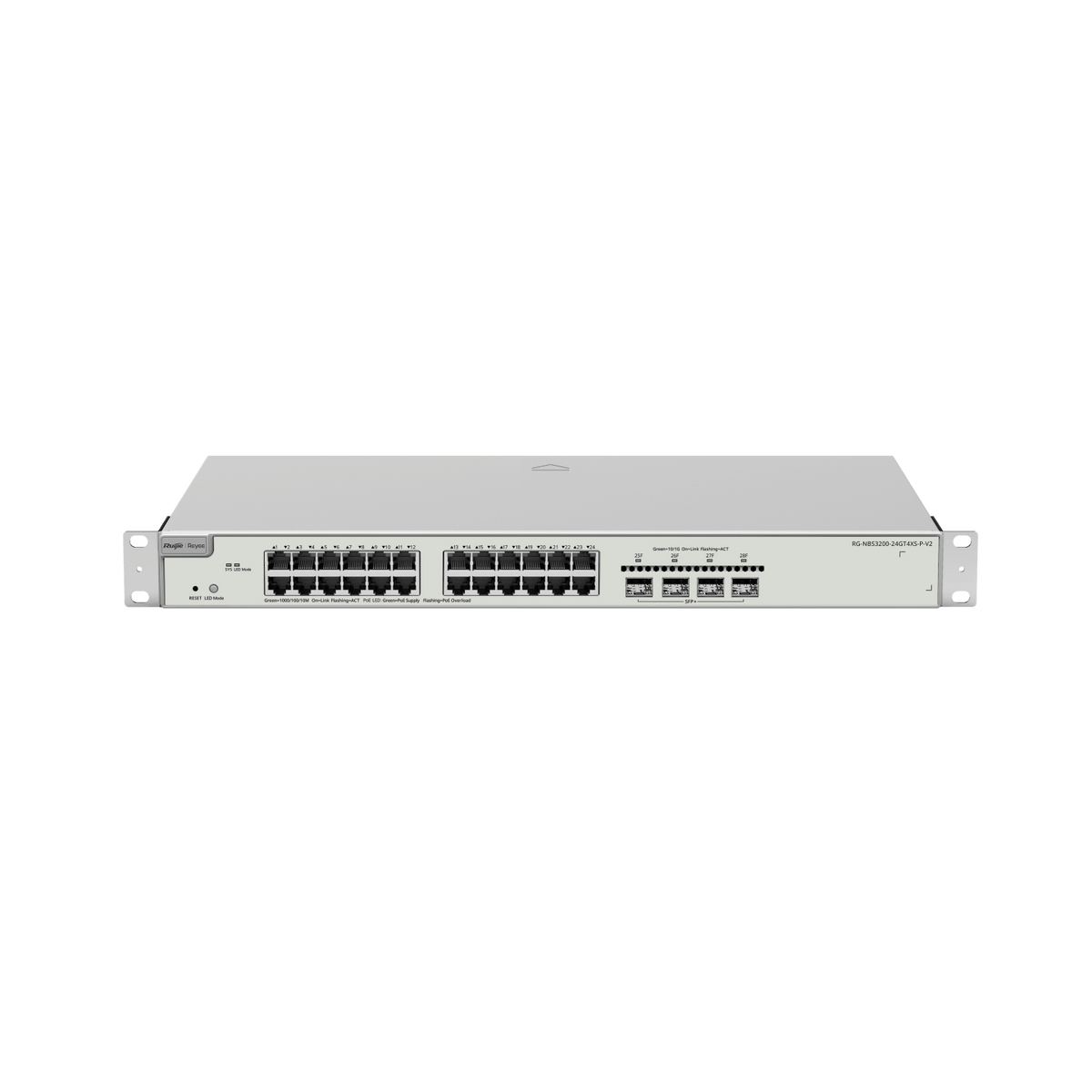

Ruijie RG-NBS3200-24GT4XS-P-V2 Layer 2+ Cloud Managed PoE Switch, 24 PoE+ Ports, 4 x 10G SFP+ Uplinks
About this product
The Ruijie RG-NBS3200-24GT4XS-P-V2 is a 24-port Gigabit Layer 2+ cloud managed PoE switch with 4 x 10G uplinks, for hotel, apartment, campus, retail and CCTV networks. It has 24 x 10/100/1000BASE-T PoE+ ports sharing a 370 W PoE budget and 4 x 10GE SFP+ ports, with cloud management on Ruijie Cloud.
Key features
- 24 x 10/100/1000BASE-T PoE+ ports
- 370 W PoE budget
- 4 x 10GE SFP+ uplink ports
- Layer 2+ switching with static routing and Layer 3 interface types including SVI
- 128 Gbps(bit/s) switching capacity and a 96 Mpps forwarding rate
- IP camera recognition for CCTV networks
- PoE watchdog, port isolation and broadcast storm control
- Cloud management on Ruijie Cloud
Frequently asked questions
How many PoE ports does the RG-NBS3200-24GT4XS-P-V2 have?
It has 24 PoE/PoE+ out ports, sharing a PoE budget of 370 W.
What uplink ports does it have?
It has 4 x 10GE SFP+ ports for uplinks.
Is it a Layer 2 or Layer 3 switch?
It is a Layer 2+ switch. It supports static routing and multiple Layer 3 interface types, including SVI, but cannot function as a DHCP server.
How is the switch managed?
It is a cloud managed switch, with cloud management on Ruijie Cloud.
What operating temperature is it rated for?
Operating temperature is 0°C to +50°C (32°F to 122°F).
Is the fan noisy?
The switch has a PWM fan for quieter performance.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS3200-24GT4XS-P-V2 |
| Manufacturer Part Number (MPN) | RG-NBS3200-24GT4XS-P-V2 |
| Product Category | Layer 2+ |
| Total number of RJ45 ports | 24 |
| Total number of optical ports | 4 |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100/1000BASE-T ports | 24 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 96 Mpps |
| Switching capacity | 128 Gbps(bit/s) |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Operating altitude | 0 m to +5,000 m (0 ft. to +16,404.20 ft.) |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±6 kV for both common mode and differential mode |
| PoE watchdog | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| Port isolation | Yes |
| Broadcast storm control | Yes |
