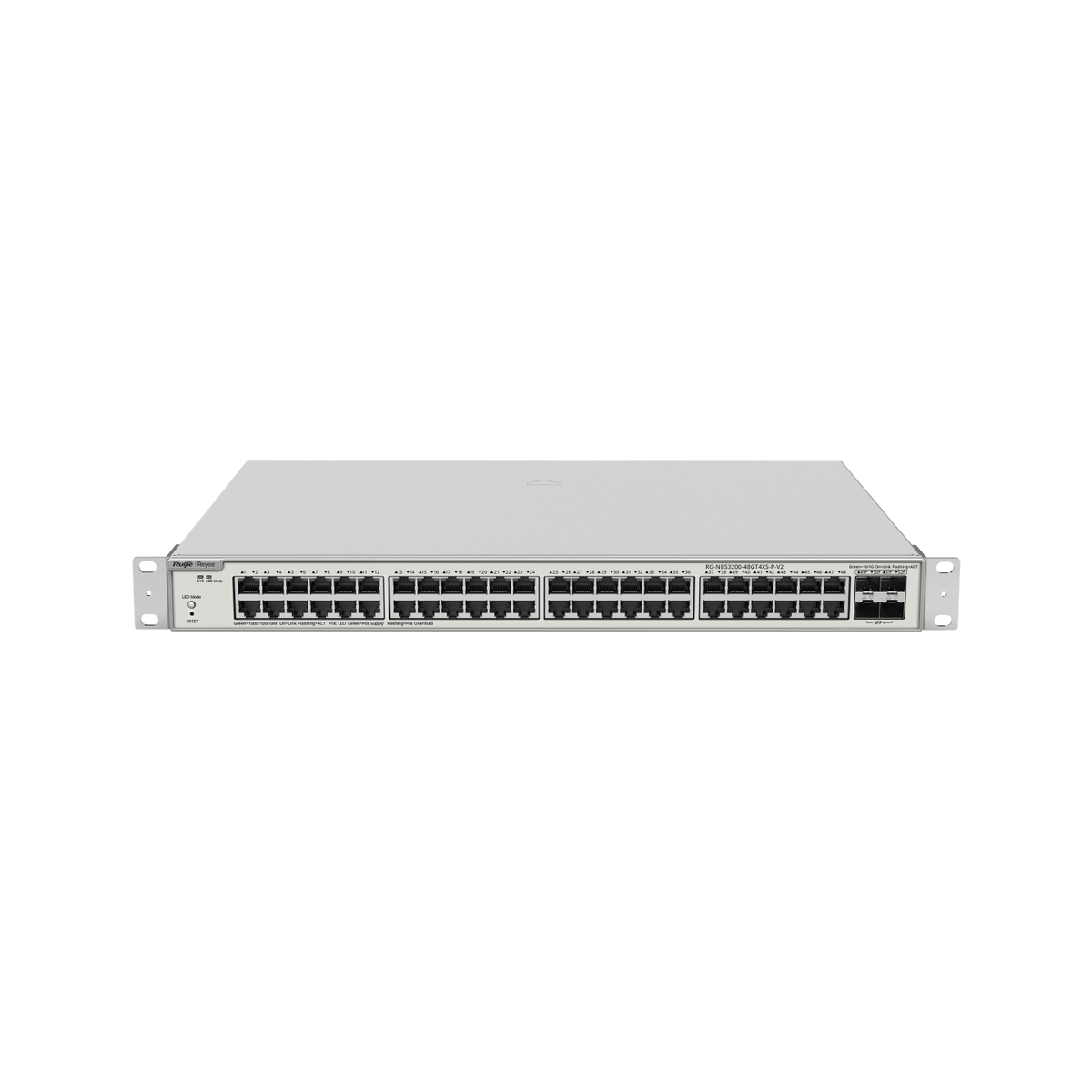

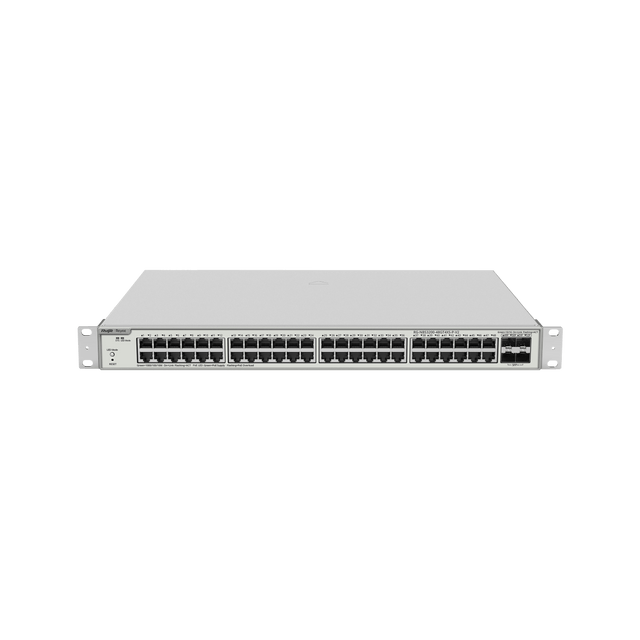

Ruijie RG-NBS3200-48GT4XS-P-V2 Layer 2+ Cloud Managed PoE Switch, 48 PoE+ Ports, 4 x 10G Uplinks
Free Delivery
£
704
71
(Incl. VAT)
About this product
The Ruijie RG-NBS3200-48GT4XS-P-V2 is a 48-port Gigabit Layer 2+ cloud managed PoE switch with 4 x 10G uplinks, for star hotel, apartment, campus, retail and CCTV networks. It has 48 PoE+ ports sharing a 370 W PoE budget and 4 x 10GE SFP+ ports, with cloud management on Ruijie Cloud.
Key features
- 48 x 10/100/1000BASE-T PoE+ ports
- 4 x 10GE SFP+ uplink ports
- 370 W PoE budget
- Layer 2+ switching with 176 Gbps(bit/s) switching capacity and a 132 Mpps forwarding rate
- IP camera recognition for CCTV networks
- PoE watchdog, port isolation and broadcast storm control
- Lifetime free cloud management on Ruijie Cloud
- MTBF of 400,000 hours
Frequently asked questions
How many PoE ports does the RG-NBS3200-48GT4XS-P-V2 have, and what is the PoE budget?
It has 48 PoE/PoE+ out ports sharing a PoE budget of 370 W.
What uplink ports does it have?
It has 4 x 10GE SFP+ ports for uplinks.
Is it a Layer 2 or Layer 3 switch?
The product category is Layer 2+.
How is the switch managed?
It is a cloud managed switch with lifetime free cloud management on Ruijie Cloud.
Which features does it have for CCTV networks?
It has IP camera recognition for CCTV networks and a PoE watchdog.
What operating temperature does it support?
Operating temperature is 0°C to +50°C (32°F to 122°F).
£
704
71
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-NBS3200-48GT4XS-P-V2
Manufacturer Part Number (MPN)
RG-NBS3200-48GT4XS-P-V2
Product Category
Layer 2+
Total number of RJ45 ports
48
Total number of optical ports
4
Number of 10GE SFP+ ports
4
Number of 10/100/1000BASE-T ports
48
Number of PoE/PoE+ Out ports
48
PoE budget
370 W
PoE power pins
1–2 (+), 3–6 (-)
Forwarding rate
132 Mpps
Switching capacity
176 Gbps(bit/s)
MTBF
400,000 hours
Operating temperature
0°C to +50°C (32°F to 122°F)
Operating altitude
0 m to +5,000 m (0 ft. to +16,404.20 ft.)
Surge protection (service port)
±6 kV for common mode
Surge protection (power connector)
±6 kV for both common mode and differential mode
PoE watchdog
Yes
Jumbo frame length (MTU)
9216 bytes (interface configuration mode)
Port isolation
Yes
Broadcast storm control
Yes
Mounting
Rack
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS3200-48GT4XS-P-V2 |
| Manufacturer Part Number (MPN) | RG-NBS3200-48GT4XS-P-V2 |
| Product Category | Layer 2+ |
| Total number of RJ45 ports | 48 |
| Total number of optical ports | 4 |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100/1000BASE-T ports | 48 |
| Number of PoE/PoE+ Out ports | 48 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 132 Mpps |
| Switching capacity | 176 Gbps(bit/s) |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Operating altitude | 0 m to +5,000 m (0 ft. to +16,404.20 ft.) |
| Surge protection (service port) | ±6 kV for common mode |
| Surge protection (power connector) | ±6 kV for both common mode and differential mode |
| PoE watchdog | Yes |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Mounting | Rack |
