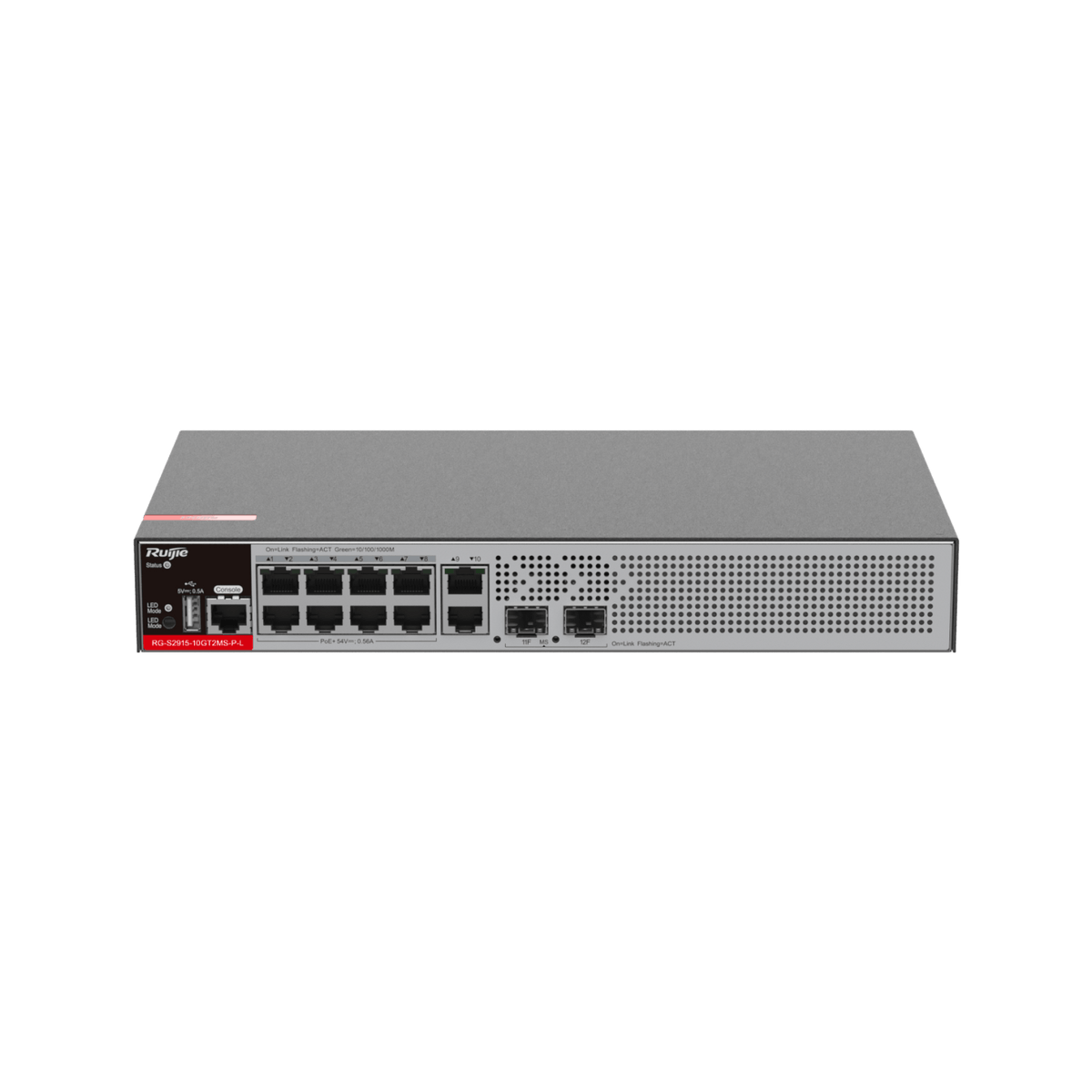

Ruijie RG-S2915-10GT2MS-P-L Layer 2+ Managed PoE+ Switch, 8 PoE+ Ports, 125W PoE
About this product
The Ruijie RG-S2915-10GT2MS-P-L is a 10-port 1GE RJ45 Layer 2+ managed PoE+ switch with 2 x 1GE/2.5GE SFP uplink ports, from the RG-S2915-L series, for use as an access switch on medium- and small-sized networks. Ports 1 to 8 support PoE/PoE+, each PoE port provides up to 30 W of power, and the maximum PoE power is 125 W.
Key features
- 10 x 10/100/1000BASE-T RJ45 ports, with ports 1 to 8 supporting PoE/PoE+
- 2 x 1GE/2.5GE SFP uplink ports
- Up to 30 W per PoE port, 125 W maximum PoE power
- IEEE 802.3af and 802.3at PoE
- Switching capacity 30 Gbps, packet forwarding rate 22.5 Mpps
- 10 kV surge protection on telecom ports
- Management and remote O&M through Ruijie Cloud
- 1 RU, 297 mm x 170 mm x 44.5 mm
Frequently asked questions
How much PoE power does the RG-S2915-10GT2MS-P-L provide?
Each PoE port provides up to 30 W of power, and the maximum PoE power is 125 W. Ports 1-8 support PoE/PoE+ (IEEE802.3af/at).
What uplink ports does it have?
It has 2 x 1GE/2.5GE SFP ports for uplinks, alongside 10 x 10/100/1000BASE-T ports.
Can the RG-S2915-10GT2MS-P-L be managed from the cloud?
Yes. Ruijie Cloud provides management and remote O&M, and the switch can also be managed and configured in Web mode.
Does it fit in a rack?
It has a rack height of 1 RU, and 2 mounting brackets come in the box.
How much power does the switch draw?
Maximum power consumption is 16 W (non-PoE) and 141 W (full PoE load), from a rated input of 100 V AC to 240 V AC, 50 Hz to 60 Hz.
Is the RG-S2915-10GT2MS-P-L fan-cooled?
Yes. It uses 1 x fixed fan module, with acoustic noise of ≤ 37 dB.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-S2915-10GT2MS-P-L |
| Manufacturer Part Number (MPN) | RG-S2915-10GT2MS-P-L |
| Fixed Service Ports | 10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+, 2 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB port |
| PoE port | Ports 1-8 support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE output power | Each PoE port provides up to 30 W of power. The maximum power is 125 W |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
| PoE | IEEE 802.3af and 802.3at |
| Packet forwarding rate | 22.5 Mpps |
| Switching capacity | 30 Gbps |
| CPU | Built-in single-core CPU, with the clock speed of 1.2 GHz |
| Flash memory | 64 MB |
| Memory | 512 MB DDR4 |
| Switch buffer | 512 KB |
| Maximum number of MAC address entries | 16,000 |
| VLANs | IEEE 802.1Q (4,094 VLANs) |
| Jumbo frame | maximum length: 9216 bytes |
| Unit dimensions (W x D x H) | 297 mm x 170 mm x 44.5 mm (11.69 in. x 6.69 in. x 1.75 in.) |
| Rack height | 1 RU |
| Unit weight | 2.5 kg (5.51 lbs) |
| Power supply | 1 x fixed power supply |
| Rated input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum input current | 3 A |
| Maximum power consumption | 16 W (non-PoE), 141 W (full PoE load) |
| Energy saving | Energy Efficient Ethernet (EEE) |
| Fan | 1 x fixed fan module |
| Acoustic noise | ≤ 37 dB |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Surge protection | Power port: 6 kV/2 kV; Telecom port: 10 kV |
| ESD | Air discharge: 8 kV/15 kV; Contact discharge: 6 kV/8 kV |
