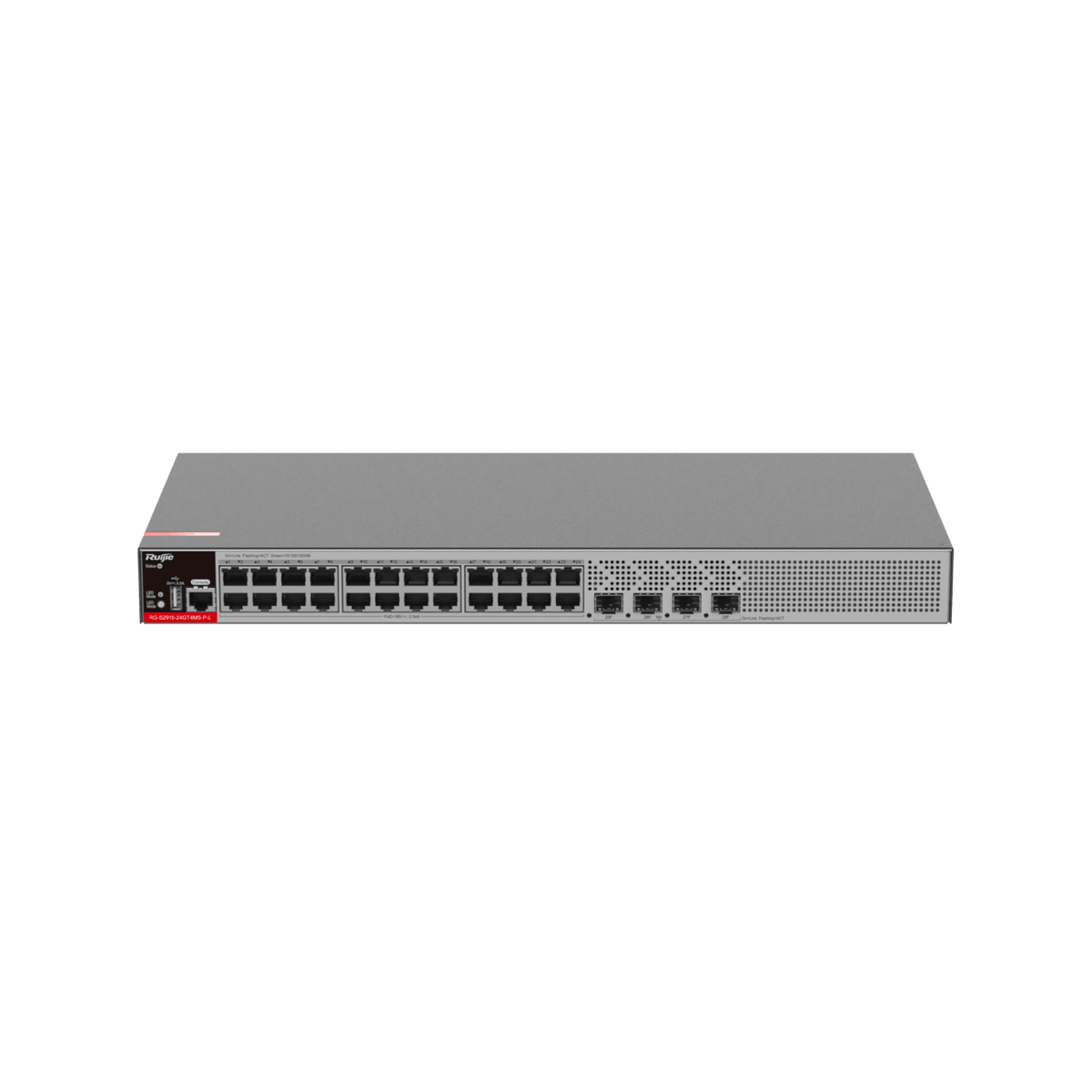

Ruijie RG-S2915-24GT4MS-P-L Layer 2+ Managed PoE+ Switch, 24-Port PoE+ (370 W), 4-Port 2.5GE Uplink
Free Delivery
£
639
49
(Incl. VAT)
RRP: £767.39
About this product
The Ruijie RG-S2915-24GT4MS-P-L is a 24-port 1GE RJ45 Layer 2+ managed PoE+ switch with 4 x 2.5GE SFP uplink ports and a 370 W PoE power supply, for offices, hotels, retail stores, factories and schools. All RJ45 ports support PoE/PoE+ (IEEE802.3af/at), each providing up to 30 W of power, and the switch is managed through Ruijie Cloud or in Web mode.
Key features
- 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
- 4 x 1GE/2.5GE SFP ports for 2.5GE uplinks
- Each PoE port provides up to 30 W of power; the maximum power is 370 W
- Switching capacity 68 Gbps; packet forwarding rate 51 Mpps
- 10 kV surge protection for ports
- STP, RSTP, MSTP, ERPS (G.8032) and RLDP for link reliability
- CPU protection policy for stability of the switch and nonstop services
- Management and remote O&M through Ruijie Cloud
Frequently asked questions
What is the PoE budget of the RG-S2915-24GT4MS-P-L?
Each PoE port provides up to 30 W of power and the maximum power is 370 W. How many powered devices it can run is determined by the power of the switch and the actual power consumption of each device.
Which ports support PoE?
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply, across 24 x 10/100/1000BASE-T ports.
What uplink ports does it have?
4 x 1GE/2.5GE SFP ports. The 2.5GE uplinks enable integration into 10GE networks.
Can it be rack mounted?
It is 1 RU high and the package contents include mounting bracket × 2.
How can it be managed?
Through Ruijie Cloud for management and remote O&M, in Web mode, or by SNMP v1/v2c/v3 and CLI (telnet/console).
How much power does it draw?
Maximum power consumption is 33 W (non-PoE) and 403 W (full PoE load), from AC input rated 100 V AC to 240 V AC, 50 Hz to 60 Hz.
£
639
49
RRP: £767.39
Save £127.90
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-S2915-24GT4MS-P-L
Manufacturer Part Number (MPN)
RG-S2915-24GT4MS-P-L
Fixed Service Ports
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/2.5GE SFP ports
Fixed management port
1 x RJ45 console port
USB
1 x USB port
Packet forwarding rate
51 Mpps
Switching capacity
68 Gbps
CPU
Built-in single-core CPU, with the clock speed of 1.2 GHz
Flash memory
64 MB
Memory
512 MB DDR4
Switch buffer
512 KB
MAC Table Capacity
16,000
Unit dimensions (W x D x H)
440 mm x 292 mm x 43.6 mm (17.32 in. x 11.50 in. x 1.72 in.)
Rack height
1 RU
Unit weight
2.8 kg (6.17 lbs)
Power supply
Fixed single AC power supply
Power input
AC input: rated input voltage 100 V AC to 240 V AC, 50 Hz to 60 Hz; maximum input voltage 90 V AC to 264 V AC, 47 Hz to 63 Hz; maximum input current 6 A
Maximum power consumption
33 W (non-PoE), 403 W (full PoE load)
PoE port
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs
Mode A (1-2, 3-6 pairs)
PoE output power
Each PoE port provides up to 30 W of power. The maximum power is 370 W
Energy saving
Energy Efficient Ethernet (EEE)
Temperature
Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity
Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Altitude
0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)
200,000 hours (about 22 years)
Fan
2 x fixed fan modules
Acoustic noise
≤ 39 dB
Surge protection
Power port: 6 kV/2 kV; Telecom port: 10 kV
Safety regulation
IEC 62368-1
VLAN
IEEE 802.1Q (4,094 VLANs)
Spanning tree
STP (IEEE 802.1.d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Ring protection
ERPS (G.8032)
Link aggregation
LACP (IEEE 802.3ad)
Management
SNMP v1/v2c/v3; CLI (telnet/console), syslog/debug, Web, MACC public cloud
Package contents
Chassis × 1, power cord × 1, grounding wire × 1, nylon buckle × 1, mounting bracket × 2, rubber pad × 4
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-S2915-24GT4MS-P-L |
| Manufacturer Part Number (MPN) | RG-S2915-24GT4MS-P-L |
| Fixed Service Ports | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB port |
| Packet forwarding rate | 51 Mpps |
| Switching capacity | 68 Gbps |
| CPU | Built-in single-core CPU, with the clock speed of 1.2 GHz |
| Flash memory | 64 MB |
| Memory | 512 MB DDR4 |
| Switch buffer | 512 KB |
| MAC Table Capacity | 16,000 |
| Unit dimensions (W x D x H) | 440 mm x 292 mm x 43.6 mm (17.32 in. x 11.50 in. x 1.72 in.) |
| Rack height | 1 RU |
| Unit weight | 2.8 kg (6.17 lbs) |
| Power supply | Fixed single AC power supply |
| Power input | AC input: rated input voltage 100 V AC to 240 V AC, 50 Hz to 60 Hz; maximum input voltage 90 V AC to 264 V AC, 47 Hz to 63 Hz; maximum input current 6 A |
| Maximum power consumption | 33 W (non-PoE), 403 W (full PoE load) |
| PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
| PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
| PoE output power | Each PoE port provides up to 30 W of power. The maximum power is 370 W |
| Energy saving | Energy Efficient Ethernet (EEE) |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Fan | 2 x fixed fan modules |
| Acoustic noise | ≤ 39 dB |
| Surge protection | Power port: 6 kV/2 kV; Telecom port: 10 kV |
| Safety regulation | IEC 62368-1 |
| VLAN | IEEE 802.1Q (4,094 VLANs) |
| Spanning tree | STP (IEEE 802.1.d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) |
| Ring protection | ERPS (G.8032) |
| Link aggregation | LACP (IEEE 802.3ad) |
| Management | SNMP v1/v2c/v3; CLI (telnet/console), syslog/debug, Web, MACC public cloud |
| Package contents | Chassis × 1, power cord × 1, grounding wire × 1, nylon buckle × 1, mounting bracket × 2, rubber pad × 4 |
