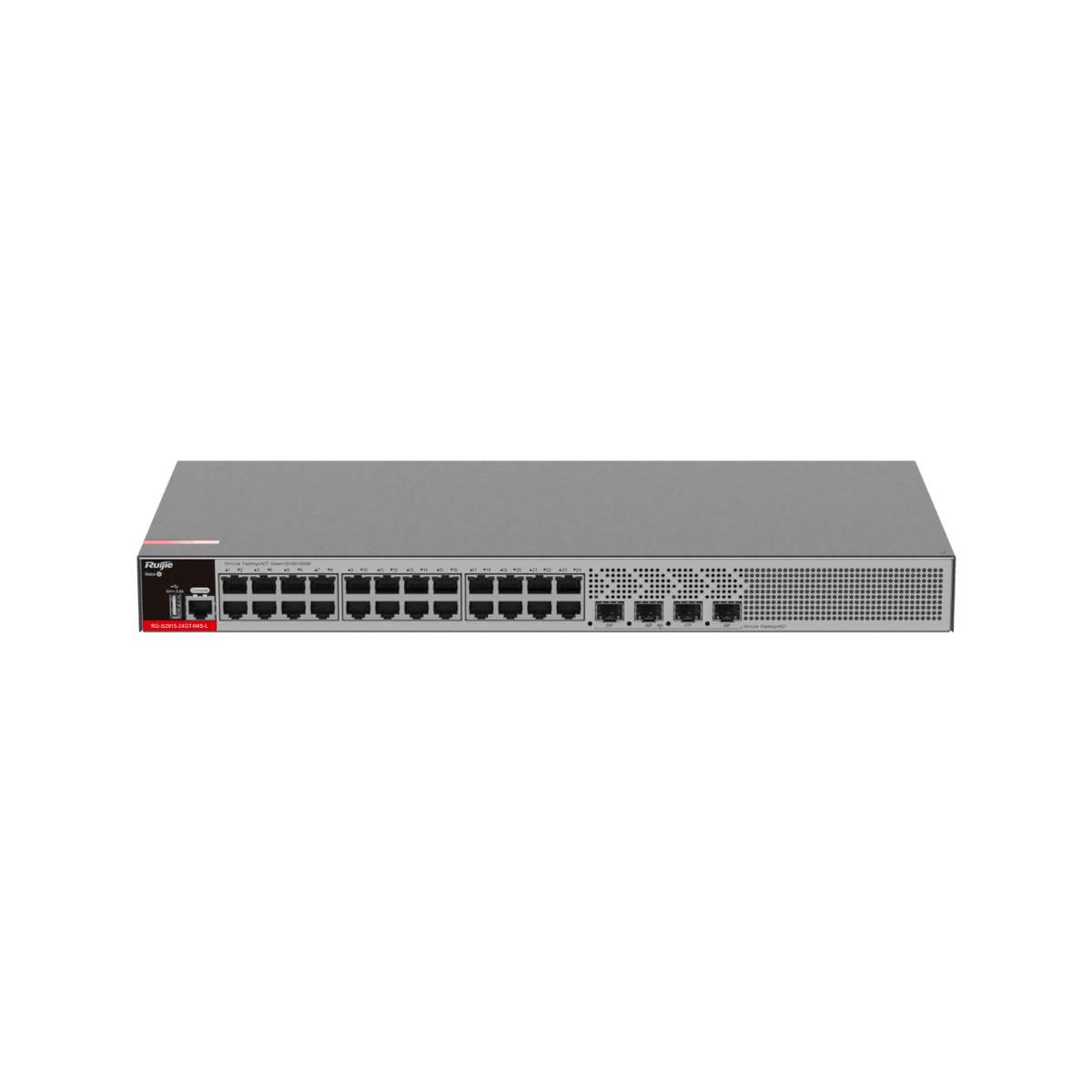

Ruijie RG-S2915-24GT4MS-L Layer 2+ Managed Switch, 24 x 1GE RJ45 Ports, 4 x 2.5GE SFP Uplinks
About this product
The Ruijie RG-S2915-24GT4MS-L is a 24-port 1GE RJ45 Layer 2+ managed switch with four 2.5GE uplink SFP ports, for networks in offices, hotels, retail stores, factories and schools. It has a fanless design with natural heat dissipation and a maximum power consumption of 15.6 W, and offers ease of use through Ruijie Cloud for management and remote O&M.
Key features
- 24 x 10/100/1000BASE-T ports and 4 x 1GE/2.5GE SFP ports
- 2.5GE uplinks, enabling integration into 10GE networks
- Switching capacity 68 Gbps; packet forwarding rate 51 Mpps
- Fanless design, natural heat dissipation
- 10 kV surge protection on telecom ports (power port: 6 kV/2 kV)
- RLDP used to provide smooth network connections, and a CPU protection policy for stability of the switch and nonstop services
- Management through Ruijie Cloud, plus 1 x RJ45 console port and 1 x USB port
- 1 RU rack height, 440 mm x 220 mm x 43.5 mm
Frequently asked questions
Does the RG-S2915-24GT4MS-L support PoE?
No. PoE is not supported on this model; it has 24 x 10/100/1000BASE-T ports and 4 x 1GE/2.5GE SFP ports.
What uplink ports does it have?
4 x 1GE/2.5GE SFP ports. Ruijie says the 2.5GE uplinks enable integration into 10GE networks.
Does it have a fan?
No. It has a fanless design with natural heat dissipation, and its acoustic noise entry is Fanless.
How much power does it use?
Maximum power consumption is 15.6 W, from 1 x fixed power supply rated at 100 V AC to 240 V AC, 50 Hz to 60 Hz, with a maximum input current of 0.6 A.
What size is it?
It has a rack height of 1 RU, measures 440 mm x 220 mm x 43.5 mm (W x D x H) and weighs 2.5 kg (5.51 lbs).
How is it managed?
Through Ruijie Cloud for management and remote O&M, and locally through 1 x RJ45 console port; there is also 1 x USB port.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-S2915-24GT4MS-L |
| Manufacturer Part Number (MPN) | RG-S2915-24GT4MS-L |
| Fixed Service Ports | 24 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB port |
| Packet forwarding rate | 51 Mpps |
| Switching capacity | 68 Gbps |
| CPU | Built-in single-core CPU, with the clock speed of 1.2 GHz |
| Flash memory | 64 MB |
| Memory | 512 MB DDR4 |
| Switch buffer | 512 KB |
| Unit dimensions (W x D x H) | 440 mm x 220 mm x 43.5 mm (17.32 in. x 8.66 in. x 1.71 in.) |
| Rack height | 1 RU |
| Unit weight | 2.5 kg (5.51 lbs) |
| Power supply | 1 x fixed power supply |
| Rated input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum input current | 0.6 A |
| Maximum power consumption | 15.6 W |
| PoE port | Not supported |
| Energy saving | Energy Efficient Ethernet (EEE) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Altitude | 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Heat dissipation | Fanless design, natural heat dissipation |
| Acoustic noise | Fanless |
| Cable hot swapping | Cable hot swapping for all ports |
| ESD | Air discharge: 8 kV/15 kV; Contact discharge: 6 kV/8 kV |
| Surge protection | Power port: 6 kV/2 kV; Telecom port: 10 kV |
