Ruijie RG-S2915-48GT4MS-L Layer 2+ Managed Switch, 48-Port 1GE RJ45, 4-Port 2.5GE SFP Uplink
About this product

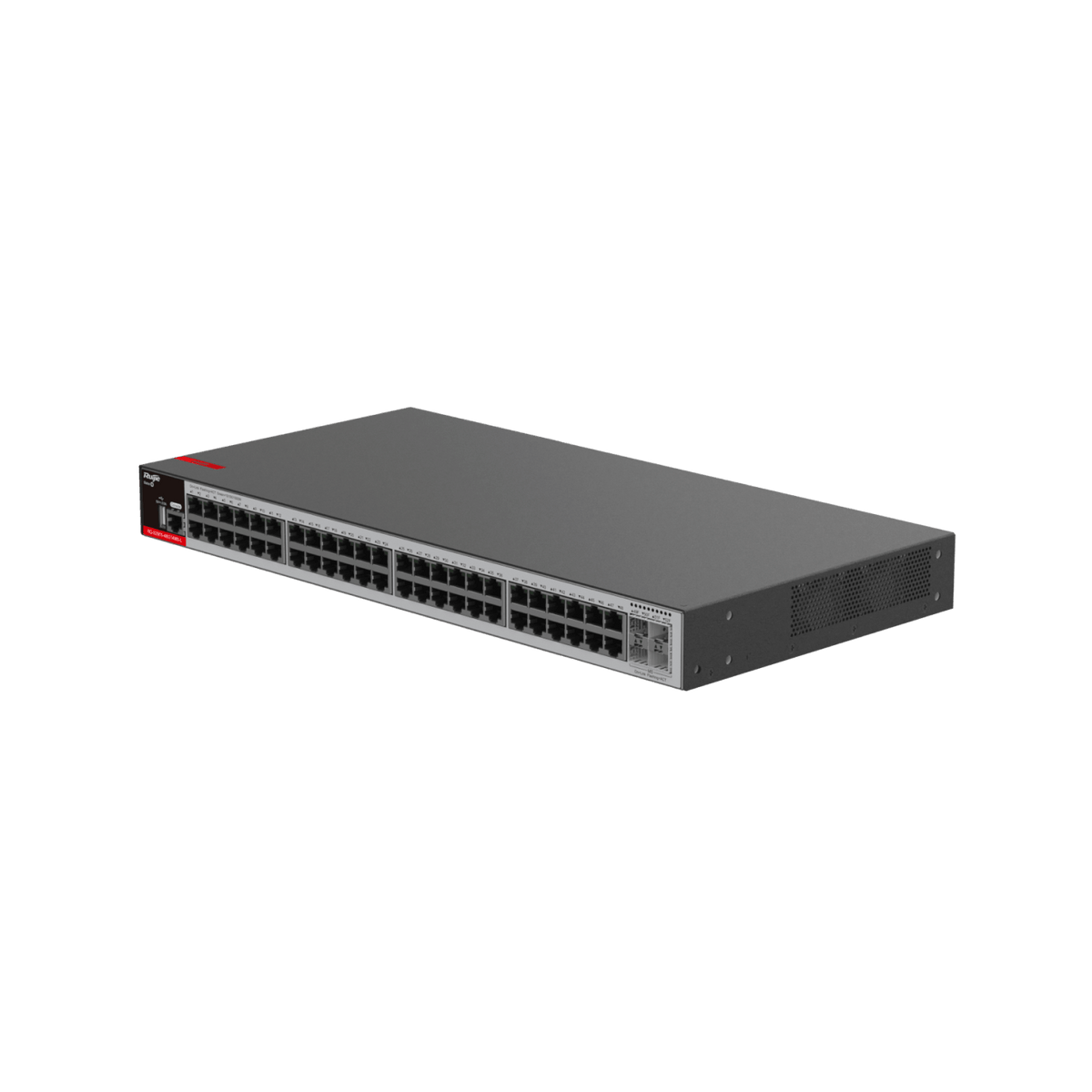

The Ruijie RG-S2915-48GT4MS-L is a 48-port 1GE RJ45 Layer 2+ managed switch with 4 x 2.5GE SFP uplink ports. Ruijie lists offices, hotels, retail stores, factories, and schools as its application scenarios, and it can be managed through Ruijie Cloud for management and remote O&M.
Key features
- 48 x 10/100/1000BASE-T ports
- 4 x 1GE/2.5GE SFP uplink ports
- Switching capacity of 116 Gbps and packet forwarding rate of 87 Mpps
- Ruijie Cloud for management and remote O&M
- RLDP used to provide smooth network connections
- Telecom port surge protection of 10 kV
- 1 RU rack height
- PoE not supported on this model
Frequently asked questions
How many ports does the RG-S2915-48GT4MS-L have?
It has 48 x 10/100/1000BASE-T ports and 4 x 1GE/2.5GE SFP ports, plus 1 x RJ45 console port and 1 x USB port.
Does this switch provide PoE?
No. PoE port: Not supported on this model.
Can it be managed remotely?
Yes. Ruijie lists ease of use through Ruijie Cloud for management and remote O&M.
Is it rack-mountable, and how big is it?
Its rack height is 1 RU, and the unit measures 440 mm x 220 mm x 43.5 mm with a unit weight of 2.8 kg.
How much power does it use?
It has 1 x fixed power supply rated at 100 V AC to 240 V AC, 50 Hz to 60 Hz, and a maximum power consumption of 30 W.
Is it a fanless switch?
No. It uses forced air cooling with 2 x fixed fan modules, and acoustic noise is ≤ 37 dB.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-S2915-48GT4MS-L |
| Manufacturer Part Number (MPN) | RG-S2915-48GT4MS-L |
| Fixed Service Ports | 48 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports |
| Fixed management port | 1 x RJ45 console port |
| USB | 1 x USB port |
| Packet forwarding rate | 87 Mpps |
| Switching capacity | 116 Gbps |
| CPU | Built-in single-core CPU, with the clock speed of 1.2 GHz |
| Flash memory | 64 MB |
| Memory | 512 MB DDR4 |
| Switch buffer | 512 KB |
| Unit dimensions (W x D x H) | 440 mm x 220 mm x 43.5 mm (17.32 in. x 8.66 in. x 1.71 in.) |
| Rack height | 1 RU |
| Unit weight | 2.8 kg (6.17 lbs) |
| Power supply | 1 x fixed power supply |
| Rated input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum power consumption | 30 W |
| PoE port | Not supported |
| Fan | 2 x fixed fan modules |
| Heat dissipation | Forced air cooling |
| Acoustic noise | ≤ 37 dB |
| Energy saving | Energy Efficient Ethernet (EEE) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Altitude | 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
| Mean time between failure (MTBF) | 200,000 hours (about 22 years) |
| Surge protection | Power port: 6 kV/2 kV; Telecom port: 10 kV |
| Safety regulation | IEC 62368-1 |
