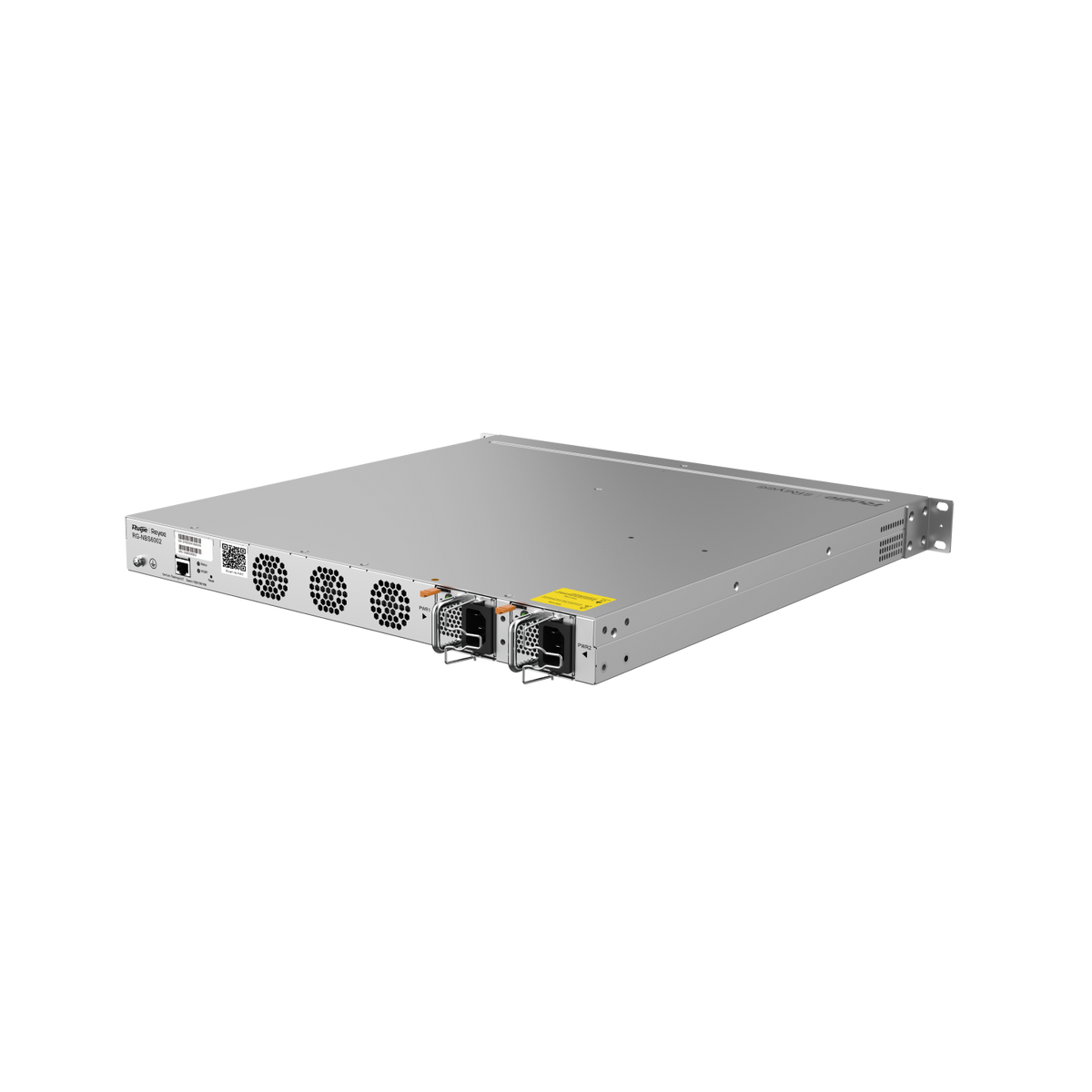

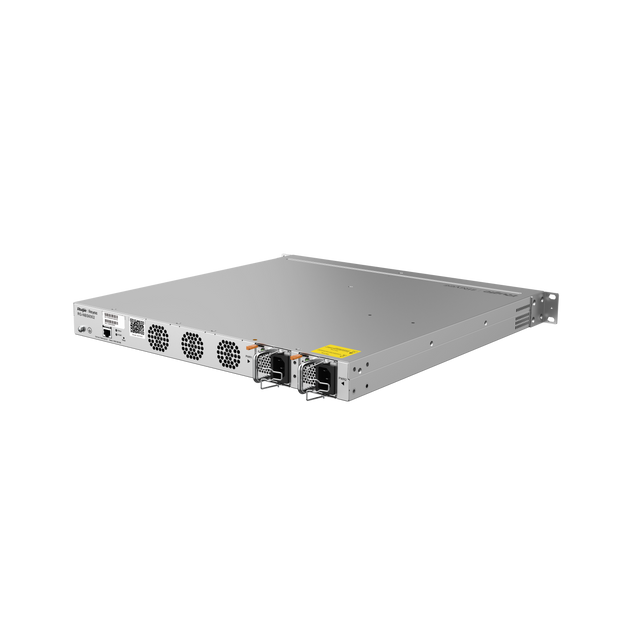

Ruijie RG-NBS6002 Layer 3 Cloud Managed Switch, 2 Line Card Slots, 176 Gbps Switching Capacity
About this product
The Ruijie RG-NBS6002 is a modular Layer 3 cloud managed switch chassis with 2 line card slots and 2 system power module slots, designed as a whole network solution for SMB scenarios. Its RJ45 and 10GE SFP+ port counts depend on the type and number of line cards fitted, and it can be managed through Ruijie Cloud, eWeb or the Ruijie Reyee App.
Key features
- Modular design with 2 line card slots and 2 system power module slots
- Switching capacity of 176 Gbps(bit/s)
- Forwarding rate of 130.94 Mpps
- RJ45 and 10GE SFP+ port quantities set by the type and number of line cards
- Layer 3 routing with OSPFv2 and OSPFv3
- Lifetime management on Ruijie Cloud
- Camera detection and loop alarm
- Rack mounting in a metal casing
Frequently asked questions
How many ports does the RG-NBS6002 have?
The number of RJ45 and 10GE SFP+ ports is determined by the type and number of line cards fitted. The chassis has 2 line card slots.
How is the RG-NBS6002 powered?
Through power modules in its 2 system power module slots. With the RG-PA150I-FS (AC input), the rated input voltage is 100 V AC to 240 V AC, 50/60 Hz, and maximum power consumption is 126 W.
Can the RG-NBS6002 be managed from the cloud?
Yes. It supports Ruijie Cloud management, eWeb management and Ruijie Reyee App management.
Is the RG-NBS6002 rack mounted?
Yes. Its mounting option is rack, and it measures 442 mm x 460 mm x 44 mm (W x D x H).
Does the RG-NBS6002 support VCS?
Yes. The number of VCS members is 2.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS6002 |
| Manufacturer Part Number (MPN) | RG-NBS6002 |
| Product Category | Layer 3 |
| Module slots | 2 line card slots, 2 system power module slots |
| Total number of RJ45 ports | Determine the quantity based on the type and number of line cards. |
| Number of 10GE SFP+ ports | Determine the quantity based on the type and number of line cards. |
| Forwarding rate | 130.94 Mpps |
| Switching capacity | 176 Gbps(bit/s) |
| RAM | 1 GB |
| Flash memory | 256 MB |
| Reset button | 1 |
| Power supply | Power module |
| Power input (RG-PA150I-FS, AC input) | Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum power consumption | 126 W |
| Casing | Metal |
| Product dimensions (W x D x H) | 442 mm x 460 mm x 44 mm (17.4 in. x 18.11 in. x 1.73 in.) |
| Weight | 5.4 kg (11.9 lbs) (including the empty chassis, without packaging materials) |
| Mounting options | Rack |
| Cooling (device) | Air cooling, front-to-rear airflow |
| Hot swapping of fan modules | No |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| Acoustic noise | 25° C (77° F): 68 dB |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Surge protection | Service port: ±6 kV for common mode; Power connector: ±6 kV for both common mode and differential mode |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 32000 |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| Number of VCS members | 2 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
