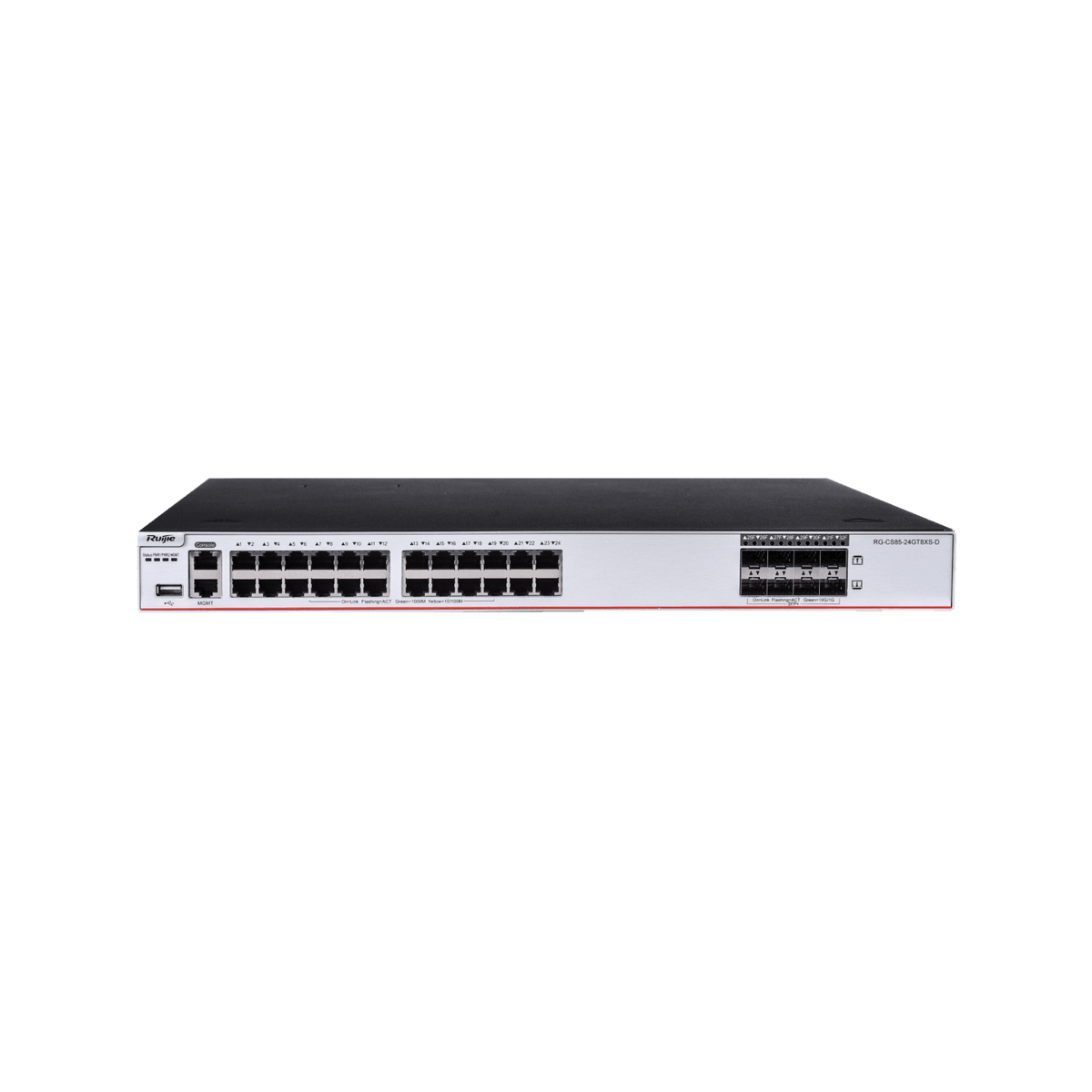

Ruijie RG-CS85-24GT8XS-D Layer 3 Core or Aggregation Switch, 24-Port 1GE RJ45, 8-Port 10GE Uplink
About this product
The Ruijie RG-CS85-24GT8XS-D is a 24-port 1GE RJ45 Layer 3 enterprise-class core or aggregation switch with 8 x 1GE/10GE SFP+ uplink ports; at least one RG-PA150IB-F power module needs to be purchased for it. Ruijie positions it as an aggregation switch for large-sized networks, or a core switch for small- and medium-sized networks.
Key features
- 24 x 10/100/1000BASE-T ports and 8 x 1GE/10GE SFP+ ports
- 1 x expansion module slot for the CM85-4XS2CQ (4 x 1GE/10GE SFP+ ports and 2 x 40GE/100GE QSFP28 ports)
- 2 x power module slots with 1+1 power redundancy and power module hot swapping; purchase at least one RG-PA150IB-F module
- Switching capacity of 688 Gbps and packet forwarding rate of 512 Mpps
- Layer 3 routing control
- VSU virtualization, with up to 4 VSU members
- Management via SNMP, RMON, Syslog, CLI, Eweb and telnet
- 1 x RJ45 console port, 1 x RJ45 MGMT port and 1 x USB 3.0 port
Frequently asked questions
What power module does the RG-CS85-24GT8XS-D need?
It has 2 x power module slots, and at least one RG-PA150IB-F module needs to be purchased for it. The RG-PA150IB-F is a 150 W AC power module.
How many ports does it have?
24 x 10/100/1000BASE-T ports and 8 x 1GE/10GE SFP+ ports, plus 1 x expansion slot.
Can more ports be added?
Yes. The expansion module slot takes the CM85-4XS2CQ, which provides 4 x 1GE/10GE SFP+ ports and 2 x 40GE/100GE QSFP28 ports.
What is its switching capacity?
Switching capacity is 688 Gbps, with a packet forwarding rate of 512 Mpps.
Does it support power redundancy?
Yes. It supports 1+1 power redundancy across its 2 x power module slots, and power module hot swapping is supported.
How can the switch be managed?
Through SNMP, RMON, Syslog, CLI, Eweb and telnet, with 1 x RJ45 console port and 1 x RJ45 MGMT port.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-CS85-24GT8XS-D |
| Manufacturer Part Number (MPN) | RG-CS85-24GT8XS-D |
| Fixed service port | 24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports |
| Module slot | 1 x expansion module slot, 2 x power module slots |
| Expansion module | CM85-4XS2CQ |
| Module service port (CM85-4XS2CQ) | 4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports |
| Power module | RG-PA150IB-F (purchase at least one) |
| Fans | 3 x built-in fixed fans |
| Fixed management port | 1 x RJ45 console port, 1 x RJ45 MGMT port |
| USB | 1 x USB 3.0 port |
| Switching capacity | 688 Gbps |
| Packet forwarding rate | 512 Mpps |
| CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz |
| Flash Memory | 4 GB |
| Memory | 1 GB |
| Switch buffer | 4 MB |
| MAC address table size | 64,000 |
| ARP table size | 24,000 |
| Number of IPv4 unicast routes | 24,000 |
| Number of IPv6 unicast routes | 14,000 |
| Number of VSU members | 4 |
| Rack height | 1 RU |
| Unit weight | 4.4 kg (9.70 lbs) |
| Power supply | 2 x pluggable power modules |
| Power module redundancy | 1+1 power redundancy |
| Power module hot swapping | Supported |
| Power input (RG-PA150IB-F) | Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum output power | RG-PA150IB-F: 150 W |
| Maximum power consumption | 60 W (excluding expansion modules), 85 W (including expansion modules) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
