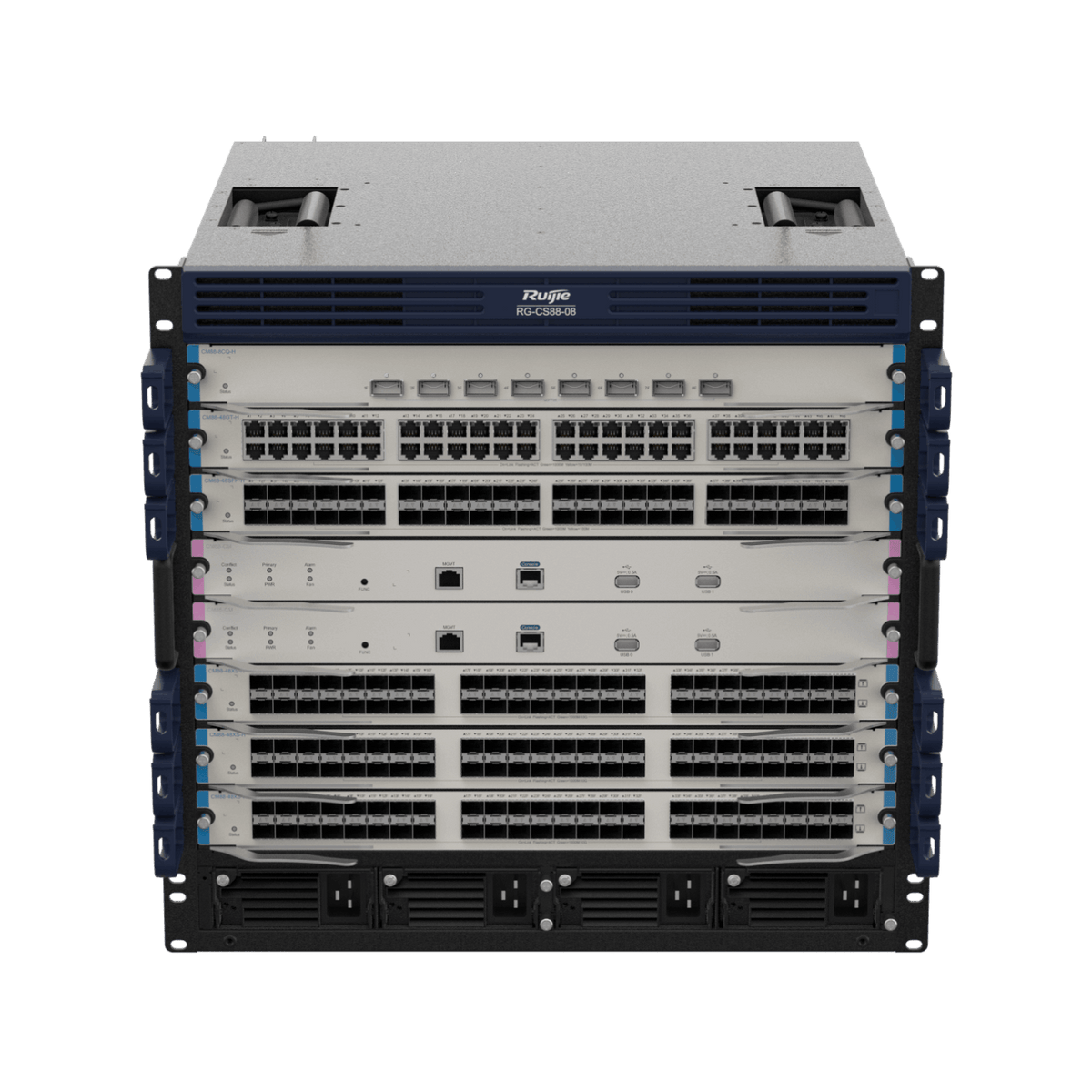

Ruijie RG-CS88-08 Modular High-Performance Core Switch, 10 RU, 6 Line Card Slots
Free Delivery
£
2,936
38
(Incl. VAT)
RRP: £3,523.66
About this product
The Ruijie RG-CS88-08 is a 10 RU modular high-performance core switch with cloud management, built around 2 supervisor module slots, 6 line card slots, 4 power module slots and 2 fan module slots. It is fit for data center, MAN, campus, and integrated data center and campus scenarios.
Key features
- 6 x line card slots and 2 x supervisor module slots in a 10 RU chassis
- Up to 288 10GE ports on high-density 10GE cards
- 40GE and 100GE ports with the CM88-8CQ-H line card (8 x 40GE/100GE QSFP28 ports)
- Switching capacity of 9.6 Tbps and packet forwarding rate of 7200 Mpps
- 2 x pluggable fan modules with 1+1 redundancy
- Hot swapping of supervisor modules, line cards, power modules and fan modules
- MTBF of 216,000 hours (about 24 years)
Frequently asked questions
Which line cards does it take?
CM88-48GT-H (48 x10/100/1000BASE-T ports, RJ45), CM88-48SFP-H (48 x 1GE SFP ports), CM88-48XS-H (48 x 1GE/10GE SFP+ ports) and CM88-8CQ-H (8 x 40GE/100GE QSFP28 ports), in up to 6 line card slots.
How much rack space does it need?
It is 10 RU high, with unit dimensions of 442 mm x 465mm x 441.7 mm (W x D x H). The empty chassis with 2 fan modules weighs 35.6 kg.
What output power do the power modules give?
The RG-PA600I-F gives 600 W. The RG-PA1600I-F gives 1200 W at 100 V AC to 176 V AC and 1600 W at 176 V AC to 240 V AC.
Can modules be replaced while the switch is running?
Hot swapping is supported for supervisor modules, line cards, power modules and fan modules, and all ports on line cards support hot-swapping cables.
What transceivers do the high-speed line cards use?
The 48 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers. The 8 x 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.
£
2,936
38
RRP: £3,523.66
Save £587.28
Price
Technical Details
Specifications
Brand
Ruijie
Model
RG-CS88-08
Manufacturer Part Number (MPN)
RG-CS88-08
Module slot
2 x supervisor module slots, 6 x line card slots, 4 x power module slots, 2 x fan module slots
Supervisor module
CM88-CM
Switch fabric module
CM88-CM (switch fabric module integrated with supervisor module)
Line card
CM88-48GT-H, CM88-48SFP-H, CM88-48XS-H, CM88-8CQ-H
Power module
RG-PA600I-F, RG-PA1600I-F
Fan module
M08-FAN (pre-installed 2)
Module management port
CM88-CM: 1 x RJ45 console port, 1 x RJ45 MGMT port
USB
CM88-CM: 2 x USB 2.0 ports
Switching capacity
9.6 Tbps
Packet forwarding rate
7200 Mpps
CPU (CM88-CM)
quad-core processor, each core with the clock speed of 1.5 GHz
Number of VSU members
2
Unit dimensions (W x D x H)
442 mm x 465mm x 441.7 mm
Rack height
10 RU
Unit weight
35.6 kg (empty chassis with 2 fan modules)
Power supply
4 x pluggable power modules
Power module redundancy
n+n power redundancy (the type of the power supply should be identical)
Rated input voltage (power modules)
100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum output power
RG-PA600I-F: 600 W; RG-PA1600I-F: 1200 W (100 V AC to 176 V AC), 1600 W (176 V AC to 240 V AC)
Power consumption (chassis with 2 fan modules)
< 176 W
Power consumption (CM88-CM supervisor module)
< 50 W
Temperature
Operating: 0°C to 50°C (32°F to 122°F); Storage: –40°C to +70°C (–40°F to +158°F)
Humidity
Operating: 10% to 90% RH (non-condensing); Storage: 5% to 95% RH (non-condensing)
Mean time between failure (MTBF)
216,000 hours (about 24 years)
Fan
2 x pluggable fan modules, 1+1 redundancy
Heat dissipation
Supervisor module/line card: right-to-rear airflow; System power module: front-to-rear airflow
Acoustic noise
27°C (80.6°F): 70 dB; 45°C (113°F): 77 dB
Surge protection
MGMT port: 4 kV; Service port: 4 kV; Power port: 6 kV
Safety regulation
IEC 62368-1
EMC regulation
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-CS88-08 |
| Manufacturer Part Number (MPN) | RG-CS88-08 |
| Module slot | 2 x supervisor module slots, 6 x line card slots, 4 x power module slots, 2 x fan module slots |
| Supervisor module | CM88-CM |
| Switch fabric module | CM88-CM (switch fabric module integrated with supervisor module) |
| Line card | CM88-48GT-H, CM88-48SFP-H, CM88-48XS-H, CM88-8CQ-H |
| Power module | RG-PA600I-F, RG-PA1600I-F |
| Fan module | M08-FAN (pre-installed 2) |
| Module management port | CM88-CM: 1 x RJ45 console port, 1 x RJ45 MGMT port |
| USB | CM88-CM: 2 x USB 2.0 ports |
| Switching capacity | 9.6 Tbps |
| Packet forwarding rate | 7200 Mpps |
| CPU (CM88-CM) | quad-core processor, each core with the clock speed of 1.5 GHz |
| Number of VSU members | 2 |
| Unit dimensions (W x D x H) | 442 mm x 465mm x 441.7 mm |
| Rack height | 10 RU |
| Unit weight | 35.6 kg (empty chassis with 2 fan modules) |
| Power supply | 4 x pluggable power modules |
| Power module redundancy | n+n power redundancy (the type of the power supply should be identical) |
| Rated input voltage (power modules) | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum output power | RG-PA600I-F: 600 W; RG-PA1600I-F: 1200 W (100 V AC to 176 V AC), 1600 W (176 V AC to 240 V AC) |
| Power consumption (chassis with 2 fan modules) | < 176 W |
| Power consumption (CM88-CM supervisor module) | < 50 W |
| Temperature | Operating: 0°C to 50°C (32°F to 122°F); Storage: –40°C to +70°C (–40°F to +158°F) |
| Humidity | Operating: 10% to 90% RH (non-condensing); Storage: 5% to 95% RH (non-condensing) |
| Mean time between failure (MTBF) | 216,000 hours (about 24 years) |
| Fan | 2 x pluggable fan modules, 1+1 redundancy |
| Heat dissipation | Supervisor module/line card: right-to-rear airflow; System power module: front-to-rear airflow |
| Acoustic noise | 27°C (80.6°F): 70 dB; 45°C (113°F): 77 dB |
| Surge protection | MGMT port: 4 kV; Service port: 4 kV; Power port: 6 kV |
| Safety regulation | IEC 62368-1 |
| EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
