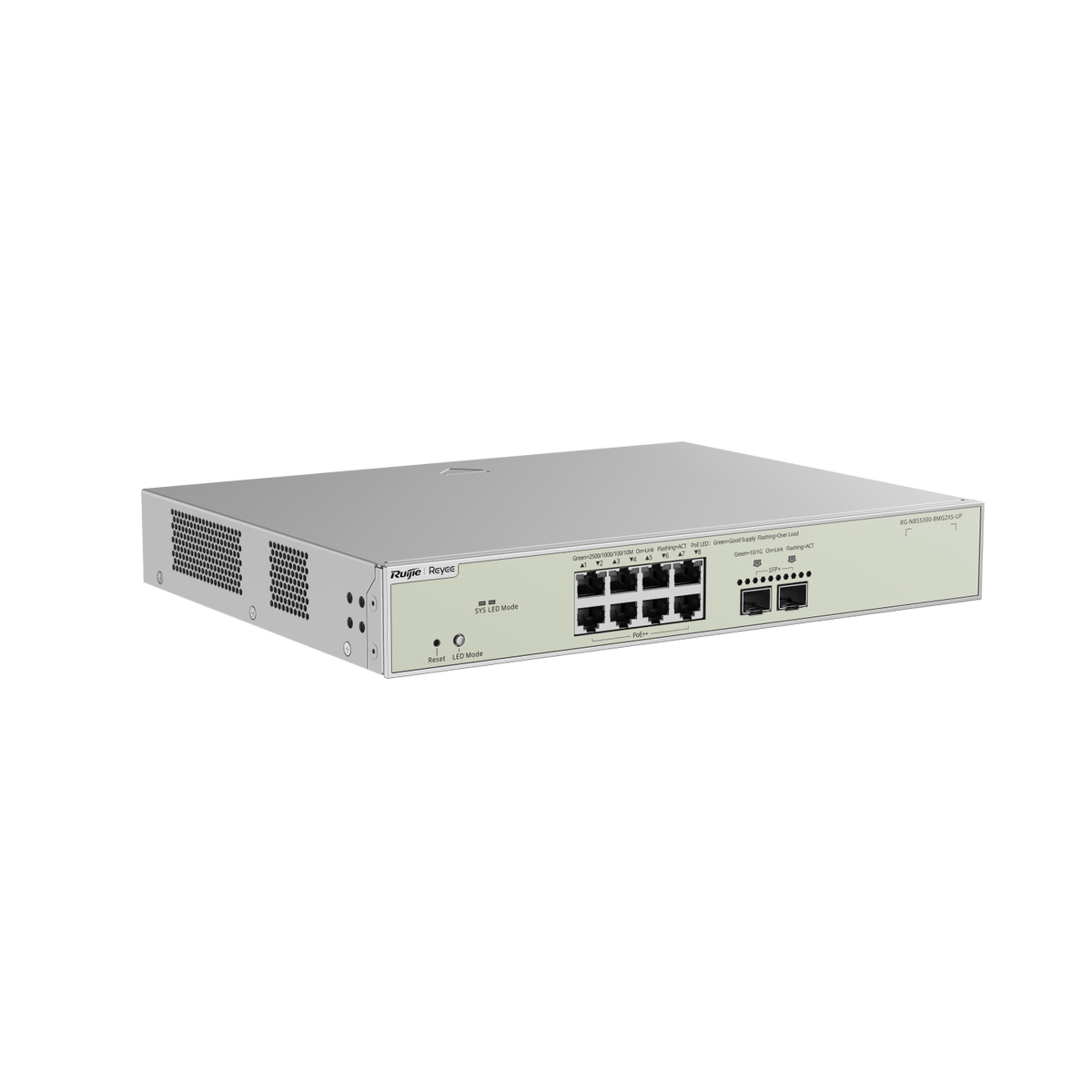

Ruijie RG-NBS5300-8MG2XS-UP Multi-Gigabit Layer 3 Managed PoE Switch, 8 PoE++ Ports, 370W PoE Budget
About this product
The Ruijie RG-NBS5300-8MG2XS-UP is a 10-port Multi-Gigabit Layer 3 managed switch with 8 PoE++ ports and 2 SFP+ uplink ports, for networks in enterprise, hotel, factory, education and retail settings. Its 2.5 Gbps ports unlock the full potential of WiFi 6 APs, its PoE++ ports share a total power supply of 370W, and it supports lifetime management on Ruijie Cloud.
Key features
- 8 × 10/100/1000/2500BASE-T ports, all PoE/PoE+/PoE++ out
- 2 × 10GE SFP+ uplink ports
- PoE Out standard: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
- PoE budget of 370 W
- Layer 3 switching with static routing and OSPFv2/OSPFv3
- Switching capacity of 80 Gbps and forwarding rate of 59.52 Mpps
- Security features: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
- Lifetime management on Ruijie Cloud
Frequently asked questions
How much PoE power does the RG-NBS5300-8MG2XS-UP provide?
It has a PoE budget of 370 W shared across its 8 PoE/PoE+/PoE++ out ports.
Which PoE standards does it support?
PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) on all 8 RJ45 ports.
What uplink ports does it have?
2 × 10GE SFP+ ports for uplinks, alongside 8 × 10/100/1000/2500BASE-T ports.
Is it a Layer 3 switch?
Yes. The product category is Layer 3, with IPv4 and IPv6 static routes and OSPFv2/OSPFv3.
Can it be managed from the cloud?
Yes, it supports lifetime management on Ruijie Cloud at anytime, anywhere.
How is it mounted and powered?
It is rack mounted and has a fixed power supply with a rated input voltage of 100 V AC to 240 V AC, 50/60 Hz.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-NBS5300-8MG2XS-UP |
| Manufacturer Part Number (MPN) | RG-NBS5300-8MG2XS-UP |
| Product Category | Layer 3 |
| Number of 10/100/1000/2500BASE-T ports | 8 |
| Number of 10GE SFP+ ports | 2 |
| Number of PoE/PoE+/PoE++ Out ports | 8 |
| PoE Out standard | PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) |
| PoE budget | 370 W |
| Power input | Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz |
| Maximum power consumption | 450 W |
| Power supply | Fixed power supply |
| Switching capacity | 80 Gbps(bit/s) |
| Forwarding rate | 59.52 Mpps |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC address entries | 16000 |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| Mounting options | Rack |
| Casing | Metal |
| Fan | 2 x fixed fans |
| Product dimensions (W x D x H) | 300 mm x 233 mm x 43.6 mm |
| Weight | 2.5 kg (without packaging materials) |
| Operating temperature | 0° C to +50° C |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| MTBF | 400,000 hours |
