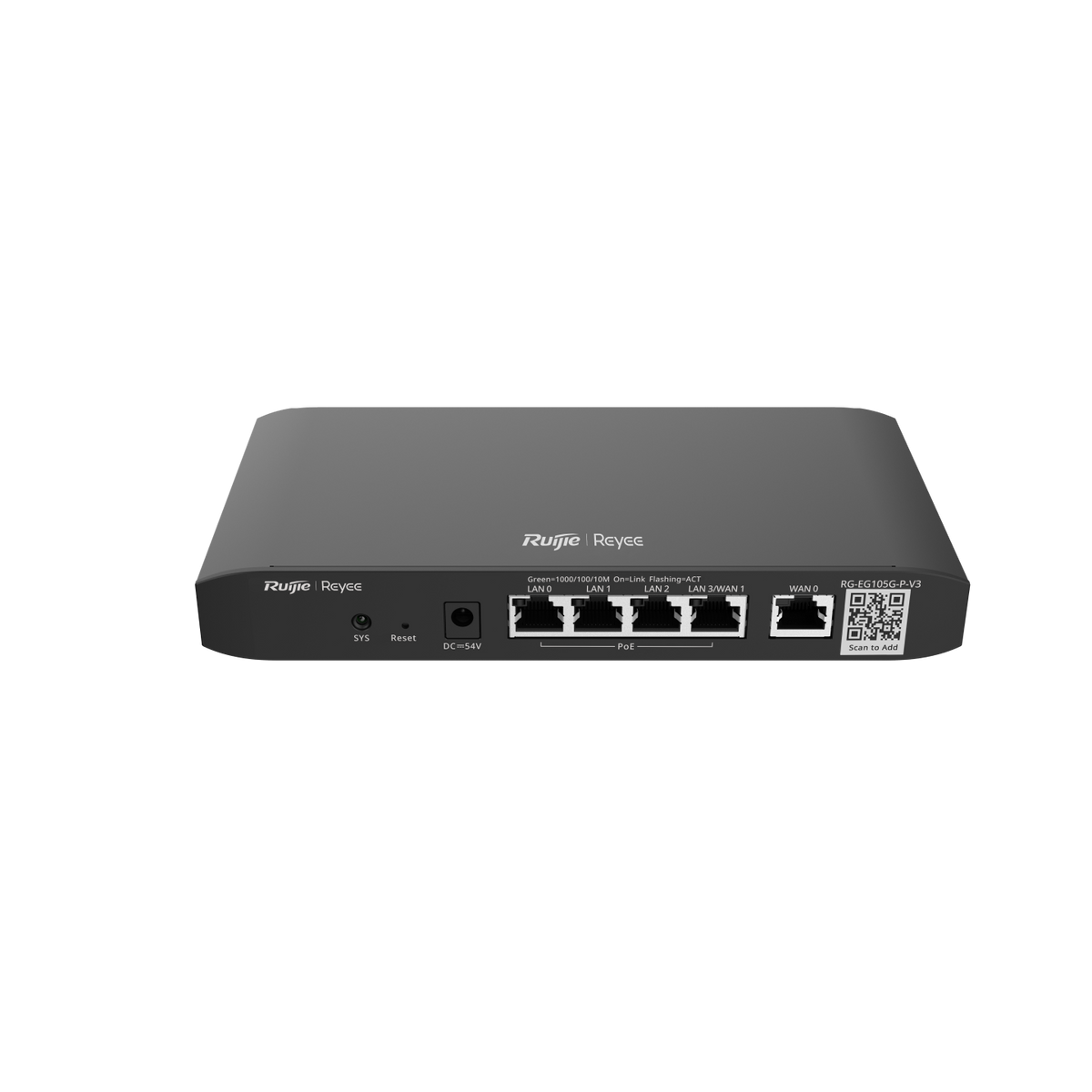

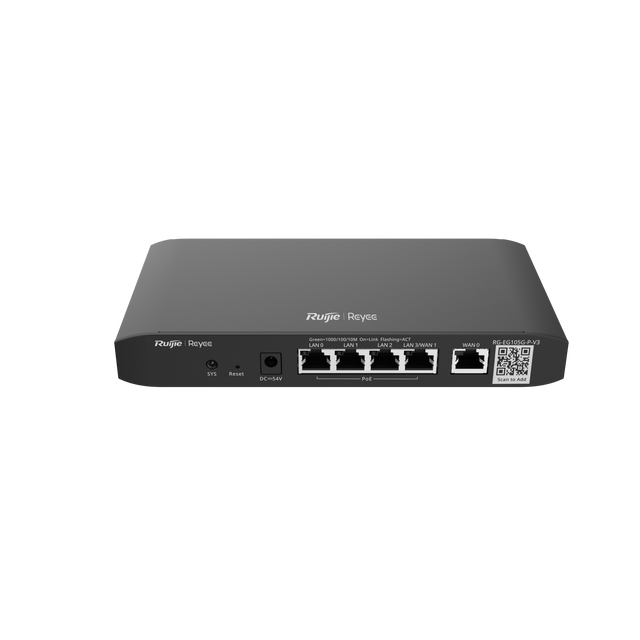

Ruijie RG-EG105G-P-V3 Reyee Cloud Managed PoE Router, 5 Gigabit Ports, 4 PoE+ Out
About this product
The Ruijie RG-EG105G-P-V3 is a Reyee cloud managed PoE router with 5 Gigabit ports, 4 PoE+ outputs and a 54 W PoE budget. It is made for office, hotel, school, retail, CCTV and home networks, with a recommended 100 concurrent clients.
Key features
- 5 × 10/100/1000BASE-T ports
- 4 PoE Out ports to IEEE 802.3af/at (PoE/PoE+)
- 54 W PoE budget, 30 W per port
- Throughput of 1000 Mbps (Turbo Mode) or 600 Mbps (Normal Mode)
- Recommended for 100 concurrent clients
- Load balancing and WAN failover across WAN ports
- Secure remote access to internal devices
- Fanless design for desk mounting
Frequently asked questions
How much PoE power does the RG-EG105G-P-V3 provide?
It has a 54 W PoE budget across 4 PoE Out ports, with a PoE budget per port of 30 W, to IEEE 802.3af/at (PoE/PoE+).
How many users can it handle?
The recommended number of concurrent clients is 100, and it supports up to 20000 concurrent sessions.
What throughput does it reach?
1000 Mbps in Turbo Mode and 600 Mbps in Normal Mode.
Can an NVR on the local network be reached remotely?
Yes. IP devices on the local network can be accessed through the intranet access function.
How many WAN ports does it have?
It has 1 fixed WAN port and 1 LAN/WAN port, for a maximum of 2 WAN ports, with load balancing and WAN failover.
How is it powered and mounted?
It runs from a DC power adapter, with a maximum power consumption of 60 W, and it is desk mounted.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-EG105G-P-V3 |
| Manufacturer Part Number (MPN) | RG-EG105G-P-V3 |
| Number of 10/100/1000BASE-T ports | 5 |
| Number of fixed LAN ports | 3 |
| Number of fixed WAN ports | 1 |
| Number of LAN/WAN ports | 1 |
| Maximum number of LAN ports | 4 |
| Maximum number of WAN ports | 2 |
| Number of PoE Out ports | 4 |
| PoE Out standard | IEEE 802.3af/at (PoE/PoE+) |
| PoE budget | 54 W |
| PoE budget per port | 30 W |
| Maximum power consumption | 60 W |
| Power supply | DC power adapter |
| CPU | Dual-core processor, 880 MHz clock frequency per core |
| Flash memory | 32 MB |
| RAM | 128 MB |
| Throughput (Turbo Mode) | 1000 Mbps (Turbo Mode) |
| Throughput (Normal Mode) | 600 Mbps (Normal Mode) |
| Recommended number of concurrent clients | 100 |
| Maximum number of concurrent sessions | 20000 |
| Product dimensions (W x D x H) | 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.) |
| Weight | 0.406 kg (0.9 lbs) |
| Mounting options | Desk |
| Fan | Fanless design |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
