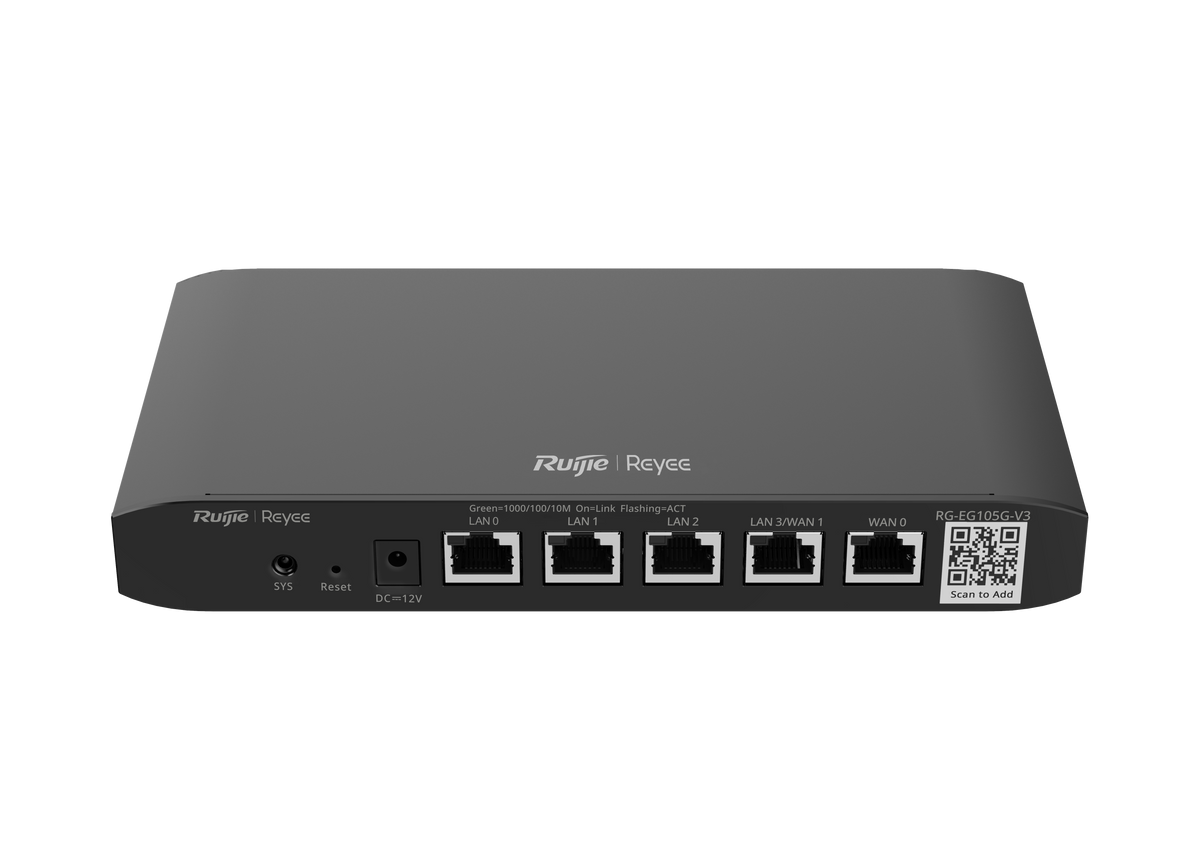

Ruijie RG-EG105G-V3 Reyee Cloud Managed Router, 5 Gigabit Ports, 100 Users
About this product
The Ruijie RG-EG105G-V3 is a Reyee cloud managed router with five 10/100/1000BASE-T ports (3 fixed LAN, 1 fixed WAN and 1 LAN/WAN) and a recommended 100 concurrent clients. Ruijie names office, hotel, school, retail, CCTV and home networks among its applications, with load balancing through WAN ports and secure remote access to internal devices.
Key features
- 5 x 10/100/1000BASE-T ports: 3 fixed LAN, 1 fixed WAN, 1 LAN/WAN
- Maximum of 4 LAN ports or 2 WAN ports
- Throughput: 1000 Mbps (Turbo Mode), 600 Mbps (Normal Mode)
- Recommended 100 concurrent clients; maximum 20000 concurrent sessions
- Dual-core processor, 880 MHz clock frequency per core, with 32 MB flash and 128 MB RAM
- Load balancing and WAN failover
- Application recognition and priority, with website filtering by custom URL
- Fanless design with natural cooling; maximum power consumption 12 W
Frequently asked questions
How many users can the Ruijie RG-EG105G-V3 handle?
The recommended number of concurrent clients is 100, and the maximum number of concurrent sessions is 20000.
How fast is the RG-EG105G-V3?
Throughput is 1000 Mbps in Turbo Mode and 600 Mbps in Normal Mode.
Can the RG-EG105G-V3 use two internet connections?
Yes. It supports a maximum of 2 WAN ports, with load balancing and WAN failover.
Can a local NVR be accessed remotely through the RG-EG105G-V3?
Yes. IP devices on the local network can be accessed through the intranet access function.
How is the RG-EG105G-V3 powered?
It runs from a DC power adapter, with a maximum power consumption of 12 W.
What ports does the RG-EG105G-V3 have?
Five 10/100/1000BASE-T ports: 3 fixed LAN ports, 1 fixed WAN port and 1 LAN/WAN port.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-EG105G-V3 |
| Manufacturer Part Number (MPN) | RG-EG105G-V3 |
| Total number of RJ45 ports | 5 |
| Number of 10/100/1000BASE-T ports | 5 |
| Number of fixed LAN ports | 3 |
| Number of fixed WAN ports | 1 |
| Number of LAN/WAN ports | 1 |
| Maximum number of LAN ports | 4 |
| Maximum number of WAN ports | 2 |
| CPU | Dual-core processor, 880 MHz clock frequency per core |
| Flash memory | 32 MB |
| RAM | 128 MB |
| Power supply | DC power adapter |
| Maximum power consumption | 12 W |
| Product dimensions (W x D x H) | 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.) |
| Weight | 0.406 kg (0.9 lbs) |
| Cooling | Natural cooling |
| Fan | Fanless design |
| Mounting options | Desk |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage temperature | –40° C to +70° C (–40° F to +158° F) |
| Recommended number of concurrent clients | 100 |
| Maximum number of concurrent sessions | 20000 |
| Throughput | 1000 Mbps (Turbo Mode); 600 Mbps (Normal Mode) |
