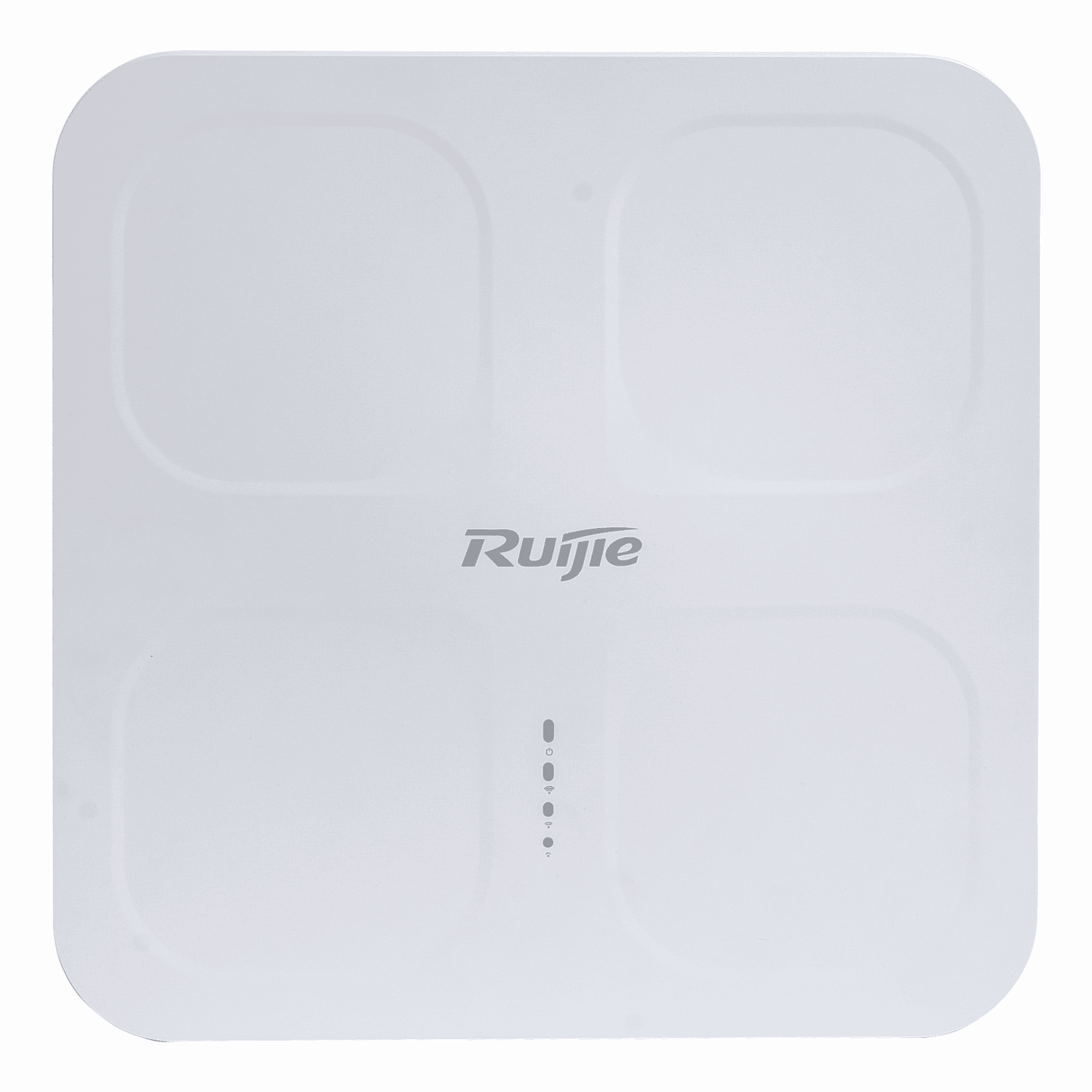

Ruijie RG-AP680P-L Outdoor Wi-Fi 6 Access Point, 4x4+4x4, 10G SFP+ IP68 RG-AP680P-L

Introduction to the Ruijie RG-AP680P-L and its key features

The Ruijie RG-AP680P-L is a purpose-built outdoor Wi‑Fi 6 access point designed for demanding, high‑density environments. Combining dual 4×4 radios, integrated omnidirectional antennas, multi‑gigabit uplinks and rugged IP68 protection, this model is aimed at campuses, citywide deployments, transport hubs, stadium perimeters and industrial sites where reliable wireless capacity and weather‑proof reliability are essential.

Key features at a glance:

• Wi‑Fi 6 performance:Dual‑radio 4×4 on both 2.4 GHz and 5 GHz (up to 8 spatial streams) for a combined peak throughput up to 5.951 Gbps.
• Multi‑gigabit connectivity:10G SFP+ uplink plus a 2.5/5 GBASE‑T RJ45 port and a 1 G downlink for flexible backhaul and edge connectivity.
• Rugged design:IP68 enclosure, −40°C to +65°C operating range, salt‑spray corrosion protection and integrated 6 kV surge protection for harsh outdoor use.
• PoE++ ready:Supports 802.3af/at/bt and performs best with 802.3bt, with the ability to power downstream IoT devices on the LAN2 port when PoE++ is present.
• Flexible management:Operate as standalone, use a controller (fit mode) or manage centrally via Ruijie Cloud with mobile app support.

Detailed specifications and benefits

The RG-AP680P-L is engineered with a set of technical specifications that translate into practical benefits for network operators. Below is a summary of the most relevant technical details followed by what they mean in real deployments.

• Standards:IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6) to support the latest client devices and enhancements such as OFDMA and MU‑MIMO.
• Radios / streams:Dual radio — 2.4 GHz 4×4, 5 GHz 4×4 (up to 8 spatial streams) for simultaneous multi‑client throughput.
• Peak combined rate:Up to 5.951 Gbps (≈1.147 Gbps @2.4 GHz + 4.804 Gbps @5 GHz), providing ample capacity for dense user populations.
• Antennas:Integrated omnidirectional antennas (approx. 5 dBi / 5.5 dBi) with Bluetooth 5.1 and GPS radios for location and IoT services.
• Ports:1 × 10G SFP+ (supports 1G/2.5G modules), 1 × 100/1000/2.5/5 GBASE‑T RJ45, 1 × 100/1000 RJ45 downlink, plus an RJ45 console port.
• PoE / Power:802.3af/at/bt supported; optimal operation with 802.3bt (PoE++). Typical max consumption ~40 W; idle ~10 W.
• Environmental:IP68 rated enclosure, operates from −40°C to +65°C, with salt‑spray corrosion protection and integrated 6 kV surge protection.
• Management:Standalone (fat), controller (fit) or Ruijie Cloud management with mobile app options for large‑scale orchestration.

• Higher per‑AP capacity:Wi‑Fi 6 features like OFDMA and 8 spatial streams let the AP serve many simultaneous devices efficiently, reducing congestion and improving average throughput.
• Future‑proof uplinks:A 10G SFP+ port and multi‑gig RJ45 enable high‑bandwidth backhaul without immediate rewiring, allowing growth as user demands increase.
• Resilience in harsh environments:IP68 protection, wide temperature tolerance and chemical corrosion resistance make the unit suitable for coastal, desert and industrial locations where indoor APs would fail.
• Power flexibility and IoT support:PoE++ capability supports high power draw for radio operation and allows the AP to pass power to modest downstream IoT devices on LAN2, simplifying deployments.
• Operational simplicity:Choice of management modes gives operators the flexibility to manage a single AP in standalone mode or thousands centrally through Ruijie Cloud for monitoring, updates and analytics.

Use cases and scenarios where the RG-AP680P-L excels

This AP is optimized for outdoor scenarios where density, durability and throughput matter. Typical use cases include:

• University and corporate campuses:Cover open plazas, courtyards and pedestrian corridors with reliable high‑throughput Wi‑Fi for students and staff. The integrated GPS and Bluetooth can support location services and asset tracking.
• City and municipal Wi‑Fi:Deploy across public spaces, transport interchanges and event zones to provide residents and visitors with consistent connectivity and services such as digital signage and public safety cameras.
• Transport hubs:Airports, train stations and bus terminals demand both capacity and durability. The RG-AP680P-L supports dense passenger devices and simplifies backhaul via multi‑gig ports.
• Stadium perimeters and outdoor events:While indoor bowl coverage often uses other APs, perimeter areas, fan zones and entry plazas benefit from an outdoor AP that can handle bursts of thousands of users.
• Industrial and energy sites:Ruggedisation, surge protection and wide temperature range make this AP suitable for mines, power stations and utility substations requiring robust wireless telemetry and operator connectivity.

Comparisons with similar products in the market

When evaluating outdoor Wi‑Fi 6 APs, consider three broad factors: radio performance, uplink flexibility and ruggedisation. Here’s how the RG-AP680P-L stacks up against typical alternatives:

• Vs. entry‑level outdoor Wi‑Fi 6 APs:Many lower‑cost outdoor APs offer 2×2 radios and 1 G uplinks. The RG-AP680P-L’s 4×4+4×4 radios and 10G SFP+ give substantially higher capacity and future‑proof uplink options—important for dense public spaces.
• Vs. competitor enterprise models:Established enterprise vendors provide outdoor APs with similar Wi‑Fi 6 capabilities, but not all include 10G SFP+, integrated 6 kV surge protection and true IP68 rating. If your deployment requires extreme environmental protection and high backhaul bandwidth, the RG-AP680P-L is a strong contender.
• Vs. proprietary fixed wireless systems:Fixed wireless systems from broadband vendors focus on point‑to‑point or point‑to‑multipoint links, whereas the RG-AP680P-L is a general‑purpose AP with client‑serving features, Bluetooth/GPS integration and flexible management—better for service diversity and IoT integration.

Total cost of ownership should account for savings on fewer units needed due to higher capacity, reduced cabling upgrades thanks to multi‑gig uplinks, and lower maintenance over time due to rugged hardware.

Conclusion: why the RG-AP680P-L is a strong choice

The Ruijie RG-AP680P-L combines the key elements that matter for outdoor enterprise and carrier Wi‑Fi: high client capacity through Wi‑Fi 6 and 8 spatial streams, multi‑gig uplink flexibility with 10G SFP+, and a rugged, IP68 certified enclosure built for years of operation in harsh environments. Its PoE++ readiness and ability to power downstream IoT devices simplify deployments, while Ruijieʹs management options—from standalone to cloud—scale from single installations to large multi‑site rollouts.

For organisations planning outdoor wireless coverage where performance, durability and future growth are priorities, the RG-AP680P-L is a compelling option. Evaluate expected client density, backhaul strategy and power availability to determine whether its multi‑gig uplinks and PoE++ support align with your network design. When those requirements match, this AP delivers a resilient, high‑capacity foundation for modern outdoor wireless services.
