Ruijie CM88-48SFP-H SFP Line Card, 48 x 1GE SFP Ports
Free Delivery
£
3,524
20
(Incl. VAT)
RRP: £4,229.04
About this product

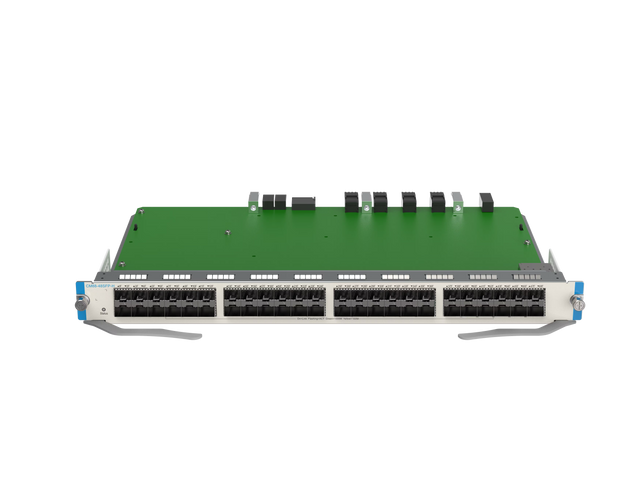

The Ruijie CM88-48SFP-H is a line card for the Ruijie RG-CS88-08 modular core switch, adding 48 x 1GE SFP ports to one of the chassis's 6 x line card slots.
Key features
- 48 x 1GE SFP service ports
- 8 MB switch buffer
- 80,000 global MAC addresses
- 12,000 IPv4 unicast routes (default and recommended, shared with IPv6 routes)
- 1.5 GHz quad-core processor (each core)
- 2 GB DDR4 memory
- Module power consumption of < 95 W
- Module hot swapping supported for line cards
Frequently asked questions
Which switch does the Ruijie CM88-48SFP-H fit?
It is a line card for the Ruijie RG-CS88-08 modular core switch, which has 6 x line card slots.
What ports does the CM88-48SFP-H have?
48 x 1GE SFP ports.
How much power does the CM88-48SFP-H use?
Its module power consumption is < 95 W.
Can the CM88-48SFP-H be hot swapped?
Yes. The RG-CS88-08 supports module hot swapping for supervisor modules and line cards, and all ports on line cards support hot-swapping cables.
How many routes does the CM88-48SFP-H support?
12,000 IPv4 unicast routes (default and recommended, shared with IPv6 routes), 8,000 IPv4 multicast routes, 6,000 IPv6 unicast routes (shared with IPv4 routes) and 4,000 IPv6 multicast routes.
£
3,524
20
RRP: £4,229.04
Save £704.84
Price
Technical Details
Specifications
Brand
Ruijie
Model
CM88-48SFP-H
Manufacturer Part Number (MPN)
CM88-48SFP-H
Module service port
48 x 1GE SFP ports
Compatible chassis
RG-CS88-08
Switch buffer
8 MB
Number of global MAC addresses
80,000
Number of static MAC addresses
4,000
ARP table size
underlay: 30,000, overlay: 0
Number of IPv4 unicast routes
12,000 (default and recommended, shared with IPv6 routes)
Number of IPv4 multicast routes
8,000
Number of IPv6 unicast routes
6,000 (shared with IPv4 routes)
Number of IPv6 multicast routes
4,000
Number of ACEs (ingress)
5,000
Number of ACEs (egress)
1,000
Module power consumption
< 95 W
CPU
quad-core processor, each core with the clock speed of 1.5 GHz
BootROM
16MB (2 flash chips for 1+1 boot redundancy)
Flash memory
8 GB
Memory
2 GB DDR4
Module hot swapping
Supported: supervisor modules, line cards
Cable hot swapping
All ports on line cards support hot-swapping cables.
Heat dissipation
right-to-rear airflow
Specifications
| Brand | Ruijie |
|---|---|
| Model | CM88-48SFP-H |
| Manufacturer Part Number (MPN) | CM88-48SFP-H |
| Module service port | 48 x 1GE SFP ports |
| Compatible chassis | RG-CS88-08 |
| Switch buffer | 8 MB |
| Number of global MAC addresses | 80,000 |
| Number of static MAC addresses | 4,000 |
| ARP table size | underlay: 30,000, overlay: 0 |
| Number of IPv4 unicast routes | 12,000 (default and recommended, shared with IPv6 routes) |
| Number of IPv4 multicast routes | 8,000 |
| Number of IPv6 unicast routes | 6,000 (shared with IPv4 routes) |
| Number of IPv6 multicast routes | 4,000 |
| Number of ACEs (ingress) | 5,000 |
| Number of ACEs (egress) | 1,000 |
| Module power consumption | < 95 W |
| CPU | quad-core processor, each core with the clock speed of 1.5 GHz |
| BootROM | 16MB (2 flash chips for 1+1 boot redundancy) |
| Flash memory | 8 GB |
| Memory | 2 GB DDR4 |
| Module hot swapping | Supported: supervisor modules, line cards |
| Cable hot swapping | All ports on line cards support hot-swapping cables. |
| Heat dissipation | right-to-rear airflow |
Ruijie CM88-48SFP-H SFP Line Card, 48 x 1GE SFP Ports
