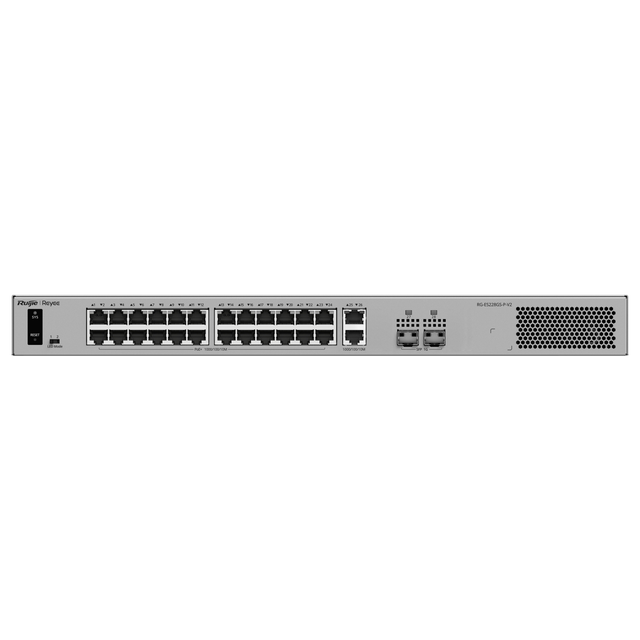

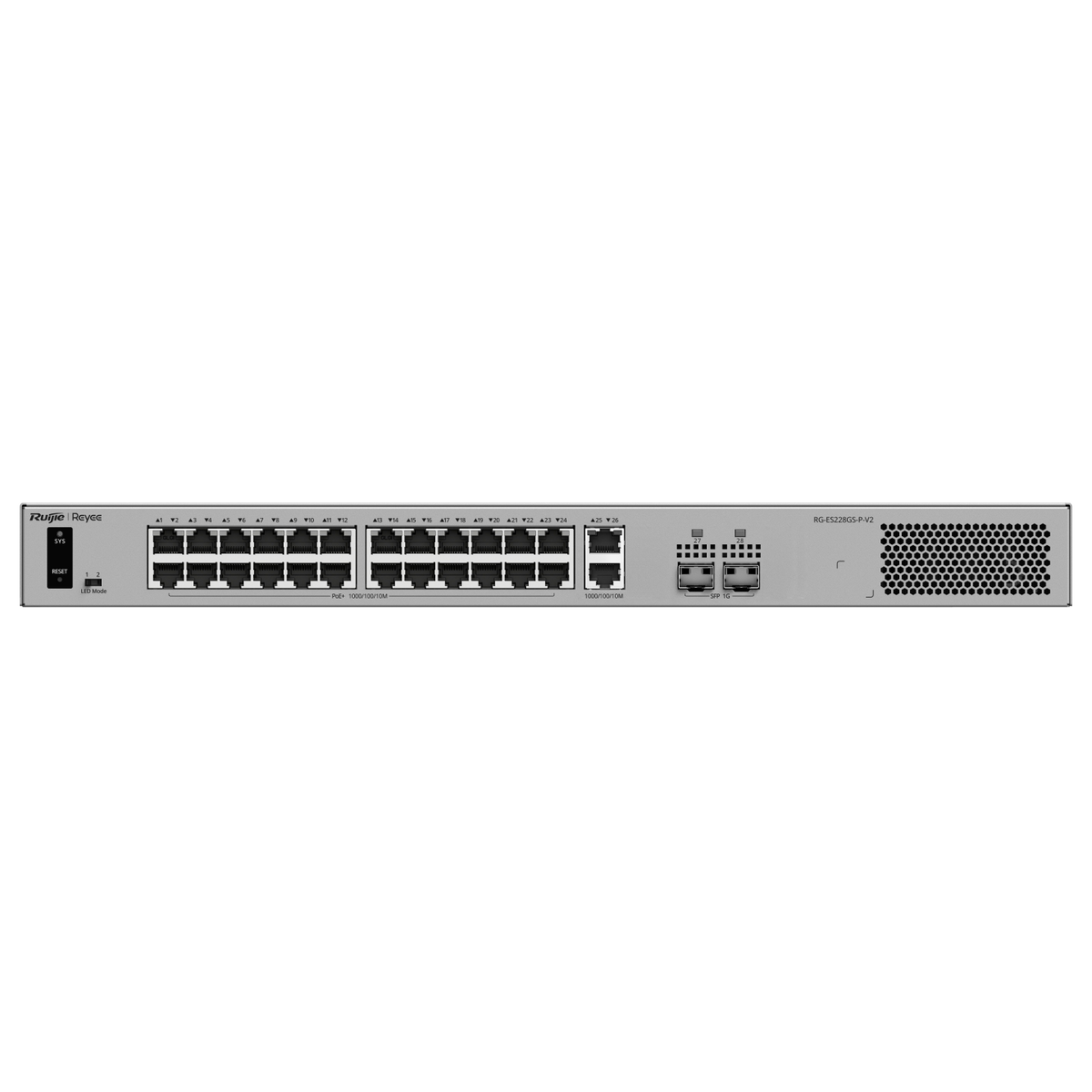

Ruijie RG-ES228GS-P-V2 Smart Cloud-Managed PoE Switch, 24 PoE+ Ports, 370 W PoE Budget
About this product
The Ruijie RG-ES228GS-P-V2 is a 26-port Gigabit smart cloud-managed PoE switch with 2-port SFP, for CCTV, office, hotel, factory and retail networks. It has 24 x 10/100/1000BASE-T PoE+ ports with a 370 W PoE budget, 2 x 10/100/1000BASE-T ports and 2 x 1GE SFP ports, with lifetime management on Ruijie Cloud at anytime anywhere.
Key features
- 24 x 10/100/1000BASE-T PoE+ ports
- 370 W PoE budget
- 2 x 10/100/1000BASE-T ports and 2 x 1GE SFP ports
- 2 x SFP ports for ERPS
- IP Camera Recognition for CCTV networks
- Perpetual PoE and PoE watchdog
- Lifetime management on Ruijie Cloud at anytime anywhere
- 56 Gbps(bit/s) switching capacity, 41.66 Mpps forwarding rate
Frequently asked questions
How many PoE ports does the RG-ES228GS-P-V2 have, and what is the PoE budget?
It has 24 PoE/PoE+ out ports (24 x 10/100/1000BASE-T PoE+ ports) with a 370 W PoE budget.
Which other ports does it have besides the PoE ports?
Besides the 24 PoE+ ports, it has 2 x 10/100/1000BASE-T ports and 2 x 1GE SFP ports; the 2 x SFP ports support ERPS.
How is the switch managed?
It is a smart cloud-managed switch, with lifetime management on Ruijie Cloud at anytime anywhere.
What are its switching capacity and forwarding rate?
Switching capacity is 56 Gbps(bit/s) and the forwarding rate is 41.66 Mpps.
What operating temperature is it rated for?
0°C to 40°C (32°F to 104°F).
Does it support PoE watchdog and port isolation?
Yes. PoE watchdog and port isolation are both supported.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-ES228GS-P-V2 |
| Manufacturer Part Number (MPN) | RG-ES228GS-P-V2 |
| Ports | 24 x 10/100/1000BASE-T PoE+ Ports, 2 x 10/100/1000BASE-T Ports, 2 x 1GE SFP Ports |
| Product Category | Layer 2 |
| Total number of RJ45 ports | 26 |
| Total number of optical ports | 2 |
| Number of 1GE SFP ports | 2 |
| Number of 10/100/1000BASE-T ports | 26 |
| Number of PoE Out ports | 24 |
| Number of PoE/PoE+ Out ports | 24 |
| PoE budget | 370 W |
| PoE power pins | 1–2 (+), 3–6 (-) |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbps(bit/s) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| PoE watchdog | Yes |
| Port isolation | Yes |
