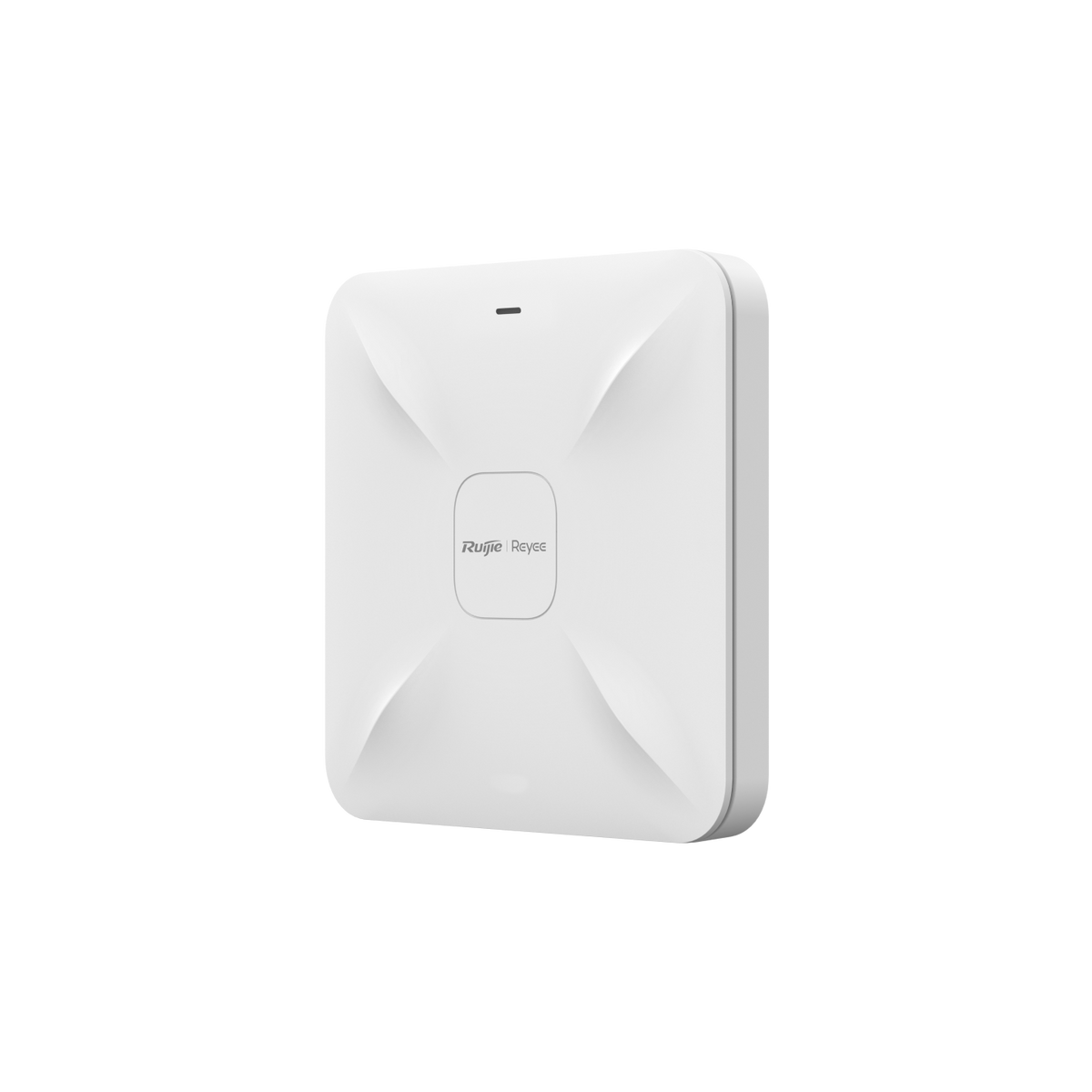

Ruijie RG-RAP2200(F) Wi-Fi 5 Ceiling Access Point, Dual-band, PoE/PoE+ Powered
About this product
The Ruijie Reyee RG-RAP2200(F) is a Wi-Fi 5 dual-radio ceiling access point with 2 x 10/100BASE-T ports and wireless data rates of 866 Mbps on 5 GHz and 400 Mbps on 2.4 GHz. Ruijie's stated applications include hospitality, enterprise, education, government and retail.
Key features
- Wi-Fi 5 dual-radio design with 4 spatial streams (2.4 GHz: 2 x 2, MIMO; 5 GHz: 2 x 2, MIMO)
- Wireless data rates of 866 Mbps on 5 GHz and 400 Mbps on 2.4 GHz
- 802.11ac wave 2 MU-MIMO technology
- 2 built-in omnidirectional antennas per band (2.4 GHz and 5 GHz)
- Powered by DC power adapter or PoE/PoE+, with a maximum power consumption of 12.95 W
- 2 x 10/100BASE-T ports
- Ceiling or wall mounting
- Set up with the Ruijie Cloud APP and maintain the network remotely with Ruijie Cloud
Frequently asked questions
How is the RG-RAP2200(F) powered?
It takes a DC power adapter or PoE/PoE+, through one DC power connector (12 V, 1.5 A) for local power; if both are present, the DC power adapter is preferred.
How many wireless clients can connect?
The maximum number of associated wireless clients is 64 (2.4 GHz), 110 (5 GHz), or 110 with 2.4 GHz and 5 GHz enabled.
Can it be mounted on a wall?
Yes. Mounting options are ceiling or wall.
What is in the box?
A mounting bracket, 2 cross pan head screws, 2 expansion anchors and a quick start guide.
What wired ports does it have?
It has 2 x 10/100BASE-T ports.
What colour is the RG-RAP2200(F)?
It is white.
Specifications
Specifications
| Brand | Ruijie |
|---|---|
| Model | RG-RAP2200(F) |
| Manufacturer Part Number (MPN) | RG-RAP2200(F) |
| Product Type | Ceiling AP |
| Radio design | Dual-radio, 4 spatial streams (2.4 GHz: 2 x 2, MIMO; 5 GHz: 2 x 2, MIMO) |
| 5 GHz wireless data rate | 866 Mbps |
| 2.4 GHz wireless data rate | 400 Mbps |
| Antenna | 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 2 built-in omnidirectional antennas |
| Number of 10/100BASE-T ports | 2 |
| Power supply | DC power adapter, PoE/PoE+ |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) |
| Maximum power consumption | 12.95 W |
| Maximum number of associated wireless clients | 64 (2.4 GHz), 110 (5 GHz), 110 (2.4 GHz and 5 GHz enabled) |
| Maximum number of devices that can be managed | 150 |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting options | Ceiling/Wall |
| Product dimensions (W x D x H) | 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket) |
| Weight | ≤ 0.45 kg (0.99 lbs.) (without packaging materials) |
| Colour | White |
